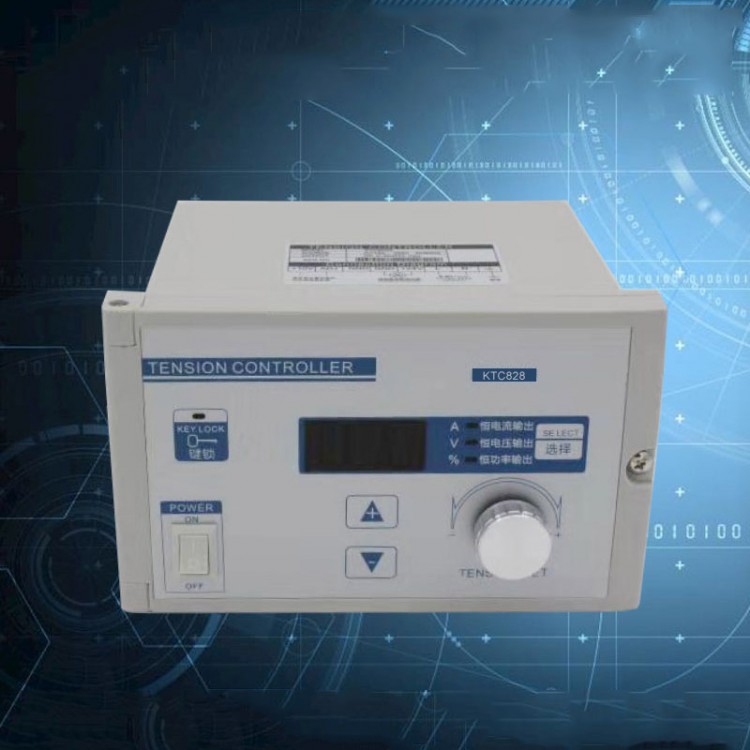

KTC828 Tension Controller Magnetic Powder Brake Clutch Fully Automatic Tension Regulator w/ Sensor

KTC828 Tension Controller Magnetic Powder Brake Clutch Fully Automatic Tension Regulator w/ Sensor

Description:
-KTC828 tension controller is a high-precision, multifunctional, fully digital and intelligent tension controller. It can be combined with a tension detector to form a closed-loop tension control system, or through a switch/encoder to automatically calculate the tension to form an open-loop tension control system, namely It also has the functions of KTC818A and KTC828A, providing users with more free choices.
-KTC-828 tension controller adopts a brand-new graphic LCD display, the display in Chinese and English is clearer, and it sends 0-24VDC control voltage command for magnetic powder clutch/brake, and can also output 0-10V voltage signal to control inverter, servo motor or other actuators perform high-precision tension control on the coil. It is widely used in printing, packaging, paper making, cable, rubber and plastic, electronic batteries, textile printing and dyeing and other industries.

Features:
1. 32-bit high-speed CPU, graphic LCD display, humanized design, easy operation.
2. Choose fully automatic closed-loop tension control or open-loop tension control.
3. Using PI algorithm without overshoot, tension control is fast and stable.
4. Support thickness accumulation and ratio method to measure curl strength.
5. Double station switching, acceleration and deceleration compensation.
6. Dual 24V/4A output, which can directly drive two brakes/clutches.
7. It can output 0-10V, 4-20mA drive inverter/servo motor.
8. Simple installation and debugging, simple tension calibration process.
9. Support standard Moodbus communication protocol, all parameters are open, it is very convenient to connect to PLC/touch screen.
10. Data password protection to prevent misoperation.
11. High and stable force detection, no temperature drift.

Package List:
1 x KTC828 Tension Controller+Sensor
