KUNHONG KH-ATSW100A 7-Port TSN AVB Automotive Ethernet Switch + 5 Connectors for Rosenberger H-MTD

KUNHONG KH-ATSW100A 7-Port TSN AVB Automotive Ethernet Switch + 5 Connectors for Rosenberger H-MTD

Description (KH-ATSW100A):
KH-ATSW100A is a 7-port hybrid switch designed for a variety of automotive applications. The automotive Ethernet switch supports 100/1000Base-TX, 100Base-T1, 10Base-T1S physical layer and vehicle network protocols (VLAN, TSN, etc.). It can be applied to a variety of scenarios such as automotive Ethernet multi-device networking, multi-device data acquisition/analysis/simulation/monitoring, automotive Ethernet gateway, ECU/radar and other sensor communication testing and debugging.

Features:
- TSN automotive Ethernet switch
- Replaceable T1 connectors: The detachable T1 interface makes it more flexible to use and more convenient to wire. The threaded connection is firm and reliable. Branch-free and excellent signal quality.
- VLAN/Mirror
- Precise time synchronization
- PPS output

Typical Applications:
- Automotive Ethernet multi-device networking
- Data acquisition and debugging of cameras/radars and other sensors
- ECU/Domain control Ethernet debugging
- Vehicle network communication packet cap-ture and analysis

Package Included:
- 1 x Switch main unit
- 1 x 12V power adapter
- 1 x Type-C data cable
- 1 x CAT6 Ethernet cable

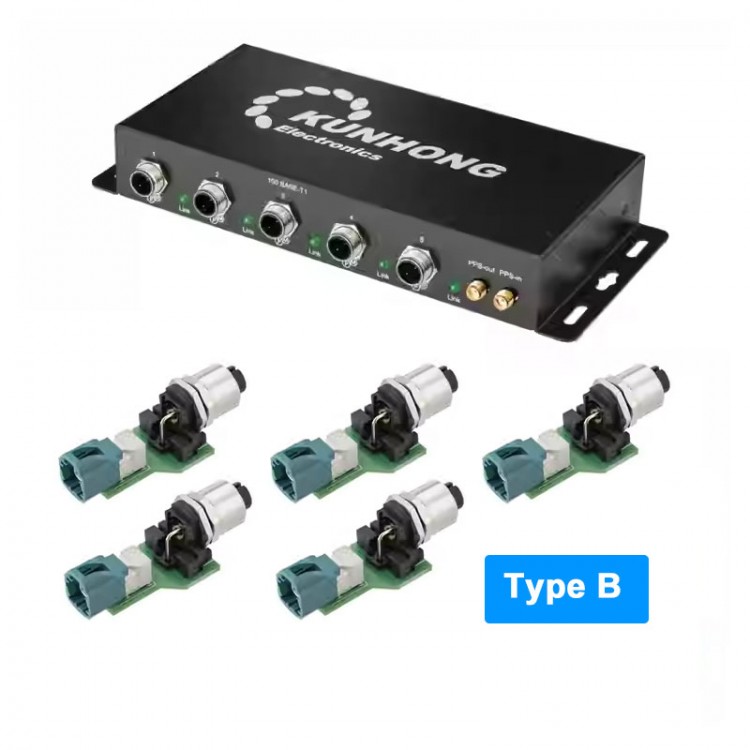

- 5 x Connectors for Rosenberger H-MTD

Packaging Details:
- Weight: 1.55kg

Note:
- 2-year warranty is provided for the main unit.
- Automotive Ethernet harness is not included in the package.
- Battery is not included.
