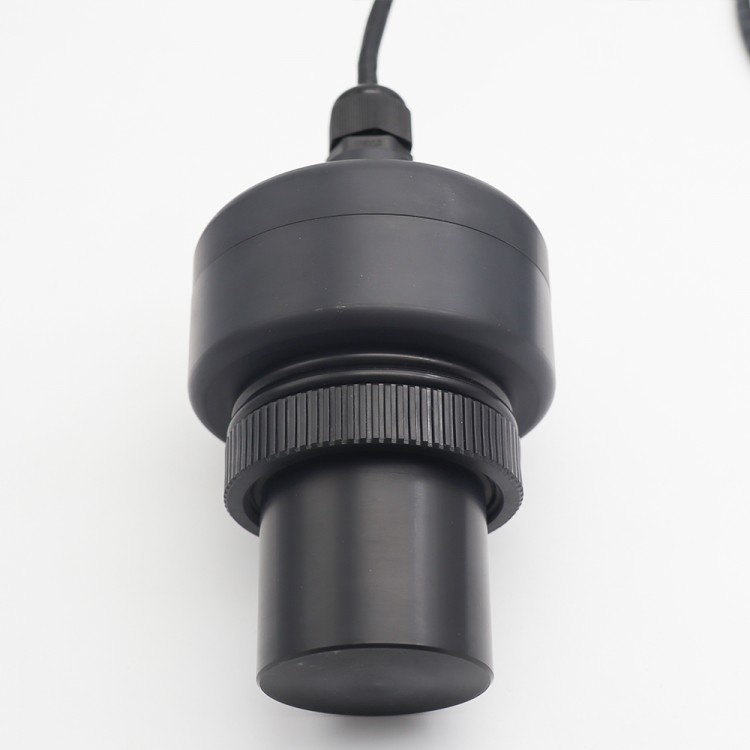

KUS620 Ultrasonic Water Level Sensor Sensitive Ultrasonic Level Meter 600-8000MM/2-26.2FT Range

KUS620 Ultrasonic Water Level Sensor Sensitive Ultrasonic Level Meter 600-8000MM/2-26.2FT Range

Features:
- High sensitivity
- Fully sealed
- IP68 protection level
- Corrosion-resistant shell. Suitable for corrosive media and applications
- With strong anti-interference and convenient interface to connect with related facilities
- Lightweight, non-scaling. Not scale or contaminate the medium
- Nontoxic. Easy to maintain
- Low power consumption

Specifications:
- Model: KUS620
- Measuring range: 600-8000mm/2-26.2ft
- Dead zone: 0-600mm/0-2ft (Within 600mm/2ft is an unstable working area, it is not recommended to work in this range)
- Power Supply: 3.3 to 14V DC, Ripple 10 %SS
- Working current: ≤ 45mA (Fastest measurement speed); Low power consumption version; sleep power consumption is less than 0.3mA; power consumption when sending is 20mA (less than 2ms), receiving power consumption is not more than 5mA (less than 150ms)

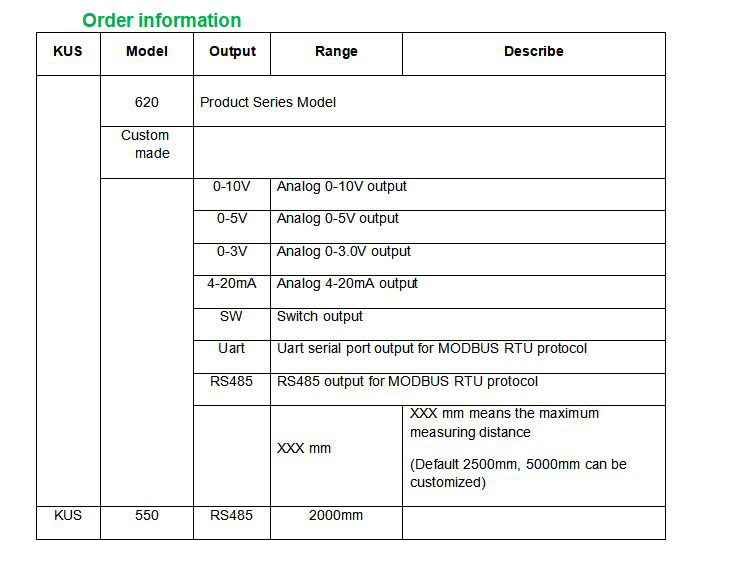

- Optional output signals: 1. Programmable analog output 0-10V; 2. RS485 output; 3. Uart serial output; 4. 4-20mA output; 5. Switch output
- Measurement accuracy: ≤ 1%
- Temperature compensation: Yes

Working Conditions:
- Working temperature: -40 to 85℃ (233 to 358K)
- Storage temperature: -40 to 85℃ (233 to 358K)

Others:

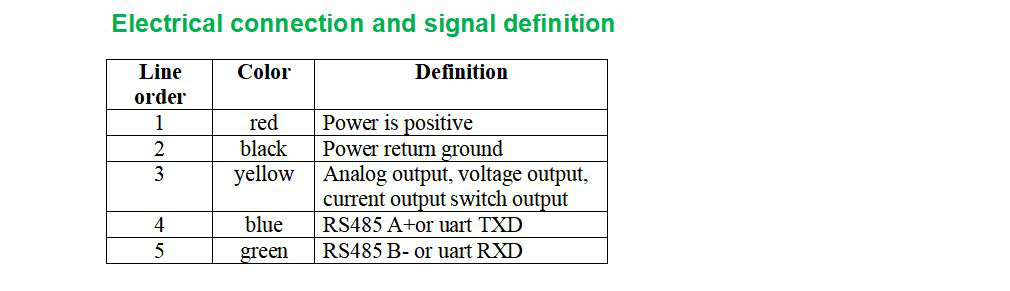

- Electrical connection: 5-wire cable
- Protection level: IP68
- Shell material: PVC/PVDF/PTFE (Default PVC)

Applications:
- Water and sewage treatment, such as pump room, water collection well, biochemical reaction tank, sedimentation tank
- Electric power and mining, including mortar pool, coal slurry pool, and water treatment

Attention:
- When installing the probe, it is recommended that the probe should not be in contact with the metal bracket, please use a rubber ring to separate it.

Package Included:
- 1 x Ultrasonic Level Meter

Note:
- Please leave a massage of the output signal you want when purchasing. Thank you!

Sensor Function:
Analog

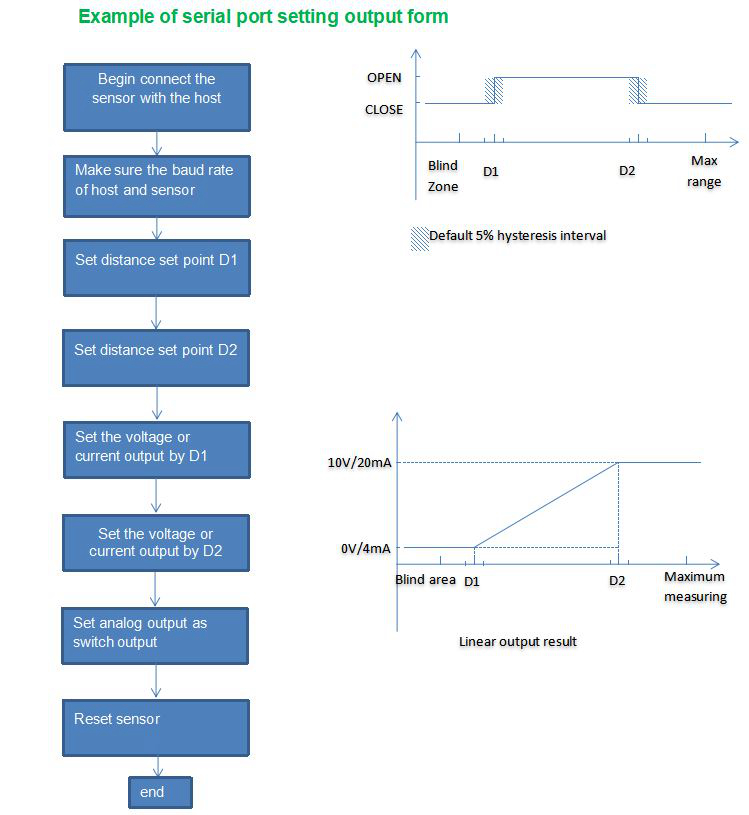

The analog output can be set via RS485, and the sensor can work in 8 modes. The specific reference is as follows:
Step 1: Connect to the host computer through the serial port debugging assistant or modus debugging assistant.
Step 2: set a near point reference distance point.
Step 3: set a far point reference point
Step 4: set the output voltage or current of the near-point reference point.
Step 5: Set the output voltage or current of the remote reference point.
Step6: set the analog output as the switch characteristic selection.
Step 7: set the analog output as a linear output or switch output option.
Step 8: reset the sensor to make the new parameters take effect.

8 Working Modes of the Sensor:
1: Open window mode by default
2: The window mode is closed by default
3: Single point mode is turned on by default
4: Single point mode is turned off by default
5: Single-point hysteresis mode is turned on by default
6: Single-point hysteresis mode is turned off by default
7: The presence or absence detection mode is turned on by default
8: The presence or absence detection mode is turned off by default

485 Output Data:
485 output data is in format for MODBUS-RTU. Refer to the software instruction manual for details.
