KV_CORS25516 Color Recognition Sensor Module RGB 3-Color Illumination Color Temperature Detection TTL Output

KV_CORS25516 Color Recognition Sensor Module RGB 3-Color Illumination Color Temperature Detection TTL Output

Description:
- KV_CORS25516 is an ultra small volume color recognition module. It can perform color, color temperature, and illumination detection with a working voltage of 5V.

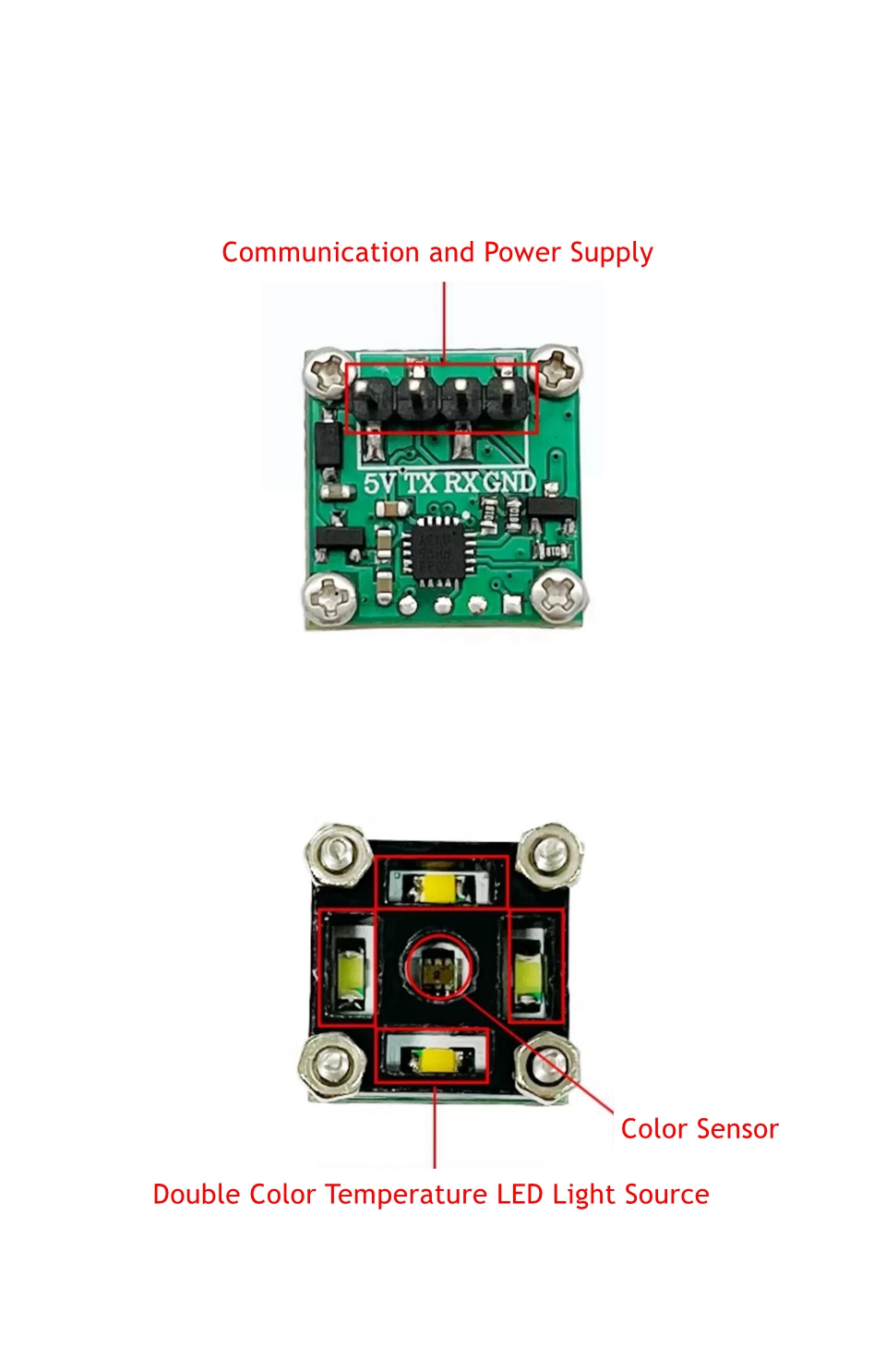

- Adjustable baud rate for serial communication, and dual color temperature LED light source on board. Its working principle is that the onboard LED emits light, and when it shines on the object being tested, the reflected light is detected and recognized by the sensor to identify the color.
- The sensor chip used in the module integrates an IR blocking filter internally, which can minimize the IR spectral composition of incident light and accurately measure color. High sensitivity, wide dynamic range, and infrared blocking filter make it an ideal color sensor solution for use under various lighting conditions and through attenuation materials. It can be applied in fields such as light color temperature measurement, RGB LED consistency control, health and fitness, and industrial process control.

Specification:
- Model: KV_CORS25516
- Module type: color recognition module
- Power supply: 5V
- Static power consumption: 2mA (Min: 2mA; Typ:10mA; Maxi: 40mA
- Measuring range: 0 - 255 RGB
- Response time: 10Hz

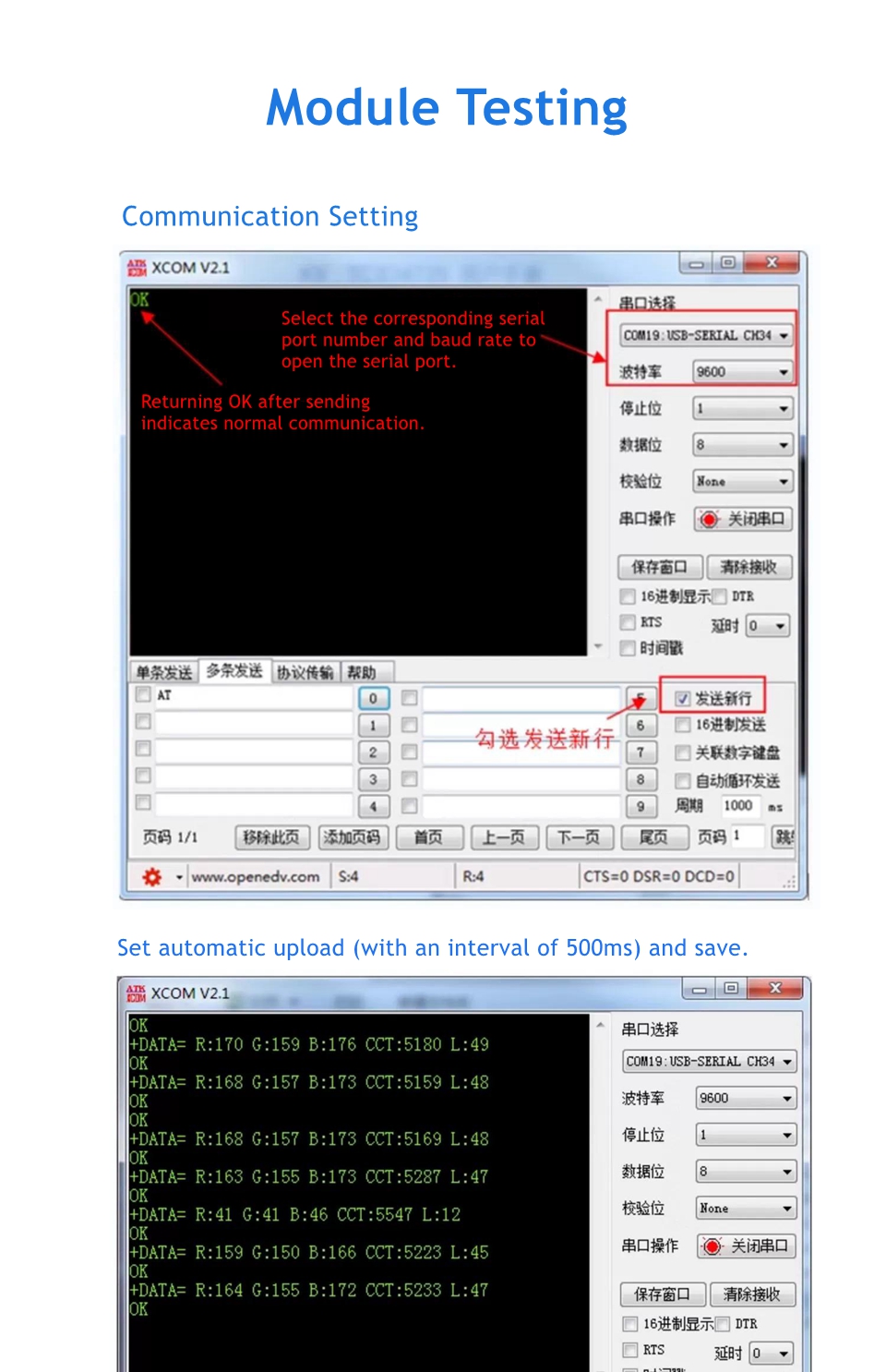

- Communication protocol: AT commands
- Communication level: TTL
- Baud rate: 9600, 19200, 38400, 57600, 115200, 230400, 460800 (8bits, none parity; 1 stop bit)
- Module weight: 3g

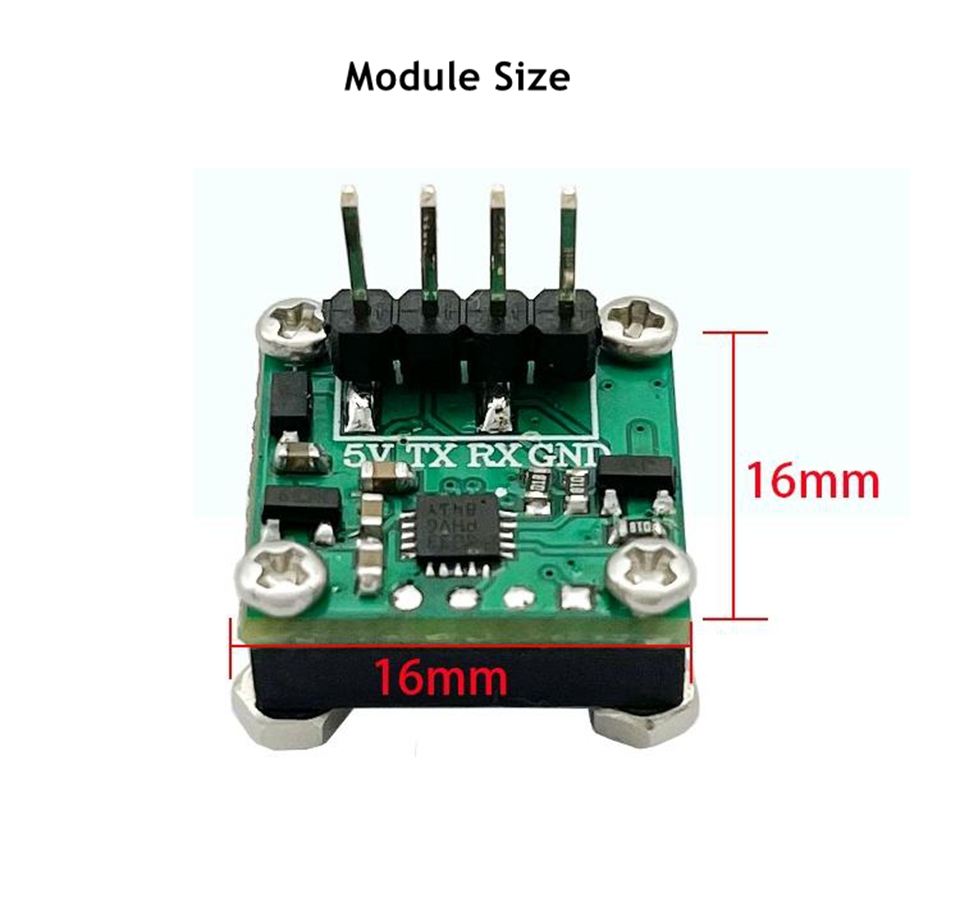

- Product size: 46 x 33mm
- Main chips: sensor, single chip, power supply
- RGB frequency: 10 - 50000Hz
- Module features: color, color temperature, illuminance detection, adjustable baud rate, ultra small volume
- Application: temperature measurement of light color, RGB LED consistency control, health and fitness, industrial process control, etc.

Precaution:
- Please send a save command after modifying the module parameters.
- To improve accuracy and avoid unnecessary interference, please ensure stable power supply.

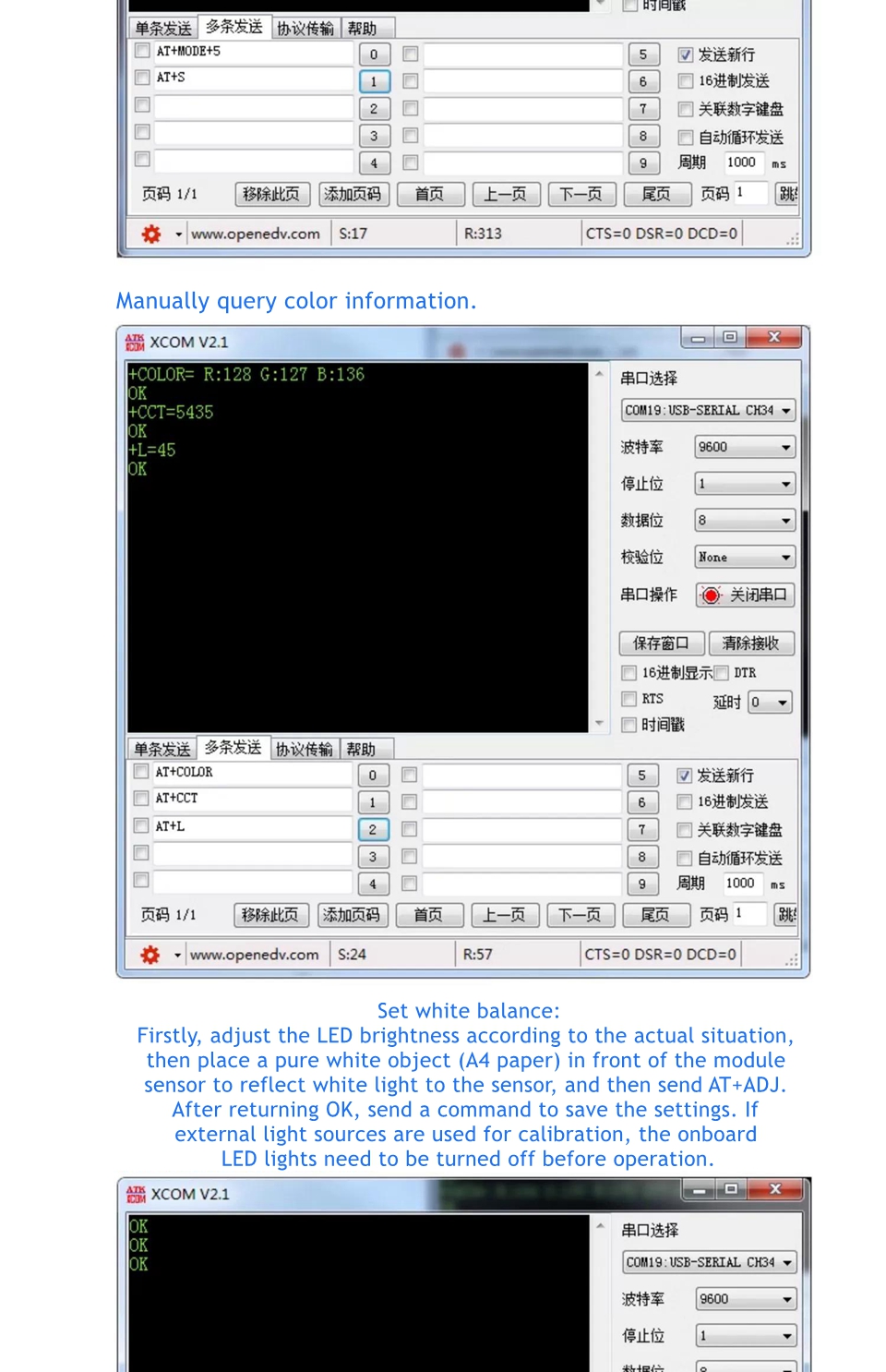

- If the color measurement is not accurate, white balance calibration can be performed. The specific method is as follows:

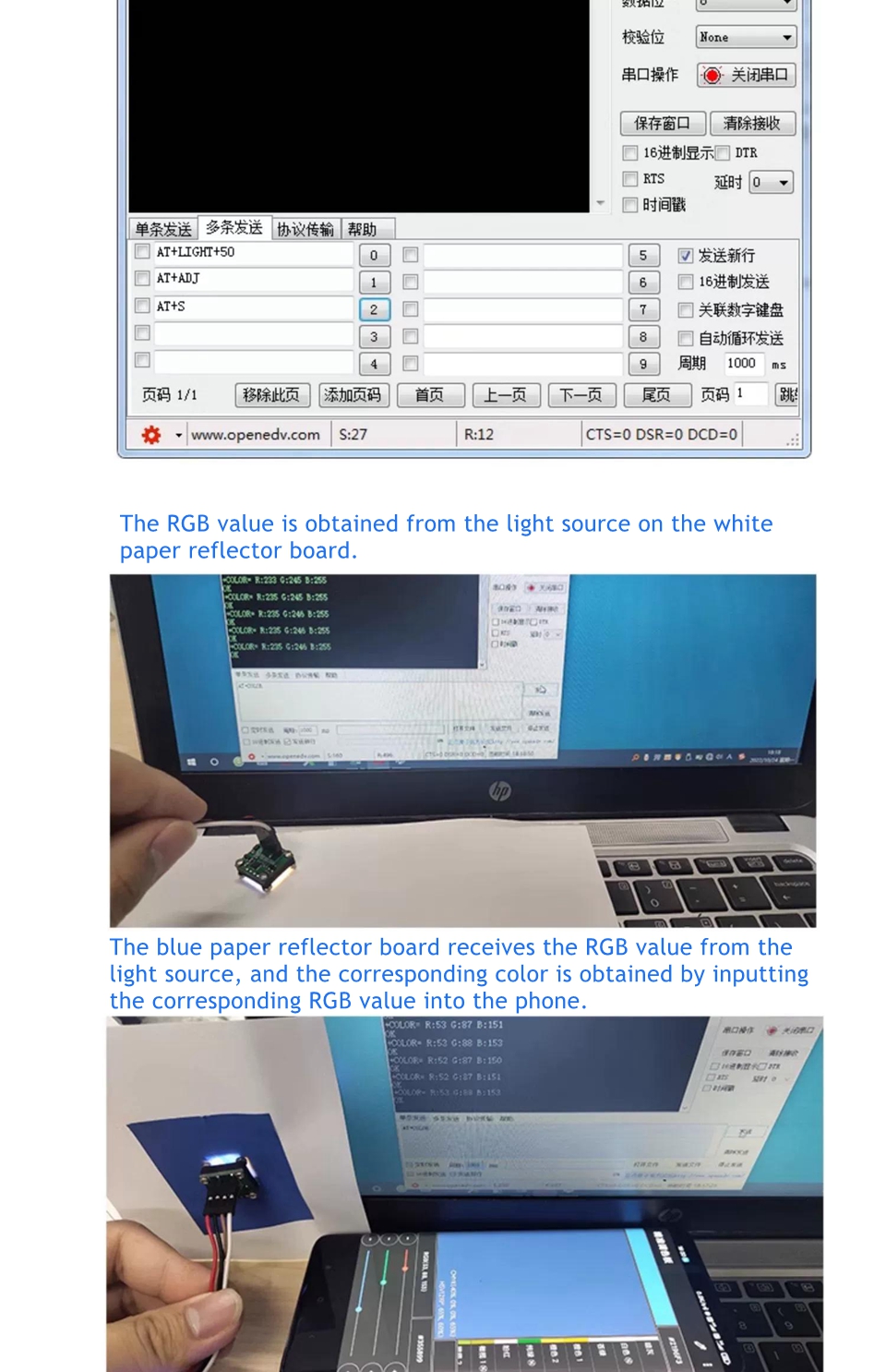

  Send the command to turn on the LED on the module board, place white paper above the sensor to reflect white light to the sensor, then send the command "AT+ADJ". After returning OK, the calibration is completed, and finally send the command "AT+S" to save the parameters.

Package Included:

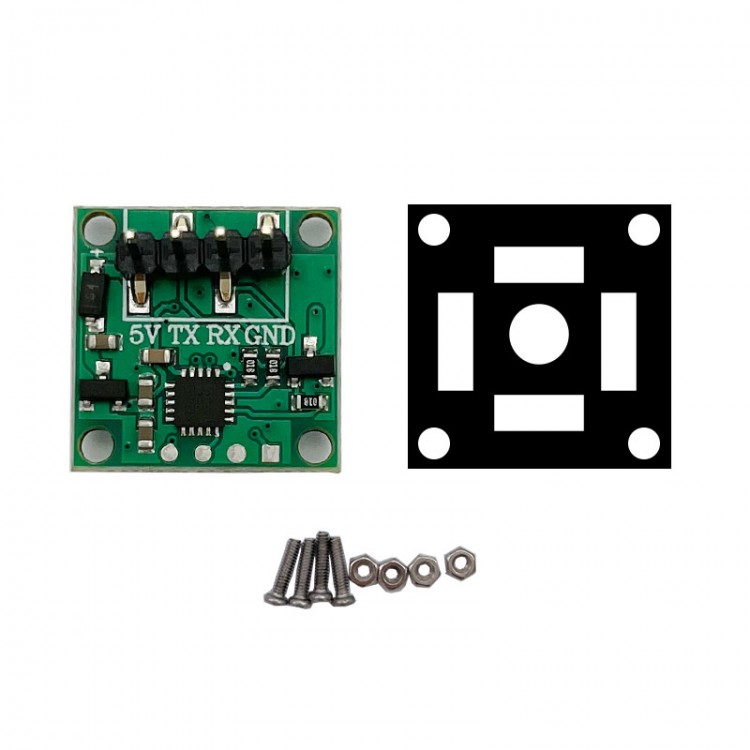

- 1 x Color Sensor Module
