KV_SGP30 TVOC CO2 Carbon Dioxide Sensor Gas Sensor Module Air Quality Temperature Humidity Sensor

KV_SGP30 TVOC CO2 Carbon Dioxide Sensor Gas Sensor Module Air Quality Temperature Humidity Sensor

Attention:
(1) The interface of our module is clear and the performance is stable. Please combine the information provided by our store to do functional verification corresponding to the experimental conditions.
(2) The basic parameters of this module are mentioned below. Schematic diagrams and engineering files are not provided. If you has operational problems, please consult customer service.
(3) Before using the module, please read the information of this module, understand the power supply and usage restrictions, and avoid damage to the module due to improper operation.
(4) Our store modules guarantee to provide real module parameters, functions and pictures. All modules have passed inspection before shipment.

Description:
This CO2 sensor module can easily read CO2 and TVOC values through AT commands. This module also has three different threshold modes to choose from.

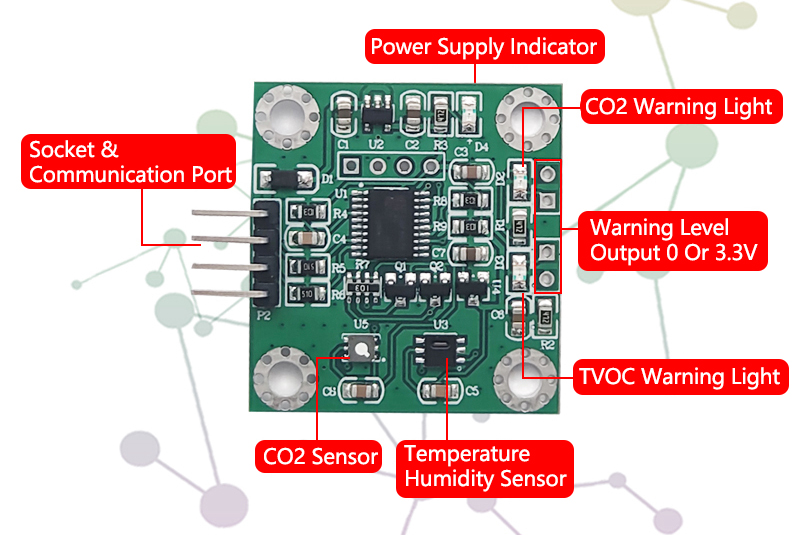

The module integrates with a SGP30 gas sensor and a SHT20 temperature and humidity sensor, which can measure the total VOC signal (TVOC), CO2 equivalent signal (CO2eq), temperature and humidity. The module also provides baseline settings and humidity cross sensitivity compensation. It can be widely used in fields such as smart home, home appliances, IoT and the like.

Specifications:
- Module model: KV_SGP30
- Module type: Environmental measurement
- Supply voltage: 5V
- Static power consumption: 60mA
- Communication protocol: AT command
- Communication level: TTL-3.3V
- Baud rate: 9600
- CO2 measurement range: 400~60000ppm
- TVOC measuring range: 0~60000ppb
- CO2 resolution: 0ppb~2008ppb (1ppm); 1479ppm~5144ppm (3ppm); 5144ppm~17597ppm (9ppm); 17597ppm~60000ppm (31ppm)
- TVOC resolution: 0ppb~2008ppb (1ppb); 2008ppb~11110ppb (6ppb); 11110ppb~60000ppb (32ppb)
- Sampling rate: 1Hz
- Temperature measurement range: -40.0 to 125.0℃
- Humidity measurement range: 0.0~100.0%RH (non-condensing)

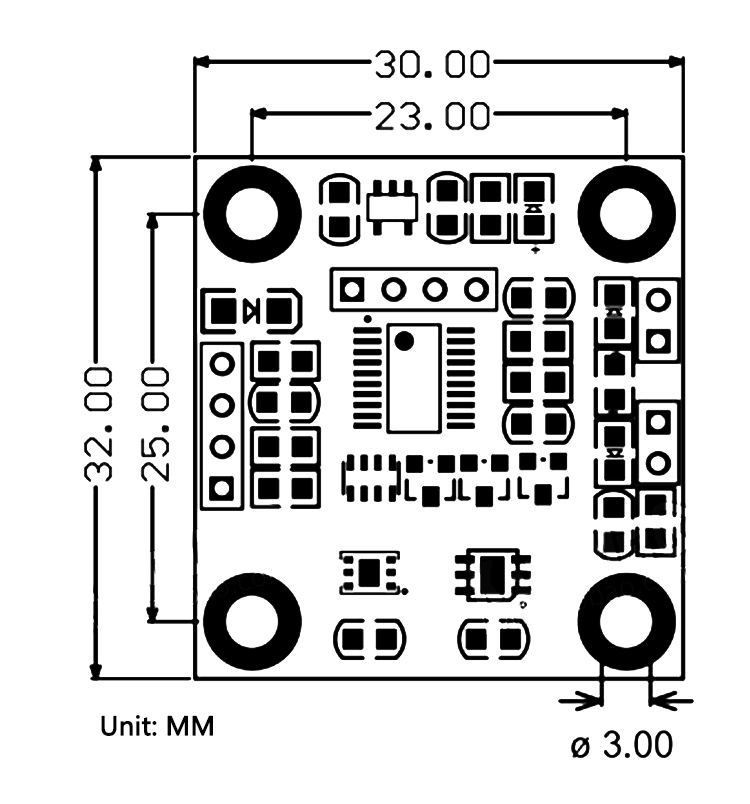

- Module size: 30 x 32mm/1.2 x 1.3" (LxW)
- Module weight: 3.8g

Package Included:
- 1 x Set of Module

Precautions:
(1) Because the carbon dioxide sensor has a micro heating plate inside, the temperature measurement will be higher than the ambient temperature, which is normal.
(2) After sending , the module will use STH20 data to automatically perform humidity compensation, and the sending interval should be at least 1S.
(3) After sending , the module will automatically set the baseline, and the baseline should be set at least once every 7 days. Before setting the baseline, make sure that the sensor has been running for more than 12 hours.
