Product Details:
- Multiple interfaces: 3 input interfaces: 2 x HDMI for computers, 1 x Interface for PS2 keyboard; 4 output Interfaces: 1 x HDMI output for TV/Projector, 3 x USB ports for mouse/printer/U disk/camera/projector
- Support synchronous control 2 computers by one keyboard and one mouse.
- Support 1.5Mbps low speed and 12Mbps full speed USB transmission.
- Support Win98/ME/2K/XP/2003/Vista/Win7/Linux/Apple MAC operating system.
- Downlink USB host port supports USB keyboard and USB mouse mix plug, don't need to specific port.
- Support PS2 keyboard.
- Support single round robin switch, many specific key switch and keyboard shortcuts switch.
- Support automatic switch mode, easy to monitor, and could adjust time interval.
- Support switch buzzer reminder.
- Support LED indicator, point to the current selected PC.
- Support light automatic recovery during the switch state of the keyboard.
- Support HD video, high quality, clear and up to 1080P HDTV resolutions.
- With outstanding Antistatic and anti-jamming.
- HDMI port supports HDMI 1.4 and supports 4K resolutions
- Elaborate design for circuit board integrity, HDMI signal has better shielding effect
Specifications:

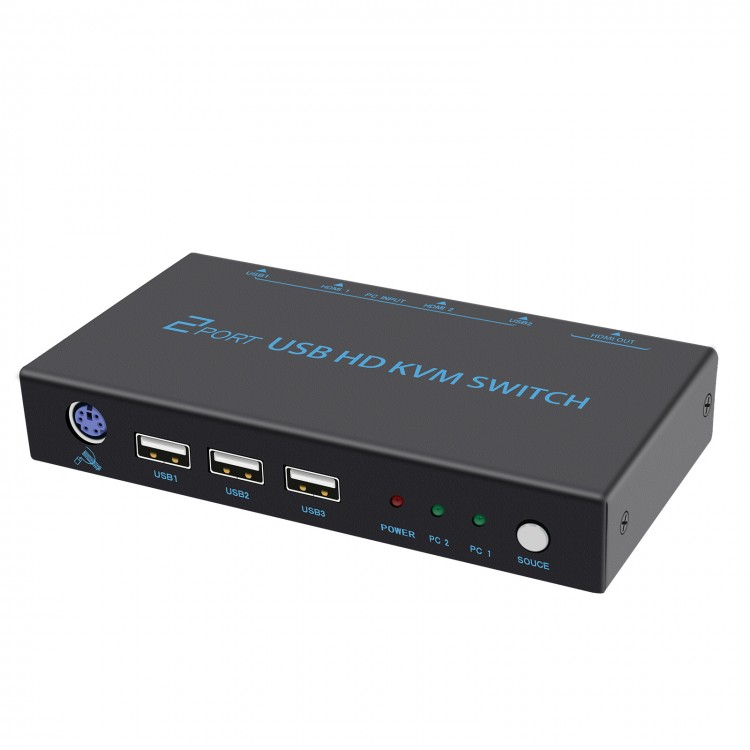

- Item Name: KVM Switcher
- Model No: OT-KVM02
- Housing: Zinc alloy material
- Input Interface: 2 x HDMI for computers, 1 x Interface for PS2 keyboard
- Output Interface: 1 x HDMI output for TV/Projector, 3 x USB ports for printer/U disk/camera/projector
- Video output: 1CH HDMI output
- PS2 keyboard input: 1CH
- Power supply: USB DC 5V/1A
- Consumption: <5W
- Support HDMI: HDMI 1.4
- Support HDCP: HDCP1.2
- HDMI resolution: 4K/1080p/1080i/720p/720i/576p/576i/480p/480i
- Support video color format: 24 bits/deep color 30 bits / deep color 36 bits
- Support audio format: DTS/HD/Dolby-tureHD/LPCM7.1/ DTS/Dolby-AC3/DSD
- Max transmission rate: 3.4Gbps
- Audio format: Left and right stereo audio
- Input and output TMDS signal: 0.5-1.5Vp-p(TMDS)
- Input and output DDC signal: 5Vp-p(TTL)
- Input cable length: ≤7m (AWG26 HDMI 1.4 standard cable)
- Output cable length: ≤15m (AWG26 HDMI 1.4 standard cable)
- Electrostatic protection: 1a contact discharge level 3; 1b air discharge level 3; Executive standard: IEC61000-4-2
- Working temperature: 0~50℃
- Storage temperature: -20℃~70℃
- Humidity (no congeal): 0~95%
- MTBF: >20000 hours
- Size: 145mm×72mm×22mm
- Gross Weight: 0.75kg
Package Included:
- 1 x HDMI Switcher
- 1 x Manual
- 2 x USB Cables
