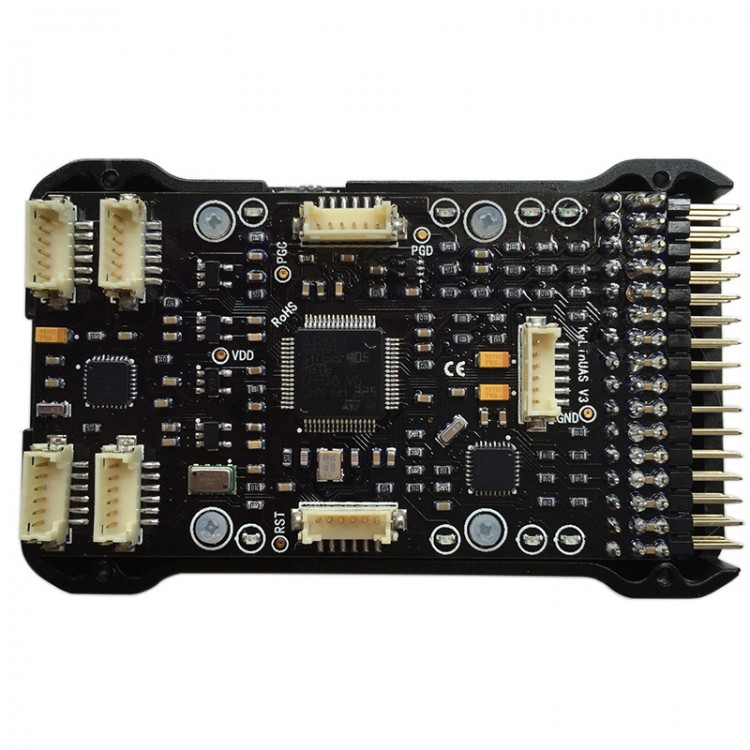

KYLINV3 Analog Version Flight Control STM32F405 for RC Multicopter
Features:
- CPU: STM32F405RGT6 Cortex M4, 168MHz main frequency, 1024K Flash, 192K RAM
- Onboard 3 three-axis gyroscope ADXRS620
- Onboard three-axis accelerator MXR9150
- Onbaord geomagentic sensor HMC983
- Onboard barometer MS5611
- Onboard flight data recorder, default baud 57600bps
- Onboard PPM encoder, can directly connect with receiver,.
Interface:
- 1* SBUS interface
- 1* 4 channel camera control interface
- 1* Micro USB
- 1* GPS
- 1* Telemetry
- 8* Servo PWM output
- 1* ASI Interface
- 1* External log interface
- 2* Analog input channel, can be used as common IO
- 8* LED indicator
- 1* buzzer interface(5V, Max current 500ma)
Specification:
- Power supply: 35V (2S-8S Lipo)
- Board size: 70*40.5mm
- Flight control size: 81.3*49.3*26.6mm
- Weight: 100g
- Includes 1 KYLINV3 analog version flight control only
Note: Max input of all ADC is 3.3V. Do not exceed, or the flight control will be broken.
