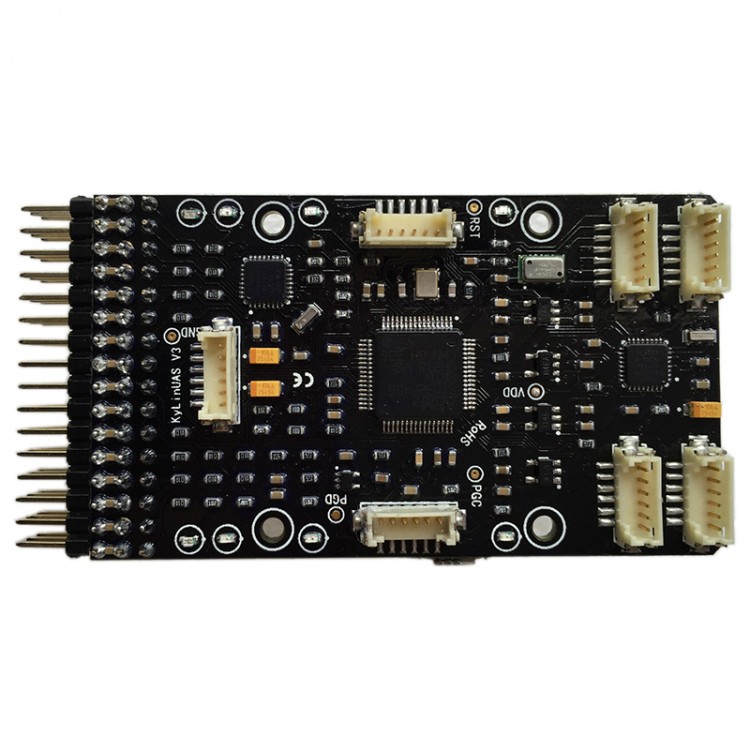

KYLINV3 Digital Version Flight Control STM32F405 for RC Multicopter

KYLINV3 Digital Version Flight Control STM32F405 for RC Multicopter

Features:
- CPU: STM32F405RGT6 Cortex M4, 168MHz main frequency, 1024K Flash, 192K RAM
- Onboard three-axis gyroscope, three-axis accelerator MPU-6000
- Onbaord geomagentic sensor HMC5883L
- Onboard barometer MS5611
- Onboard flight data recorder, default baud 57600bps
- Onboard PPM encoder, can directly connect with receiver,.

Interface:
- 1*SBUS inferface
- 1* 4 channel camera control interface
- 1* Micro USB
- 1* GPS
- 1* Telemetry
- 8* Servo PWM output
- 1* ASI Interface
- 1* External log interface
- 2* Analog input channel, can be used as common IO
- 8* LED indicator
- 1* buzzer interface(5V, Max current 500ma)

Specification:
- Power supply: 35V (2S-8S Lipo)
- Board size: 70*40.5mm
- Flight control size: 81.3*49.3*19.6mm
- Weight: 90g
- Includes 1 KYLINV3 digital version flight control only

Note: Max voltage input of all ADC is 3.3V, do not exceed or the flight control will be broken.
