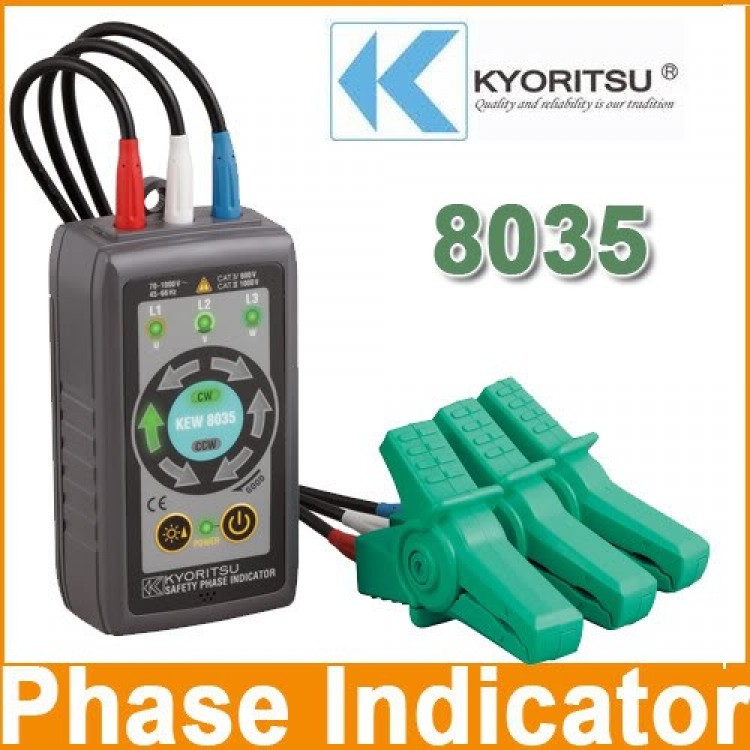

Kyoritsu 8035 45~66Hz Non﹣Contact Safety Phase Indicator Tester
Technology permits safe testing, without the need of direct contact between probes and live wires and the insulated crocodile clips can clip insulated cables from φ2.4 to 30mm. Phase rotation is indicated by the rotary illumination of LEDs and logical audible tones.
Main Features:
- Technology permits safe testing, without the need of direct contact between probes and live wires.
- The insulated crocodile clips can clip insulated cables from φ2.4 to 30mm.
- Phase rotation is indicated by the rotary illumination of LEDs and logical audible tones.
- The instrument can be fixed to a metal panel via the magnet on the back side.
- Wide measuring range for 3 phase installations from 70V to 1000V AC.
- Super brightness function permits clear LED's indication also in sunshine.
- Complies with IEC 61010-1 CAT.IV 600V and CAT.III 1000V.
Specifications:
|
Functions |
Phase rotation (Clockwise or Counter Clockwise),Presence of open phase |
|
Detection method |
Electrostatic induction |
|
Measuring voltage range |
From 70 to 1000V AC phase to phase (sine wave, continuous input) |
|
Clamp diameter range |
From φ2.4 to 30mm insulated cables |
|
Measuring frequency range |
45 to 66Hz |
|
Phase rotation |
Clockwise: |
|
Visual indication |
Via LEDs with Super brightness function |
|
Battery voltage warning |
Power LED blinks if battery voltage is too low. |
|
Operating conditions |
Temperature/Humidity Ranges -10 to 50ºC, 80% (no condensation) |
|
Storage conditions |
Temperature/Humidity Ranges -20 to 60ºC, 80% (no condensation) |
|
Applicable standards |
IEC 61010-1 CAT.IV 600V, CAT.III 1000V Pollution degree2, |
|
Power supply |
Alkaline battery (LR6) ×4 |
|
Dimensions |
112(L) × 61(W) × 36(D) mm |
|
Weight |
Approx. 380g |
Package Including:
- 1 x Kyoritsu 8035 45~66Hz Non-Contact Safety Phase Indicator Tester
- 1 x Original Package
