| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $165.19 | $161.82 | $156.76 | $150.02 | Contact US |

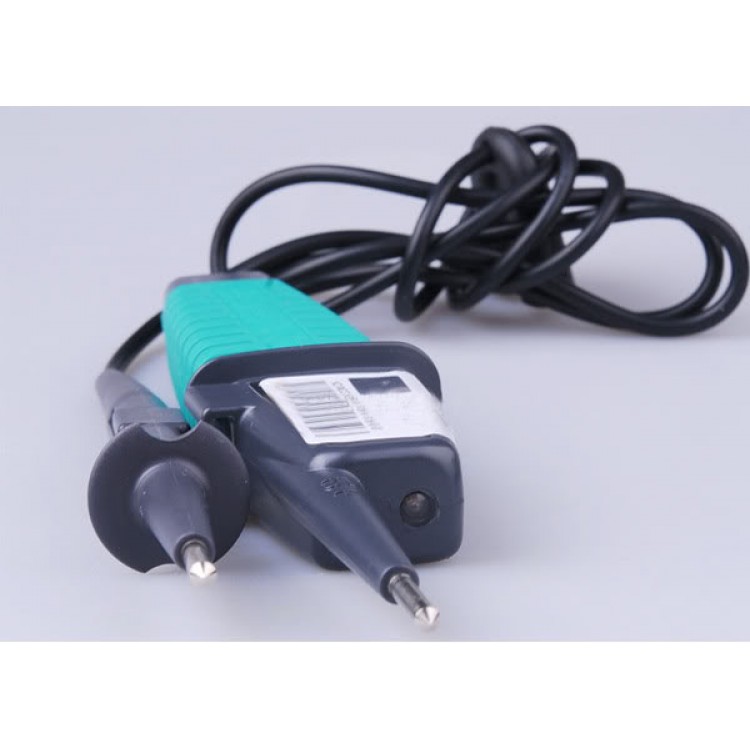

KYORITSU VOLTAGE TESTER JAPAN MODEL KEW 1700
Since it's founding in 1940, Kyoritsu has made customer satisfaction and providing high quality products and services our top priorities.
Our emphasis on customer support has helped us to build strong and lasting customer and distributor relationships that continue today. State of the art electrical measurement technology products are the backbone of our company's business. Our wide line of testers has contributed to technological developments and industrial infrastructures worldwide. In the future companies will be faced with significant changes and will need to be adaptable to the requirements brought about by new technologies. Also, we recognize the importance of being responsible with regard to global-environmental issues that affect all of us. It is our sincere hope, to not only sustain our business development but also look to the future for next generation. For that reason Kyoritsu pledges to embrace technologies and manufacturing processes that will contribute to environmental solutions.
Features:
- Voltage Tester measuring up to 690V AC/DC
-Continuity tester with LED and Buzzer
-Phase rotation indicator
-Single pole phase indicator
-Live circuit warning LED
-Variable probe tips, 1.6mm or 4mmØ
-with GS 38 option
-Pen light function for use in dark spaces
-Auto power OFF
-Polarity indication
-Low battery warning
-Double moulding gives comfortable grip
-Probe cover protects user and probe tips
-IP65 (IEC 60529)
-Detects voltage even without batteries
-Designed to meet international safety standards IEC 61243-3/IEC 61010-1 Measurement Category (CAT.) IV 600V
|
Voltage Test |
|
|
Voltage Range |
12~690V AC/DC |
|
Nominal Voltage |
12/24/50/120/230/400/690V |
|
Response Time |
<0.5s at 100% of each nominal voltage |
|
Peak Current |
ls<3.5mA (at 690V) |
|
Internal Battery Consumption |
Approx. 33mA (battery 3V, measuring 690V AC) |
|
Battery Life |
Approx. 2500 operations (30s ON/240s OFF duty) |
|
Single-Pole Phase Test |
|
|
Voltage Range |
100~690V AC (45~100Hz) |
|
Phase Rotation Test |
|
|
System |
Three-phase 4-wire system |
|
Phase Range |
120±5 degree |
|
Continuity Test |
|
|
Detection Range |
0~400kΩ+50% |
|
Test Current |
Approx. 1.5μA (battery 3V, 0Ω) |
|
Internal Battery Consumption |
Approx. 30mA (battery 3V, 0Ω) |
|
General |
|
|
Operating temperature and humidity ranges |
-10~55ºC, max 85% RH |
|
Storage temperature and humidity ranges |
-20~60ºC, max 85% RH |
|
Applicable Standard |
IEC 61010-1 CAT.III / IV 600V |
|
IP Rating |
IP65 (IEC 60529) |
|
Power Source |
LR03 1.5V×2 (3V) |
|
Dimensions |
241.5(L)×68.5(W)×28.5(D) mm |
|
Weight |
230g (including batteries) |
Package Includes:
- 1 x Kyoritsu 1700 Tester
- 2 x Batteies
