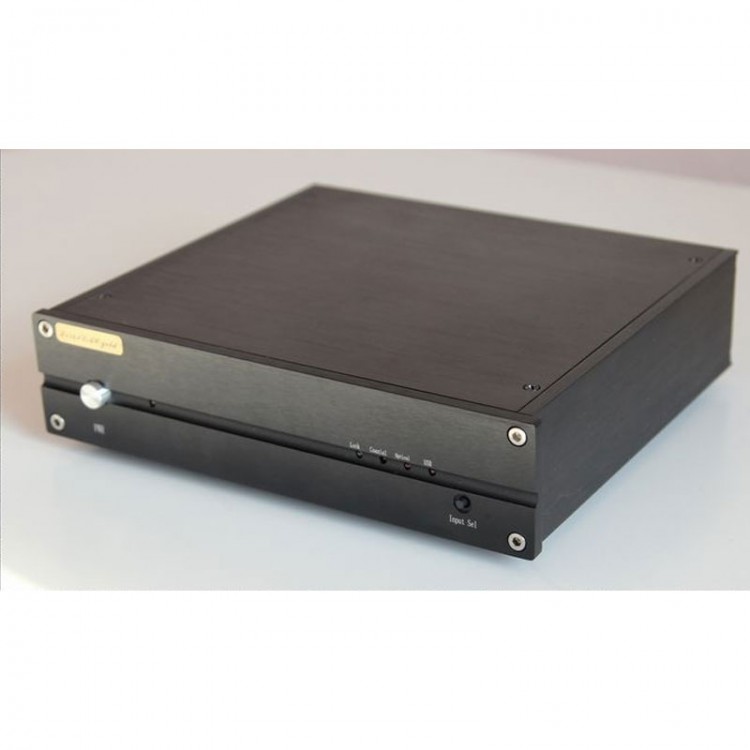

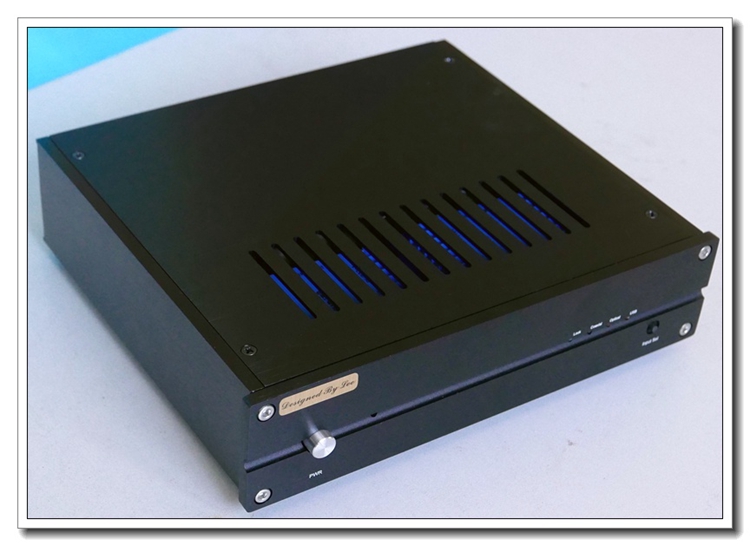

L1387DAC 8Xse Eight Parallel TDA1387 HiFi DAC Decoder with Optical Fiber Coaxial OTG Interface

L1387DAC 8Xse Eight Parallel TDA1387 HiFi DAC Decoder with Optical Fiber Coaxial OTG Interface

Features:

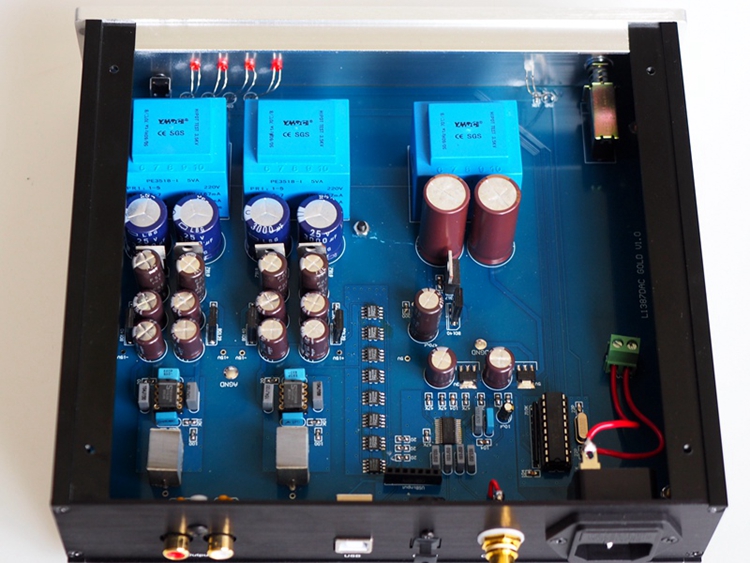

- Three high-quality sealed transformers are responsible for the power supply of digital and analog parts, respectively, independent rectifier regulator.
- MCU soft control digital receiver: Microcomputer dynamic optimization parameters, state adjustment receiver chip (CS8416) phase detector, so that it automatically adapts to the input code rate, minimizing the jitter. At the same time to achieve a touch of a key cycle to select the input source.
- Eight TDA1387 chips are used.
- The digital part of the two series voltage regulator, MCU, receiver chip power independent, to ensure the lowest jitter.
- Shunt regulator to analog DA chip.
- Use two single op amps for I/V conversion and LPF low-pass filtering. The op amp has a socket.
- Perfect wiring, digital, analog multi-level decoupling, strict distinction.

Parameter:

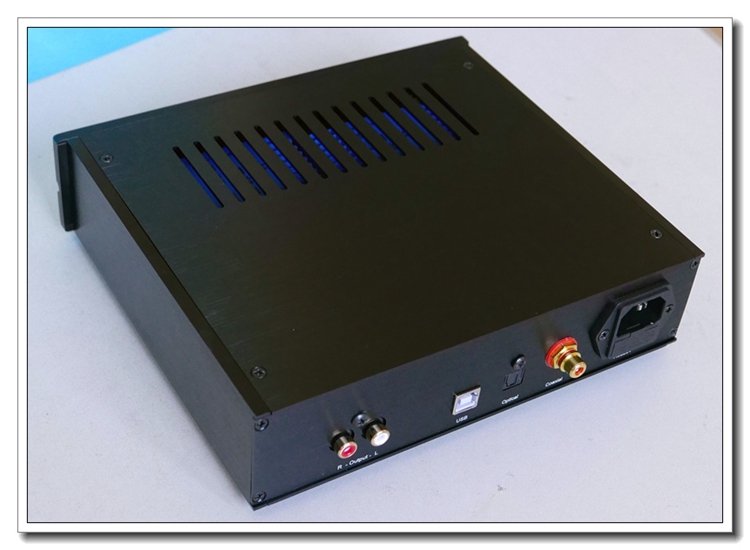

- Digital input: coaxial, fiber optic, USB ( it need to buy a sub card separately)
- Analog Output: RCA Analog Output
- Digital input bit rate: 44.1K -192K
- Analog output level: 2.2Vrms
- Power supply: AC220V
- Color: Black front or silver front panel
- Volume: 220(W) x 52(H) x 191(D)mm
- Net weight: about 2.8 kg

Package Included:
- 1 x Decoder
