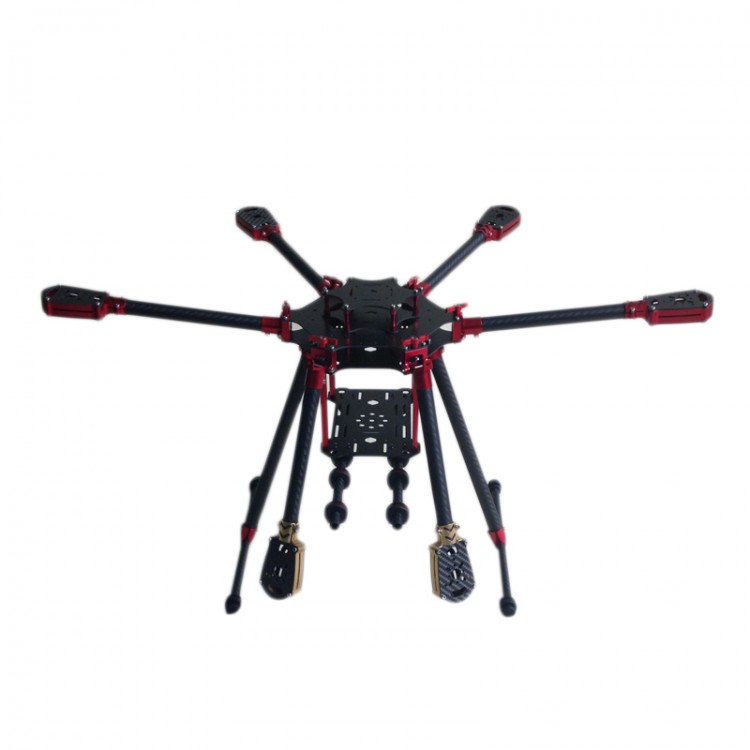

L700 3K Aluminum Carbon Fiber Folding Umbraller Hexacopter Frame for Flight Control Multicopter
Parameters:
- Wheelbase diameter: 700MM
- Diameter: 16mm
- Center plate diameter: 185mm
- 3K Carbon fiber board thickness: 1.5mm
- Two layer center plate distance: 22mm
- Rotor blade size: 13 inch propeller
- Empty copter weight: 720g
- The frame size after folding: height 380mm*width 340mm*top width 10mm
- Tripod fround tube length: 250mm
Specification:
- Matt and twill 3K carbon aluminum alloy frame
- The angle for the arm: 7 degree
- Width of the tripod: 300mm
- Height for placing battery: 100mm
- Width of the battery plate:90mm
- Length of the battery plate:150mm
- The hole distance for mounting the motor: 14mm-28mm
- Motor base size: length 64mm*width 64mm*thickness 14mm
- ESC can be placed in the motoe base
- The diameter for maximum mounting carbon tube: 16mm
Note: No electronic accessories, but empty hexacopter frame only
Package included:
- 1 x L700 Hexacopter Frame
