LA-2PLUS Audio Signal Isolator Speaker Tester Audio Noise Isolator Aluminum Housing
Applications:
Fits for CD player, car music, Bluetooth music, notebook music, professional multimedia player, home audio system, professional audio audio system, audio power amplifier, splitter, audio processor, digital effects, audio switcher, audio monitor, Simultaneous interpretation, karaoke system, video conference and other audio and audio transmission systems.

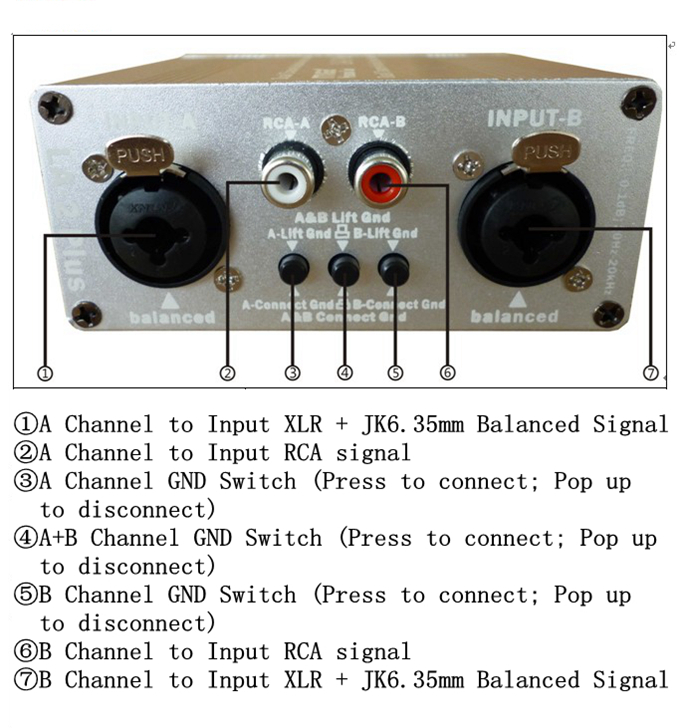

Introduction of Input Ports:

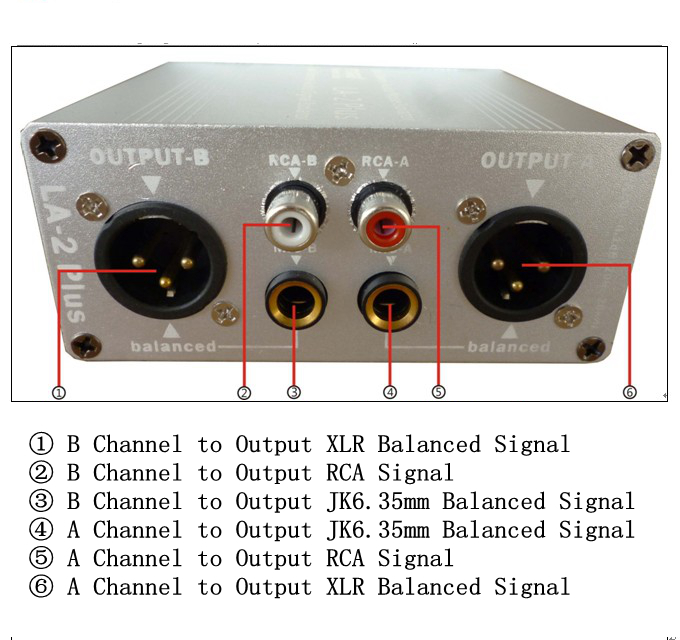

Introduction of Output Ports:
Specifications:
- Input & Output Impedance: 600Ω: 600Ω; 600Ω: 1.2K; 600Ω: 2.4K; 600Ω: 10K; 600Ω: 20K; 10K: 10K
- Input Port: XLR+6.35mm+RCA (Completely Symmetrically Balanced or Unbalanced)
- Output Port: XLR+6.35mm+RCA (Completely Symmetrically Balanced or Unbalanced)
- Key Switches: A Channel GND Switch; B Channel GND Switch; A+B Channel GND Switch
- Input Signal Voltage: Max. 5V
- Input Signal Current: Max. 700mA
- Isolation Protection: Totally Isolated for Input & Output
- Frequency Response: 20Hz-20kHz (-0.1db)
- Shell Material: Aluminum Housing
- Size: 100 x 90 x 45mm (L*W*H)
- Weight: 250g
Package Included:
- 1 x Audio Signal Isolator
