LA5016 USB Logic Analyzer 16 Channels Max Sampling Rate 500M 10G Depth Adjustable PWM Output

LA5016 USB Logic Analyzer 16 Channels Max Sampling Rate 500M 10G Depth Adjustable PWM Output

Download Software & User Guide:
http://www.qdkingst.com/en

Description:

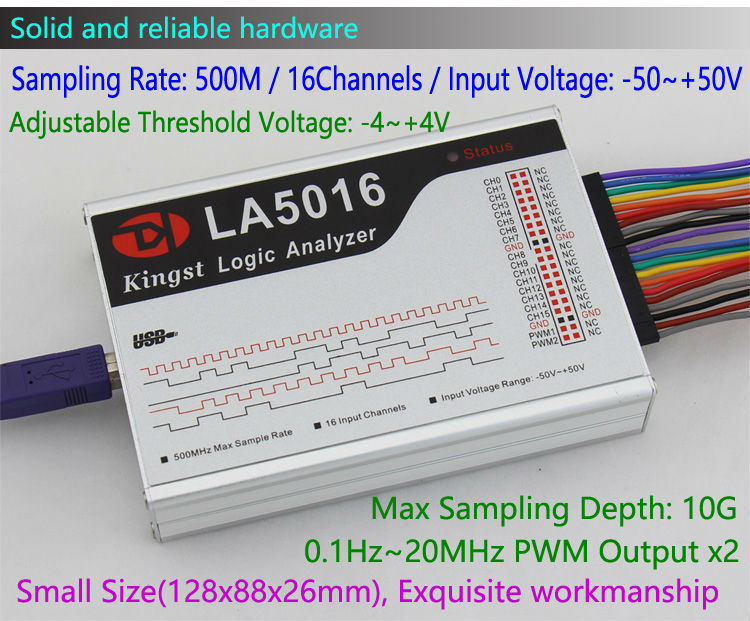

LA5016 is a high-performance logic analyzer with 16 channels and 500M sampling rate. It is composed of two parts: software on personal computer and hardware equipment. It has the advantages of high sampling rate, large sampling depth, easy to use, etc.

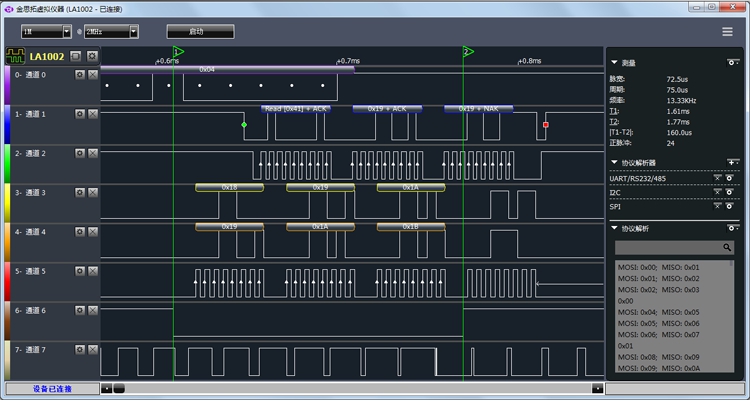

LA5016 can sample 16 digital signal at same time. Then the sampled data can be displayed, analyzed, exported and saved on the computer. Software can also decode the data if it conform to the standard protocol of the software supported. Then the decoded data can be displayed, exported and saved.

Features:
- Portable and lightweight
- 500M sampling rate at full channels
- Large sampling depth and support compression
- The built-in PWM generator
- Compatible USB2.0/3.0 interface
- Powerful software and easy to use
- Support online upgrade automatically

Specifications:
Measurement Input Parameters:
- Channels number: 16
- Max sampling rate: 500MHz
- Measurement bandwidth: 80MHz
- Min. pulse width can be catched: 6.25ns
- Hardware memory capacity: 2Gbits
- Hardware storage depth: 100M/channel
- Max compressed depth: 10G/channel
- Input voltage range: -50V to 50V
- Equivalent input impedance: 220KΩ, 12pF
- Threshold voltage: adjustable threshold: -4 to 4V; adjustment step: 0.01V

PWM Output Parameters:
- Channels number: 2
- Output frequency range: 0.1 ~ 20MHz
- Period adjustment step: 10ns
- Pulse width adjustment step: 5ns
- Output voltage: +3.3V
- Output impedance: 50Ω

Power Supply Parameters:
- Power Supply Port: USB 2.0/3.0
- Standby Current: 200mA
- Max. Operating Current: 400mA

Computer Software:
- Supported Protocols: UART/RS-232/485, I2C, SPI, CAN, DMX512, HDMI CEC, I2S/PCM, JTAG, LIN, Manchester, Midi, Modbus, 1-Wire, UNI/O, SDIO, SMBus, SWD, USB1.1, PS/2 mouse keyboard, NEC IR, parallel port
- Support OS: For Windows XP/7/8/10 (32bit/64bit), Vista, MAC OS, Linux, etc.

Package Included:
- 1 x LA5016 main unit
- 2 x 9P FFC cables
- 1 x 2P FFC cable
- 16 x Gray test hooks
- 2 x Black test hooks
- 1 x Premium USB cable

1.Support English / Simple Chinese languages. For Windows XP/7/8/10, Linux, MAC OS, and other operation systems.
2.User friendly interface with powerful analysis function.
3.Support multiple protocols: For UART/RS232/485, I2C, SPI, CAN, SDIO, DMX512,  I2S/PCM, JTAG, LIN, Manchester, Modbus, 1-Wire, SMBus, UNI/O, USB1.1, NEC IR, PS/2 mouse keyboard, parallel port, etc.
4.Data display in decimal / hexadecimal / 2 binary / ASCII code format for easy observation and analysis
5.Sampling data and analytical data can be exported, which is convenient for archive or other analysis software
6.Free online updates forever, more efficient and more intimate measurement tools
