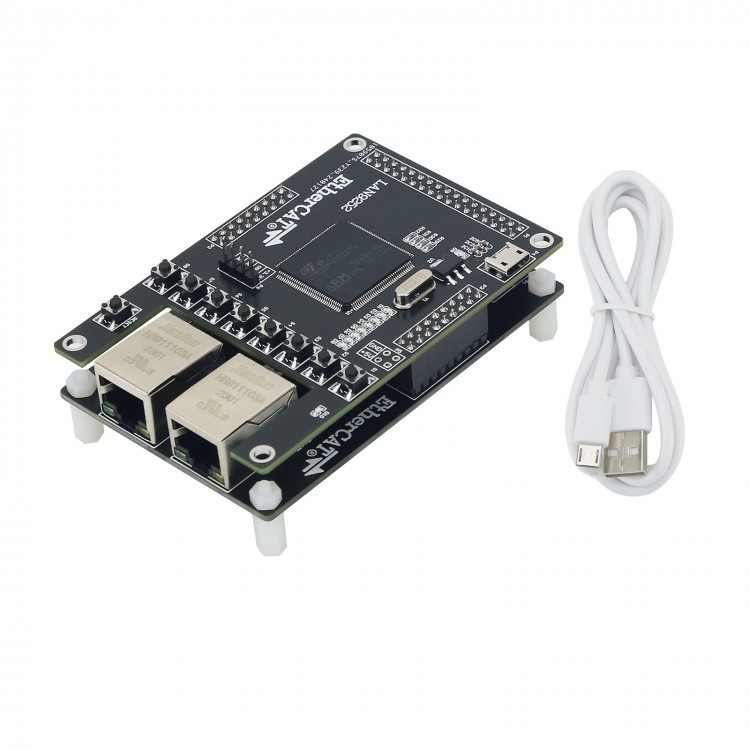

LAN9252 STM32407 Slave Station Development Board for EtherCAT Slave Station 16IO CIA402

LAN9252 STM32407 Slave Station Development Board for EtherCAT Slave Station 16IO CIA402

Features:
1. Slave development board for EtherCAT uses the architecture of STM32F407ZGT6 + LAN9252.
2. Two communication methods: SPI and FSMC parallel interface.
3. All interfaces of LAN9252 are led out, making it convenient to connect different controllers.
4. Design 8-channel LED display and 8-channel buttons, which is convenient for master station communication and debugging.
5. Complete development materials (schematic diagram, data sheet, master software for TwinCAT3, protocol for EtherCAT, Slave Stack Code Tool V5.11 slave code generation software, XMLSpy 2013 cracked version for Altova, slave XML editor, etc.).
6. Routines include CIA402 communication routines, parallel port IO communication routines, and SPI IO communication routines.

Package Included:
- 1 x Development Board

Attention:
- The master station uses the software for Twincat3 which requires a computer's network card for Intel.
