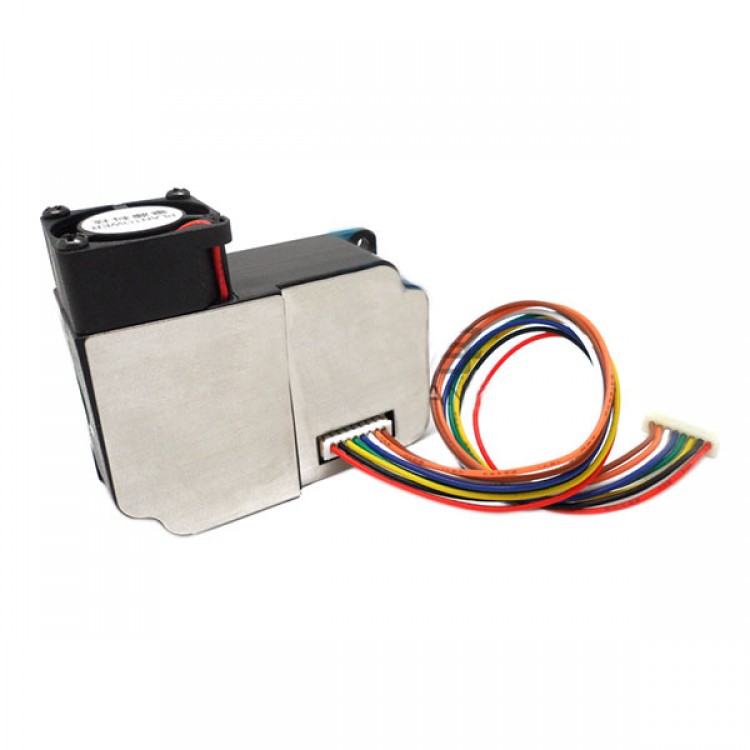

Laser Dust Sensor Module PM1.0 PM2.5 PM10 B-type With an Adapter Board Can be Connected to a Computer

Laser Dust Sensor Module PM1.0 PM2.5 PM10 B-type With an Adapter Board Can be Connected to a Computer

Description:
- PMS3003 using laser scattering theory, be able to get in the air suspended particulate matter concentration of 0.3 to 10 microns, and reliable data; built-in fan, digital output, high integration;

Feature
Data is accurate: Laser detection, stability, consistency;
Fast Response: scene-change response time less than 10 seconds;
Ease of integration: serial output (or IO port output can be customized), comes with a fan;
High resolution: minimum resolution particle diameter of 0.3 microns;

Scope:
PM1.0 PM2.5 PM10 detector, purifiers

Works
- Using laser scattering theory: When laser irradiation by detecting the position of the particles will produce faint light
- Scattering, in a particular direction of the light scattering particle diameter related waveform, waveform classification by different size system
- Account the conversion formula can be different sizes in real-time particle number concentration, in accordance with the calibration methods
- The official uniform concentration unit;

Technical parameters:
1, measuring diameter: 0.3-1.0um 1.0-2.5um 2.5-10um
2, the unit of measurement: ug / m3
3, the measurement accuracy: ug / m3
4. Response time: <10s
5, the working current: 5V200ma @ work status 5V2ma @ standby
6. Data Interface: Serial (3.3VTTL level)
7, the module volume: 65x42x23mm
