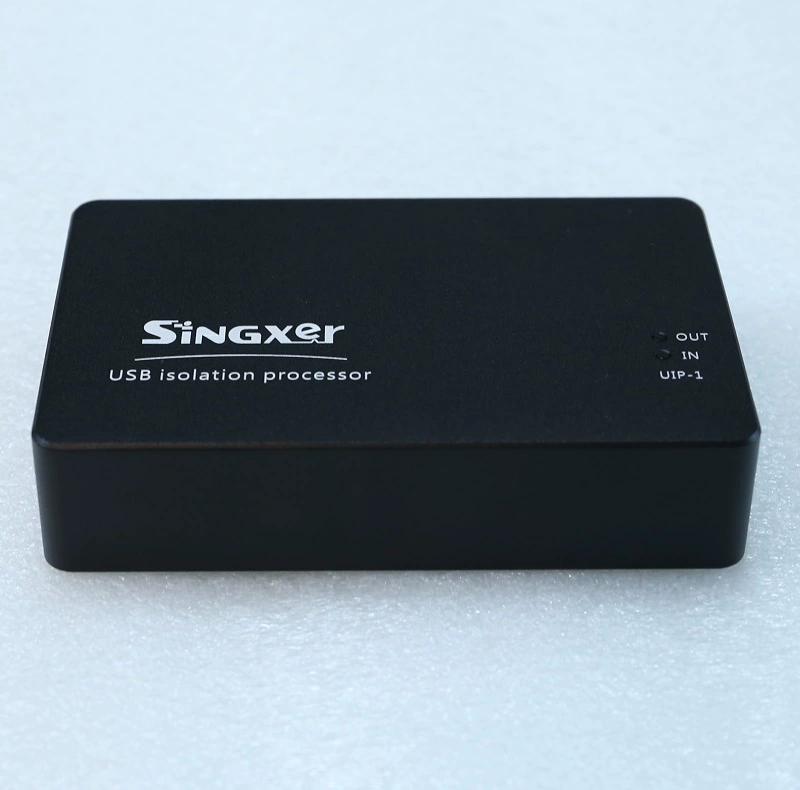

Latest Singxer UIP-1PRO USB Isolation Processor High Speed USB2.0 Purifier Audio Isolator USB Interface
Description:

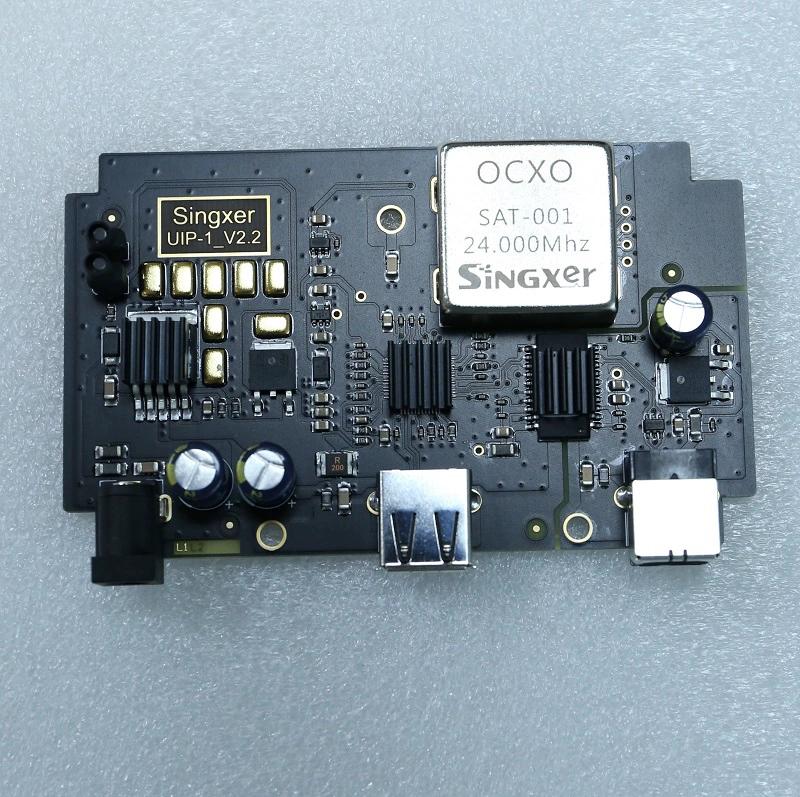

- Compared to the previous version, we have upgraded the USB 2.0 isolation chip, improved the power design, and used our self-developed OCXO module for the clock part.
- Full compliance with USB2.0 compliant, supports hot-plug, while supporting USB1.0 and USB1.1, plug and play, and drive-free.
- It is widely compatible with many hosts and devices, including all operating systems, embedded systems and equipment.
- Advanced USB input port ESD protection up to 15kV IEC air-gap discharge.

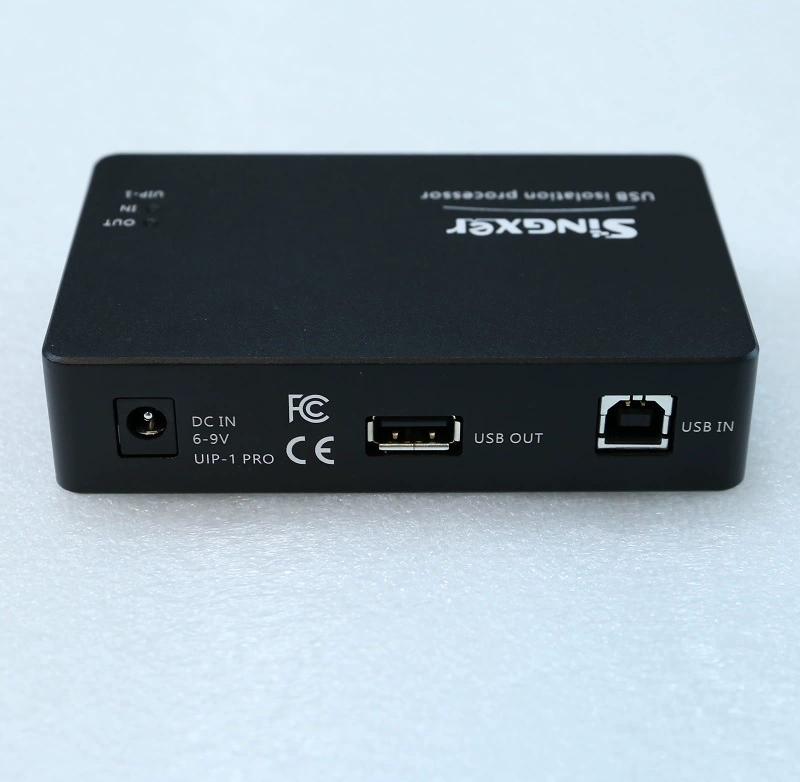

- USB input with USB B socket, USB input with 5V power supply.
- USB 2.0 high speed isolator, support speed rate up to 480Mbps, with the isolation voltage up to 2kv RMS.
- Belonging to the real total isolation, including USB power and ground circuits, it can better isolate front-end complex noise and electromagnetic interference.
- The isolated USB signal will enter the USB processing chip for signal reconstruction, removing a large number of jitters from the front-end, and then output it after using local high-quality clock reconstruction.
- The isolated USB output adopts a USB A-type female base, and the output power is sourced from the DC power input interface; After being stabilized with ultra-low noise internally, a clean 5V power supply is output.
- The maximum current output by USB is up to 1A, and the designed output noise is as low as 20uV.
- The DC interface is 5.5MM/2.1MM, with internal positive and external negative; Supports 6-9V DC input, with a recommended input voltage of 7.5V.
- Note: When using 5V, the internal 5V regulator will no longer function, but it can continue to output the original 5V; When the power supply exceeds 9V, the heat generation of the entire machine begins to increase.
Specification:
- Product size: 112 x 72 x 26mm (L x W x H)
- Product weight: 0.2kg

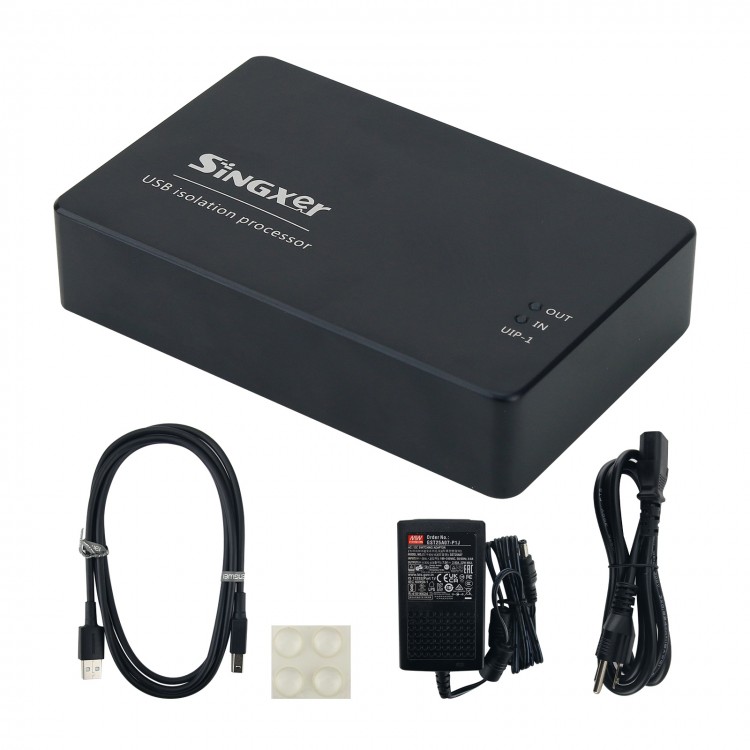

Package Included:
- 1 x Singxer UIP-1PRO Isolation Processor
- 1 x AC-DC Power Adapter
- 1 x USB Cable
