Latest Version 2014D Vida Dice Diagnostic Scanner OBD2 Fault Code Reader Scan Tool for Vehicle 1999-2015.3

Latest Version 2014D Vida Dice Diagnostic Scanner OBD2 Fault Code Reader Scan Tool for Vehicle 1999-2015.3

Product Description:
- DICE-Diagnostic Communication Equipment, is a tool that is used together with VIDA all-in-one to communicate with the vehicle. Communication makes diagnosing and troubleshooting the vehicle possible, as well as downloading software.
- DICE has an integrated CARB cable, which is connected to the vehicle's diagnostic socket.
- DICE has a folding hook that is designed for hanging the unit from one of the grab handles in the vehicle.
- DICE is equipped with four colorful status LEDs that indicate the status of the software, the USB and Bluetooth communication and the interface to the car.
- At one end of the unit, there is a DC input where a battery cable or adapter(12V) can be connected. The adapter is used when upgrading and
troubleshooting the DICE.
- In the other end of the unit, there is a removable cover that could be removed by turning the screw on the cover.
- The main chip of this product is RENESAS M32C micro-controller
- The DVD not only include the latest version of software, but also video instructiong.

Specification:
- Software Version: 2014D Newest Version Full Chip
- Language: English, French, Portuguese, Swedish, Japanese, Korean, Dutch, Russian, Turkish, Thai, Chinese
- It supports for car models from 1999 to 2015 Year model （before 2015.3）
- Version We Offer Now: VIDA 2014D English (Locally Activated, No Online Services; Login as "Info-pc". Software download need to
connect network, and upgrade at late stage don’t need to operate hardware, just use the software provided from supplier.）
- Net weight：840g

Features:
- Administration - General information, design and function
- Standard components, service materials and consumables. General information (among other things, control modules, SRS, general safety)
- Service and maintenance
- Engine with mounting and equipment
- Electrical system
- Power transmission
- Brakes
- Suspension and steering
- Springs, shock absorbers and wheels
- Body and interior - among other things, diagnostics, design and function, repair and spare part information
- Other special vehicles, e.g., ambulances, police cars. Components that deviate from standard.

Vida Dice Requirement on Computer:
- It must be windows 7 professional operating system 32 64 bit (Win7 home and Ultimate are invalid. XP system is recommended.)
- It need to be Internet Explorer 9 or newer
- Computer memory need over 3GRAM
- C:// must have 30GB space
- Software must install on C://
- It must be NTFS format

Vida Dice Installation Tips:
- Run the CD-ROM, <\Install\DVD\Vida_dvdheader\Main\setup.exe>, Choose the languages: [EN-GB...], install it to list, till all installations
finished, then restart the computer.
- After restarted, once the service icon(The bottom of the right corner) is available(VIDA Status: Running) , and choose the below cracked
executing documents [VIDA2014A_patch.EXE], install it to list, then restart the computer.
- User Name: admin

Note:
- If you have DICE and do not know how to setup it - message us, we will figure out it. Even more we can help you install through teamviewer.
- XP system is recommended.

Order of Use:
- Insert our product into the car's OBD2 port
- Start the car
- Insert our product's USB into the installed software computer, do not run the software immediately, and wait for systems automatically load product drivers, observe the VIDA status of the computer taskbar's lower right corner, it must be green when you can operate the next step
- Run the VIDA ALL-IN-ONE desktop icon

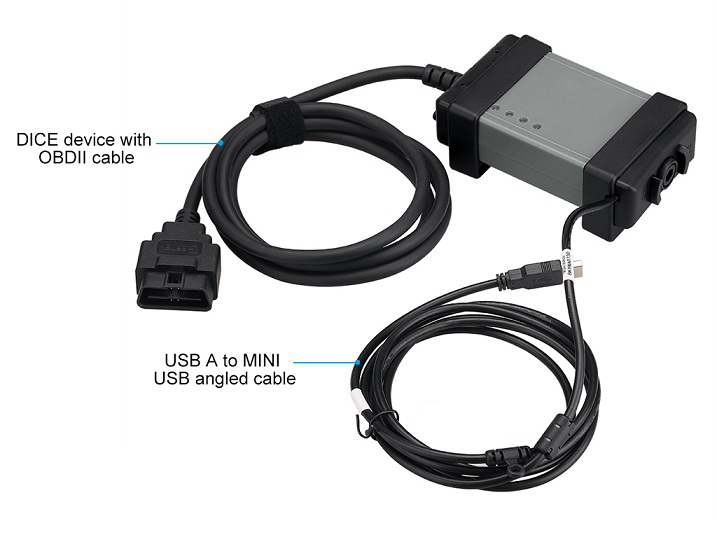

Package List:
- 1   x  2014D VIDA Dice Device with OBDII Cable
- 1   x  USB A to MINI USB Angled Cable
