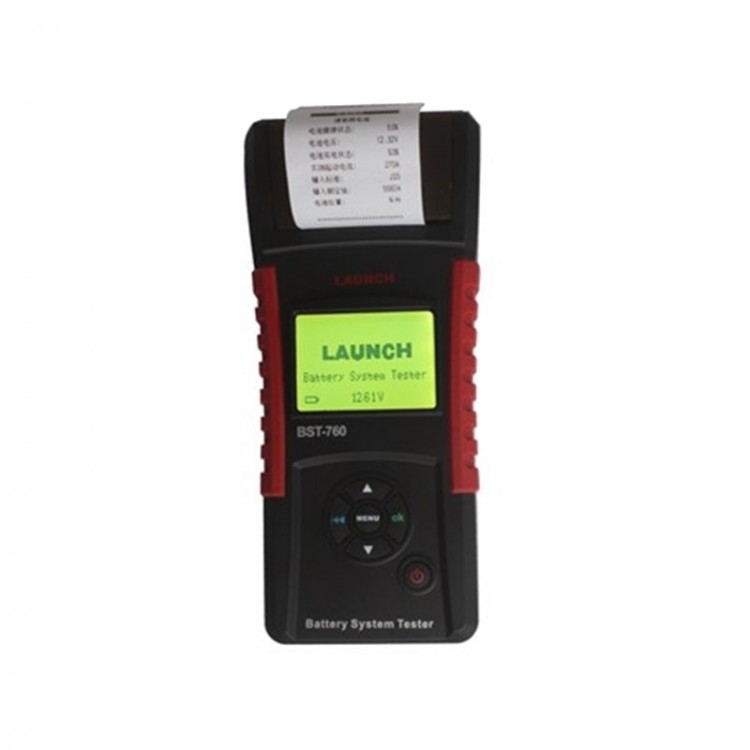

Launch BST-760 Battery Tester Car Detector Auto Diagnostic Tool for 6V & 12V Battery System
Highlights and Notice:
- Languages: English, Russian, Simplified Chinese, Traditional Chinese
- Product Principle: The world's most advanced conductance test technology
- Scope: Suitable for 6V & 12V battery system and 12V & 24V starting and charging system detects
Launch BST-760 Battery Tester Main Parameters
- Shell ABS anti-acid plastic , soft rubber TPU corrosion-resistant package,two-color molding
- 128 * 64 dot matrix , large backlit display screen (3 inches ) adjustable brightness LCD display
- The configuration of the 0-900A AC and DC current clamp
- Built-in thermal printer , the test results can be printed out at any time
- Can store 100 groups of test results data , ready at any time to view and print any of a group of test data
- Test standards , including the most commonly used battery standard,such as CCA,BCI,CA,MCA,JIS,DIN,IEC,EN,SAE,GB
- Operating Temperature: -20-60 ℃ (-4-140 ℉)
Launch BST-760 Battery Tester Product Advantage
- Simple, secure , fast , and accurate display test results ( the test takes about 3 seconds)
- Eight lines with backlight LCD display and humane language prompted interface
- Does not emit light , no heat , no discharge , no spark , no operating dangerous
- Configuration 0-900A AC and DC current clamp
- Built - in thermal printer
- Can store 100 groups of test results
- Automatic temperature compensation function
- With ripple voltage test function
- Powerful auxiliary functions
- Multi- language menu display
- Replaceable test lines
- Dedicated Kelvin test clip
Launch BST-760 Battery Tester Advanced Functionality
- Applicable to a variety of models, all kinds of batteries , and a variety of system mode
- Directly detected in the car , do not need to remove the battery
- Directly test the battery of the loss of electricity , bad cell battery
- Testable starting / charging current
Launch BST-760 Battery Tester Powerful Auxiliary Functions
- View / Print
- Ammeter Function
- Thermometer
- QC mode
- License plate number input function
- Time and time format Adjustment
- User information input
- Display backlight brightness adjustment function
- Print sharpness adjustment
- Standby power function
Launch BST-760 Battery Tester Test Criteria and Scope
- CCA 100-2000 (SAE & BCI to develop the standard most commonly used : the cold-start battery rating )
- BCI 100-2000 ( international battery Committee standards )
- CA 100-2000 (0 ℃ when the effective starting current rating)
- MCA 100-2000 ( ships standard effective starting current rating , 0 degree C )
- JIS 26A17 - 245H52 ( Japanese Industrial Standard)
- Standard DIN 100-1400 ( German Automobile Industry Committee )
- The IEC 100-1400 ( International Electrotechnical Commission standard )
- EN 100-2000 ( European Automobile Manufacturers Association standards )
- SAE 100-2000 ( U.S. Engineers Standard)
- GB 100-1400 ( Chinese National Standard )
Launch BST - 760 Battery Tester Function:
- 760 has 2 battery:one is used on the host, it can be tested without battery but have not backup power supply function.the other battery is used on current clamp.
- The backup power supply function is the 15th auxiliary function. Some luxury vehicle ECU Power can't be cut.If the power failure,it will be locked. So when change storage-battery for luxury vehicle,760 can supply power to ECU.
Launch BST-760 Battery Tester Package List:
- 1pc x BST-760 Battery Tester Main unit
- 1pc x Tester cable
- 1pc x Detachable clamp
- 1pc x User Manual
- 1pc x Carry case
