Product Description:
- This scanner support based on fulfill all function of OBDII standard protocol, so pls confirm if your cars are OBDII standard protocols vehicel.
YZC51-M (13)

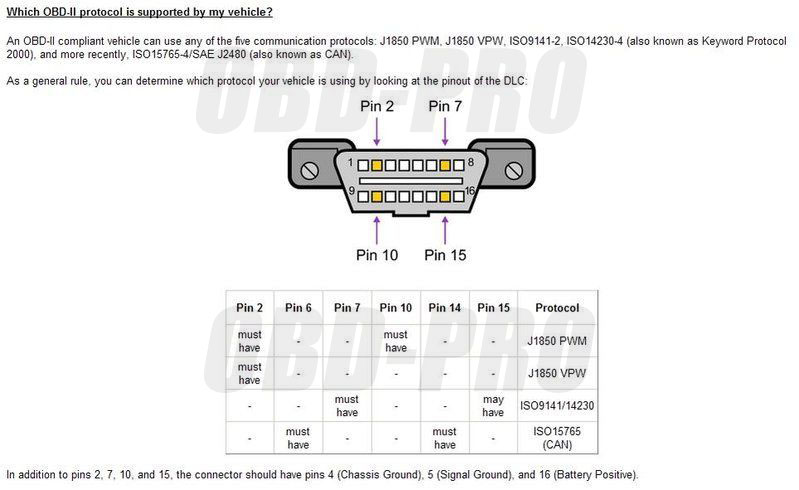

- OBD II specifies 5 different electrical protocols which can be used to access OBD II information.Automotive manufacturers are required to implement one of the mandated OBD II protocols. CAN is becoming the mandated OBD II protocol for all new vehicles. In the near future all vehicles will use this protocol to communicate.
- At the moment, however, different manufacturers favour different protocols.

Details:
- OBD Protocol: Vehicle Manufacturer
- ISO 9141-2/KWP2000-4: Many Asian and European vehicles including Alfa Romeo, Audi, BMW, Citroen, Fiat, Honda, Hyundai, Jeep post-2004, Kia, Land Rover, Mazda, Mercedes, Mitsubishi, Nissan, Peugeot, Renault, Saab, Skoda, Subaru, Toyota, Vauxhall, Volkswagen post-2001, Volvo pre-2004.
- J1850 PWM: Ford pre-2003. Jaguar pre-2003. Mazda pre-2004.
- J1850 VPW: General Motors, Chrysler
- ISO 15765-4 (CAN) : Ford, Mazda, Volvo since 2004.
- Language: Russian,English,Spanish,French,Portuguese,Chinese
- Tips: the default language is English,Spanish and French.
- Russian or Portuguese language should be downloaded from the official website.

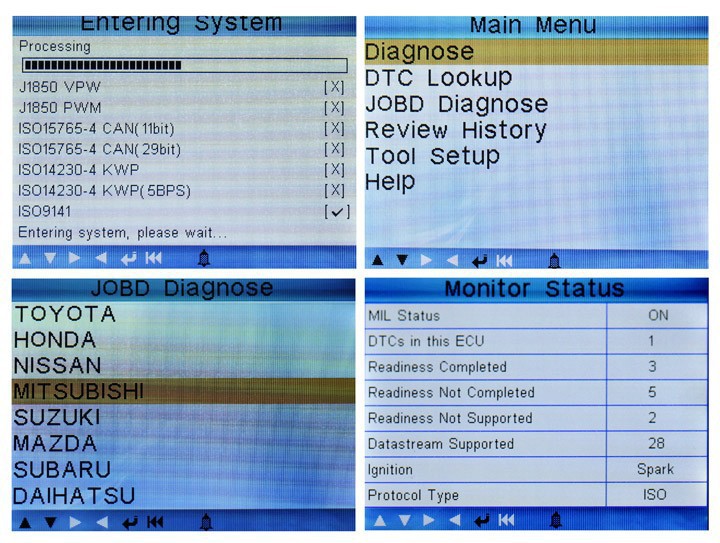

- Creader VI Function:
- Read dynamic datastream
- MIL indicator
- Readiness status test
- Search freeze frame data
- Read current DTCs
- Clear DTCs
- O2 sensor detection test
- Specified monitoring system on-board monitor test
- Read pending DTCs
- Read on-board systems or components control
- Read vehicle information
- Read permanent DTCs
- DTCs search
- Tested data playback

Creader VI Description:

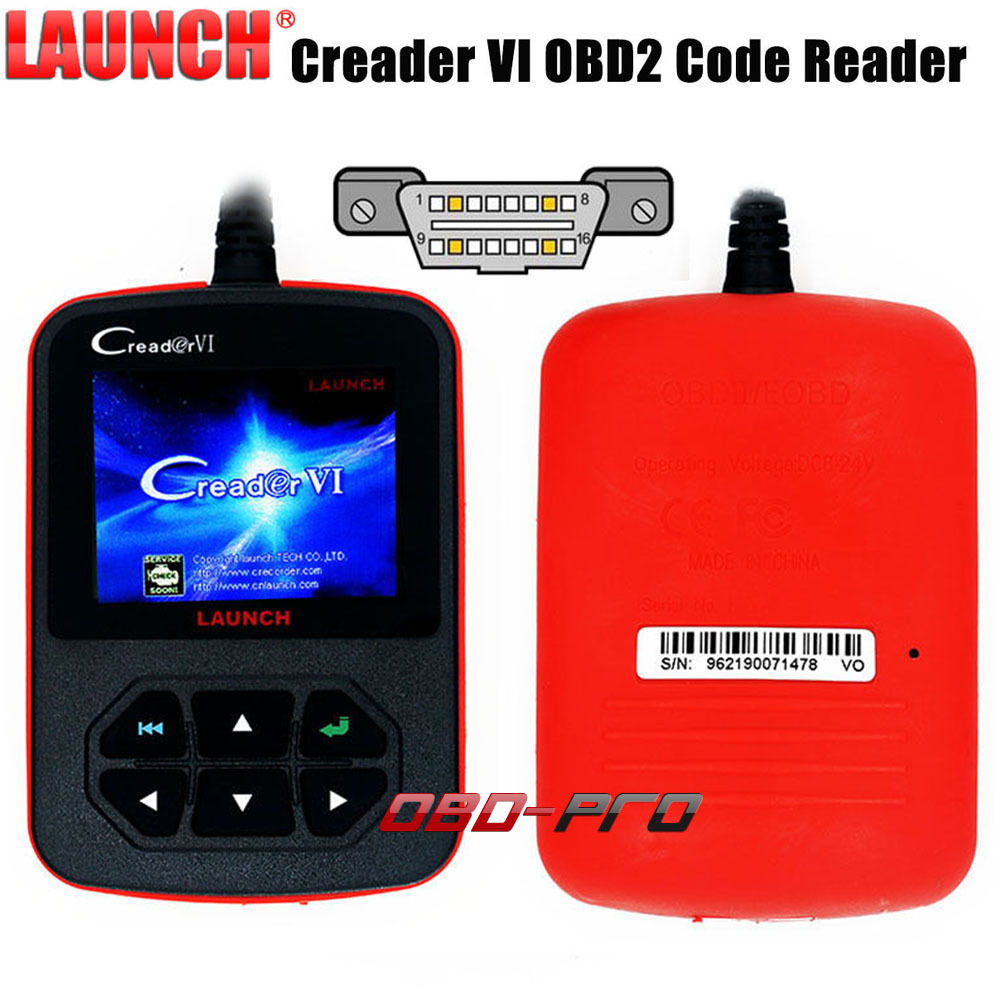

- Launch Creader VI is a newly vehicle fault diagnostic tool.

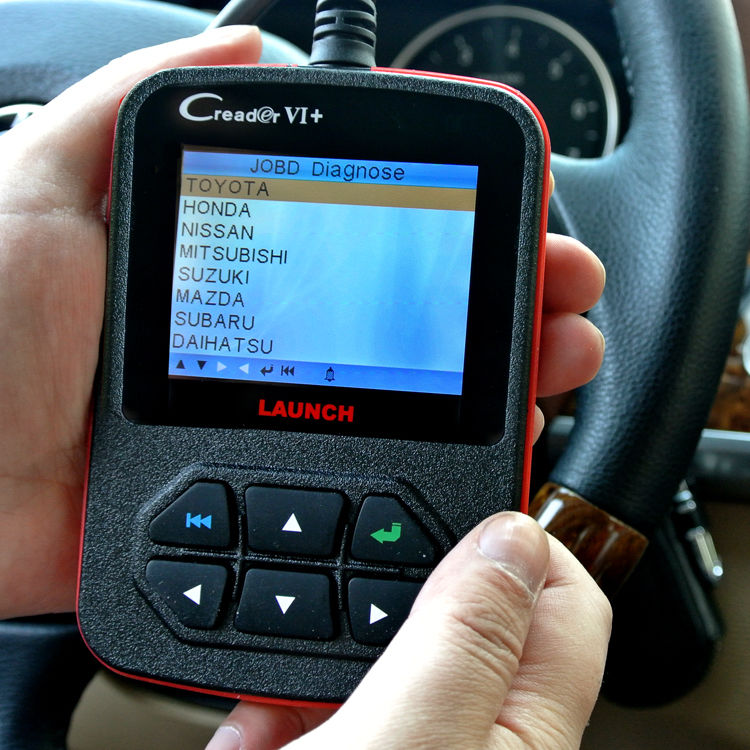

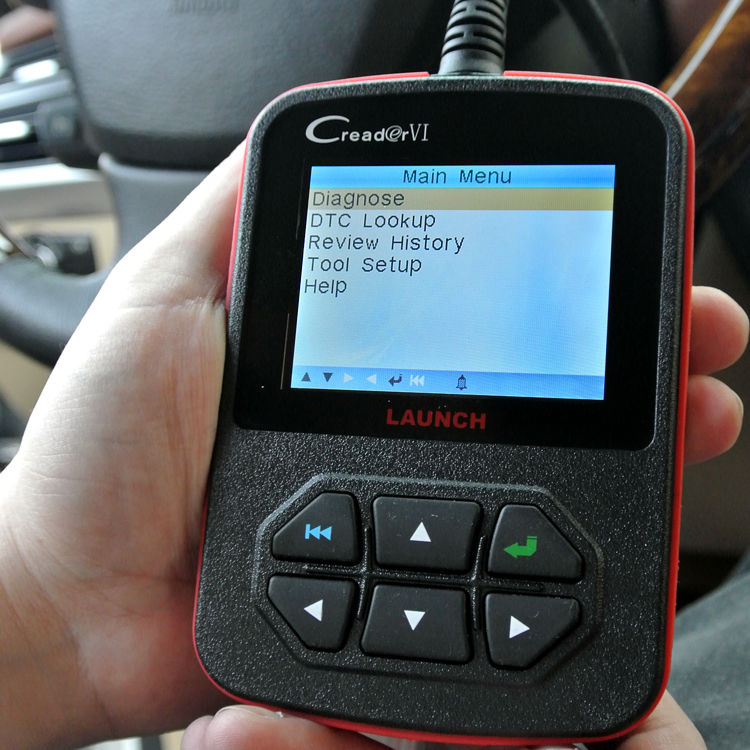

- It has applied the color LCD display
- Operation button-Humanized button design, more convenient and effectively
- Fault tips-Diagnostic status is shown by the led indicator
- Support all functions for vehicle with OBD&EOBD
- New operating system makes it run faster and diagnosed more effective.
- Quick upgrade via USB2.0 and update data at any time

Creader VI Specification:
- Screen: 2.8'' TFT 262K true color, 320*240 Pixels LCD display
- Input voltage range: 8 ~ 32V
- Operating current: <100mA@12V(Typical)
- Power consumption: <1.2W(Typical)
- Link connection: Standard OBD 16-pin DLC
- Operating temperature: 0 ~ 50
- Storage temperature: -20 ~ 70 @ RH 60%
- Outline dimension: Lx W x H = 121x 82x26mm

Package List:

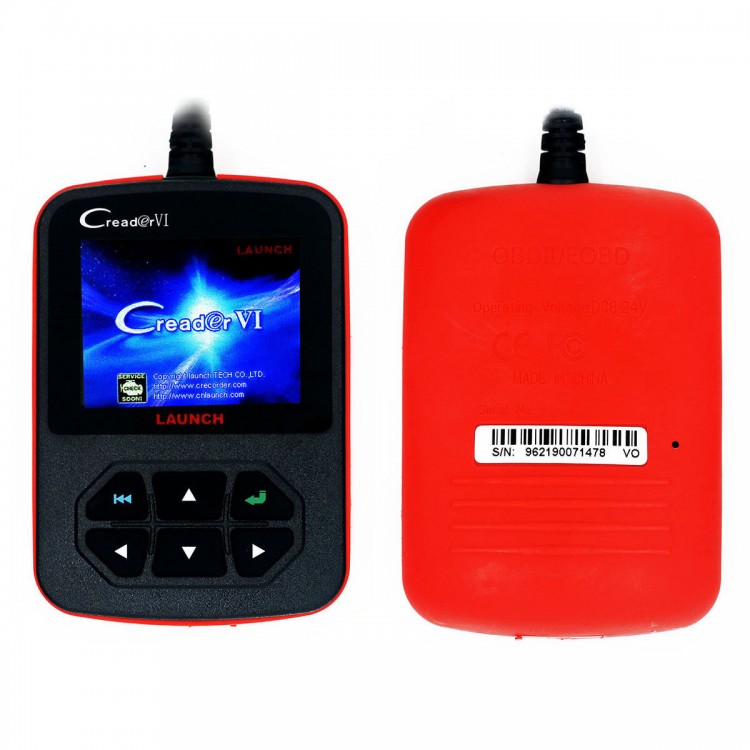

- 1  x   Launch Creader VI

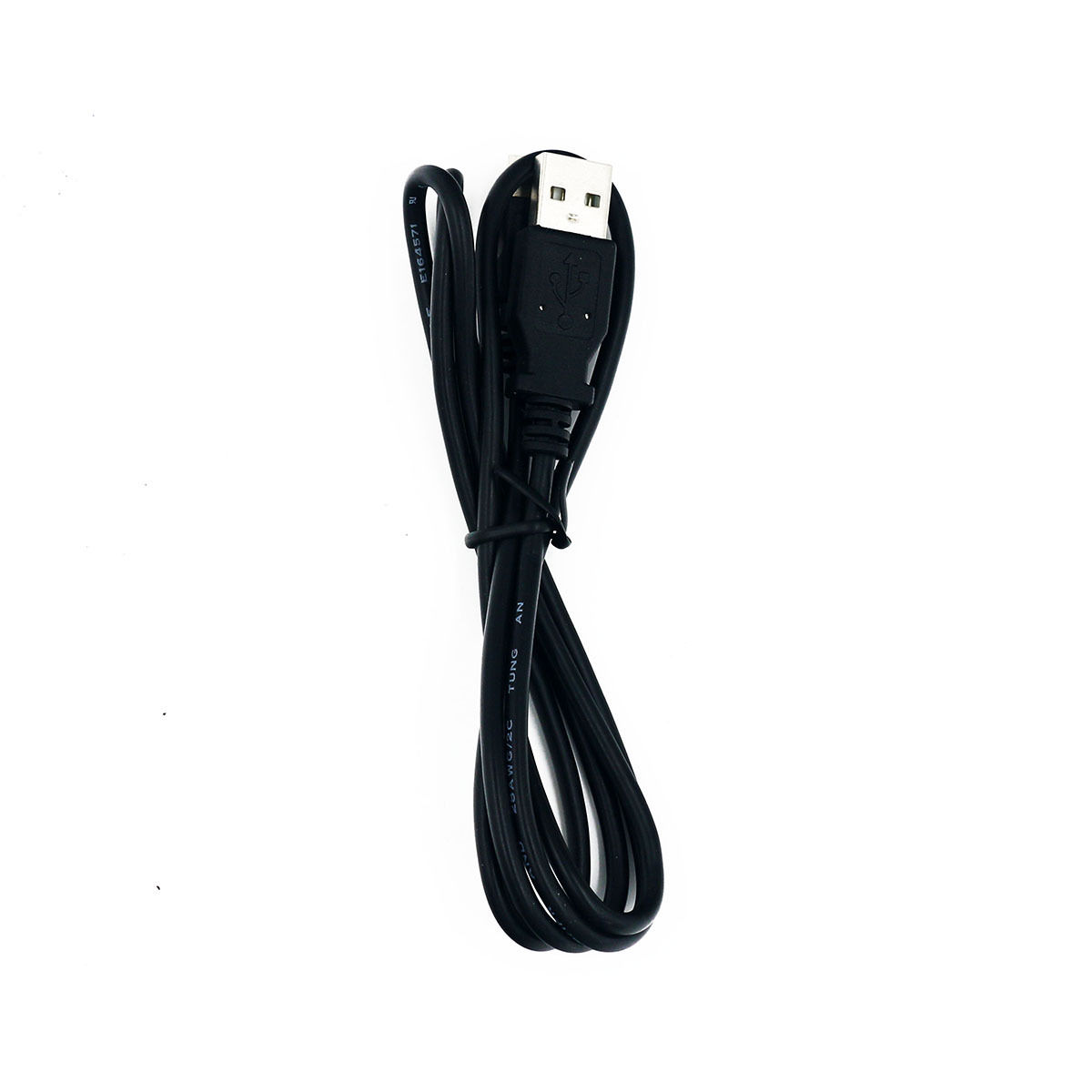

- 1  x   USB Cable
- 1  x   User manual
