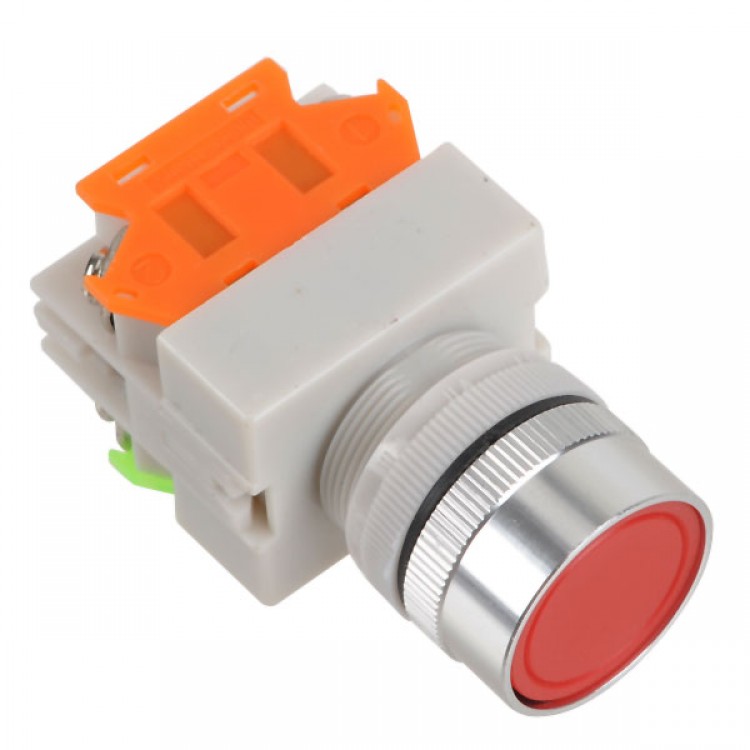

LAY7 (PBCY090)LAY37 Red Pushbutton Switch Flat Push Button
Specfication:
Product Name: LAY7 Series Pushbutton Switch
Model Number: LAY7 Series
Place of Origin: China
Main technical parameters:
- Rated insulation voltage: 660V (AC 50Hz)
- Conventional thermal current: 10A
- Button utilization category rated operational voltage and rated operational current
- Protective class: IP55
- Button with lamp rated operational voltage and power see list5
Application condition:
- Ambient air temperature: -5 ~ +40¡ãC
- Altitude height: ¡Ü2,000m
- Pollution degree: 3
- Type of installation: II
|
Description
|
Frequency limits:AC 50Hz
Rated operational voltage:up to AC660V/DC440V Function:Control and signal chain |
|
Certificate
|
CCC、CE
|
|
Standard
|
GB14048.5
|
|
Technical Data
|
Rated insulation voltage:660V
|
|
Conventional thermal current(Ith):10A
|
|
|
Operating rate: 1200 cycles/h.
|
|
|
Protection grade:IP55
|
|
|
Features
|
Base uses PA66 and contactors are copper
|
|
Contactors possess the function of cleaning itself which ensures the reliable switching on and off.
|
|
|
NO and NC contactors can be combined freely.And they are
insulating which can work as heterospolar. |
|
|
Having mounting pad of preventing revolve and loose
|
|
|
LAY7 light button uses LED, having the features of energy saving and long mechanical durabilities
|
