LC200A LC-200A High-Precision LC Meter Handheld Inductance Capacitance Meter with SMT Test Clip

LC200A LC-200A High-Precision LC Meter Handheld Inductance Capacitance Meter with SMT Test Clip

Features:
- It is a capacitance inductance meter.
- Small value measurement: The instrument is based on the principle of LC resonance. LC-200A has advantages in small value testing, compared to other inductance voltmeters (such as the 6234 series) sold on the market.
- Wide measuring range makes it convenient to use: C range: Capacitance (1pF-10uF); L range: Inductance (1uH-100mH); Hi.C range: Large capacitance (1uF-100mF); Hi.L range: Large inductance (100mH~100H). It is especially suitable for microwave production and measurement of switching power transformers and filter inductance.
- Online calibration - no loss of parameters in case of power failure. It has a flexible online calibration function to maintain measurement accuracy at all times. Since no potentiometer adjustment is used, the calibration parameters are completely stored in the FLASH of the microcontroller, and the parameters will not be lost even if the power is off. It is more accurate and convenient than other potentiometer calibrations.
- Zero calibration: Capacitance mode—open circuit correction. Inductance mode—short circuit correction.
- Frequency display: You can check the current measured frequency during component measurement.
- Display mode: direct reading display.
- Wider application: It meets the needs of 90% of people for capacitance and inductance monitoring. It can be used for scientific research and technology engineering, factory electronic instrument testing, electronic instrument maintenance, school experimental teaching and electronic design competition.

Specifications:
- C range: Capacitance (1pF-10uF)
- Capacitance accuracy: 1% (1pF~1uF) and 5% (1uF~10uF)
- Measurement resolution of capacitance (C Range): 0.01pF
- L range: Inductance (1uH-100mH)
- Inductance accuracy: 1% (1uH~100mH)
- Measurement resolution of inductance (L Range): 0.001uH
- Hi.L range: Large inductance (100mH~100H)
- Large inductance accuracy: 1% (100mH~1H) and 5% (1H~100H)
- Measurement resolution of large inductance (Hi.L Range): 0.001mH
- Hi.C range: Large capacitance (1uF-100mF)
- Large capacitance accuracy: 5% (1uF-100mF)
- Measurement resolution of large capacitance (Hi.C Range): 0.01uF
- Test Frequency: 500kHz (L Range and C Range); 500Hz~50KHz (Hi.L Range)
- Measurement method of capacitance, inductance and large inductance: LC resonance
- Measurement method of large capacitance: Charge-discharge
- Display: 1602 LCD
- Effective display digits: 4 digits
- Interface to supply power: 4xAA batteries, mini USB & Dia. 5.5 DC socket
- Supply voltage: External 5V or batteries (not included)
- Product size: 150 x 89 x 29mm/5.9 x 3.5 x 1.1"
- Product weight: 198g/0.4lb

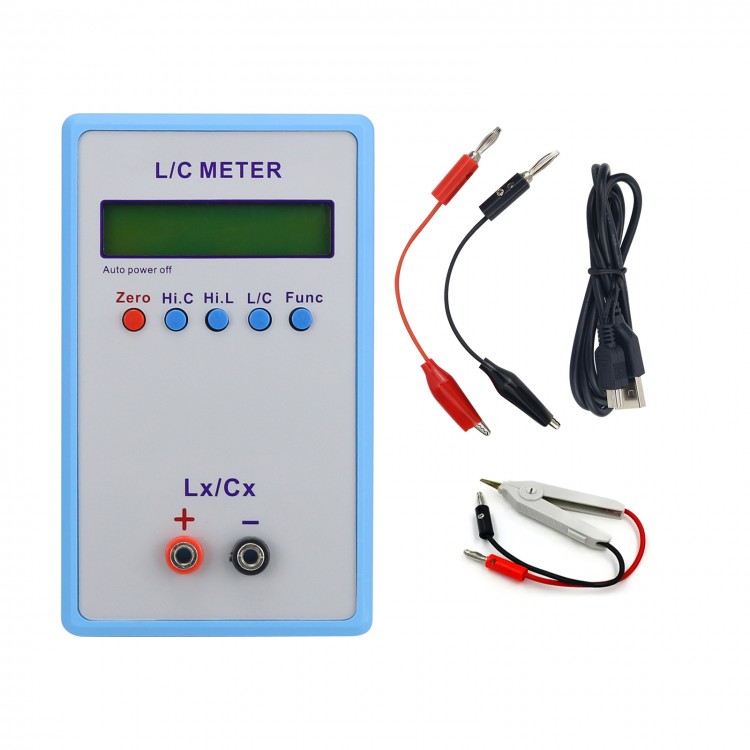

Package Included:
- 1 x LC meter
- 1 x Mini USB power cable
- 2 x Alligator clips
- 1 x SMT test clip

Note:
- It can be powered by 4pcs AA batteries which are not included in the package.

Packaging Details:
- G.W.: 0.40kg
