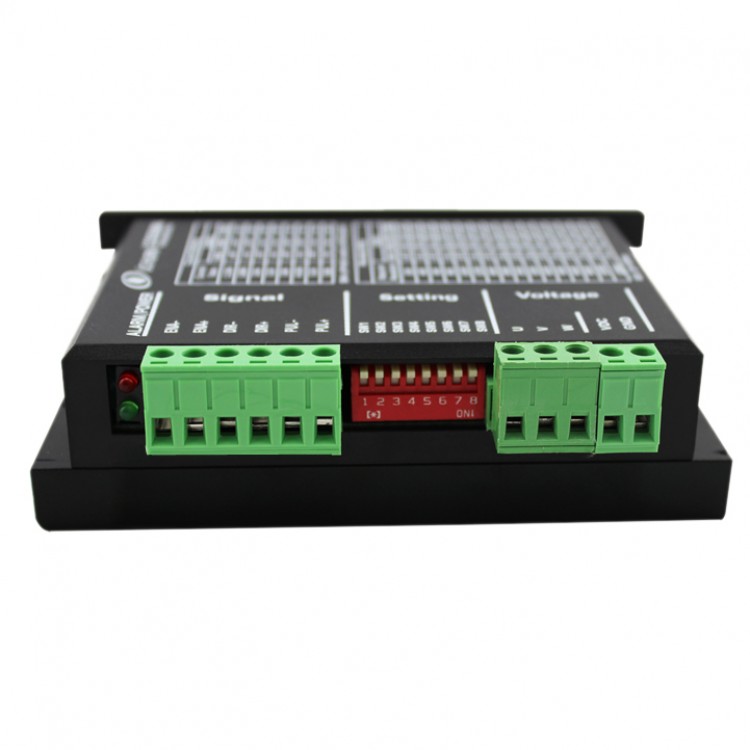

LC3056MA DC36V 5.8A 3-Phase 57 Stepper Motor Driver Nema23 Step Motor Driver Controller for CNC Engraver

Availability: In stock, usually dispatched in 1 business day

  • Price:$40.58
  • Price in reward points: 406 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $39.77 $38.96 $37.74 $36.12 Contact US
Quantity:

LC3056MA DC36V 5.8A 3-Phase 57 Stepper Motor Driver Nema23 Step Motor Driver Controller for CNC Engraver

Specifications:

- Model: LC3056MA
- Driver Motor: 3-phase 57 Stepper Motor
- Supply Voltage: 20-50VDC
- Current: 1.3-5.8A
- Microstep Subdivision: 200-12800
- Signal Voltage: 5V
- Pulse Model: Single Pulse
- Alarm Output: No
- Standby Semiflows: Yes
- Technical Features: analog ,Servo Control Principle

Function:
1. Working current setting: The driver output current is set by three dip switches SW1 - SW3,its output current has eight classes in all. About specific output current Settings, please refer to the drive panel.
2. Automatic half flow function: Users can set drive to automatic half flow function through SW4.OFF shows the static current is set to be half of the dynamic current,ON shows the static current is the same as dynamic current .SW4 should be set to OFF in general use  in order to reduce the heating of the motor and driver , also to improve the reliability. The current will reduce to 50% automatically 0.4 seconds approximately after the pulse train stop (60% actual value), calorific value reduced by 36% in theory.
3. Micro step subdivision setting: The driver micro step subdivision is set by four dip switches SW5 -SW8, there are 15 files of micro step subdivisions in all.When users are setting segmentation, the driver should be stopped first.  About the setting of micro step subdivision , please refer to the drive panel.
4. Indicator light: rives have two red and green lights.One of the green light is power light,It will be abidingly on after the driver is electrified; the other red light is fault  indicating lamp, when being overvoltage and overcurrent problems, trouble light will be abidingly on. After the fault being cleared, the red light turns off. When a driver becomes disabled, only re-up electricity and reuse can clear the fault.
5. Signal interface: PUL + and PUL - are the plus side and  minus side of  signal controlling.DIR + and DIR - are the plus side and  minus side of direction signal.ENA + and ENA -are the plus side and  minus side of enable signal.
6. Motor interface: Motor winding line U, V, W correspond to the ones U, V, W, switch any two of the three winding threads, can make the motor direction change.
7. Power port: Using the dc power to supply,  operating voltage range is suggested to be 20V-50VDC.  Power is greater than 200w.Suggested working voltage is 36 VDC.
8. Installation instructions: The  boundary  dimension of drive is : 117 * 78 * 34 mm,The Installation pitch-row is 111 mm. Either horizontal or vertical installation can work,(vertical installation is recommended).When installation, should make it close to the metal cabinet to facilitate heat dissipation.

Parameter setting:
LC3056MA driver uses eight dip switches to set the segmentationaccuracy, dynamic current and half/full flow, detailed description as below: Working current setting :SW1, SW2,SW3;  Half/full flow mode setting: SW4; Subdivide microstep setting: SW5, SW6, SW7, SW8.

Working current setting:

Output average current SW1 SW2 SW3
1.35A off off off
1.86A on off off
2.6A off on off
3.2A on on off
3.8A off off on
4.45A on off on
5.2A off on on
5.8A on on on

Subdivide microstep setting

Steps/roll SW5 SW6 SW7 SW7
200 off off off off
400 on off off off
500 off on off off
800 on on off off
1000 off off on off
1250 on off on off
1600 off on on off
2000 on on on off
2500 off off off on
3200 on off off on
4000 off on off on
5000 on on off on
6400 off off on on
8000 on off on on
10000 off on on on
12800 on on on on

Package Included:
- 1 x LC3056MA DC36V 5.8A 3-Phase 57 Stepper Motor Driver
