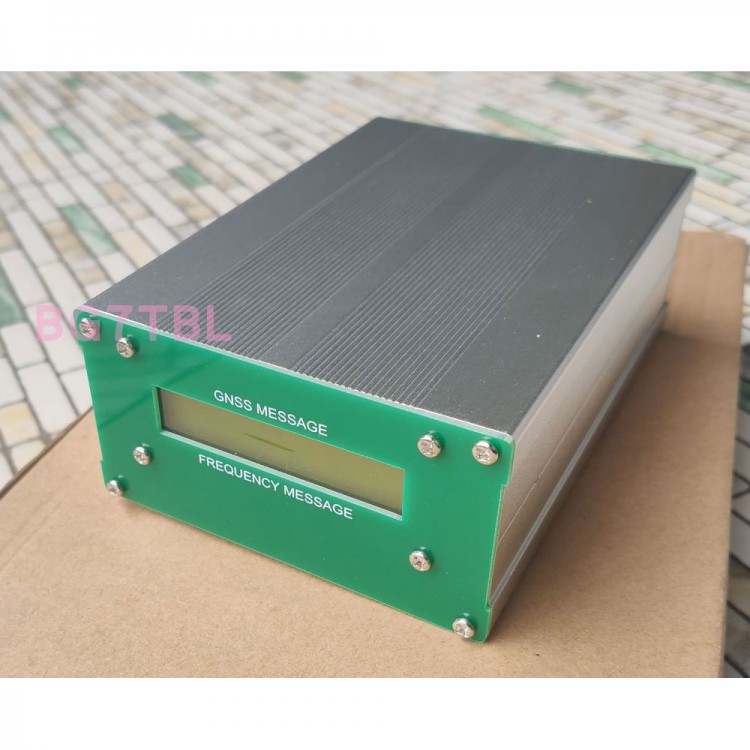

LCD-GNSS GPS Clock 10MHz GNSS Disciplined Oscillator with LCD Frequency Display for GPS + BDS + GAL
Specification:
- Product name: LCD-GNSS disciplined oscillator
- Supported GNSS: for GPS, BDS, GLONASS, GALILEO (optional)
- Power supply: DC11.7 - 12.9V, ≤15W
- GNSS antenna power supply: DC 5V/50mA
- 1PPS output: square wave, 3.3Vpp
- 10MHz output: sine wave, 1Vrms, 10-15dBm; square wave, 3.3/4.7Vpp
- RS232 output: GNSS NMEA signal
- Display: GPS strength, time, frequency (multi display mode)
- Accuracy: above than OCXO 2 order of magnitude
- Product size: 107 x 55 x 172mm (including the connector length)
- Net weight: 1kg
Package Included:
- 1 x GNSS Disciplined Oscillator
- 1 x AC110-220-DC12V Adapter
- 1 x 5-meter GPS Antenna
