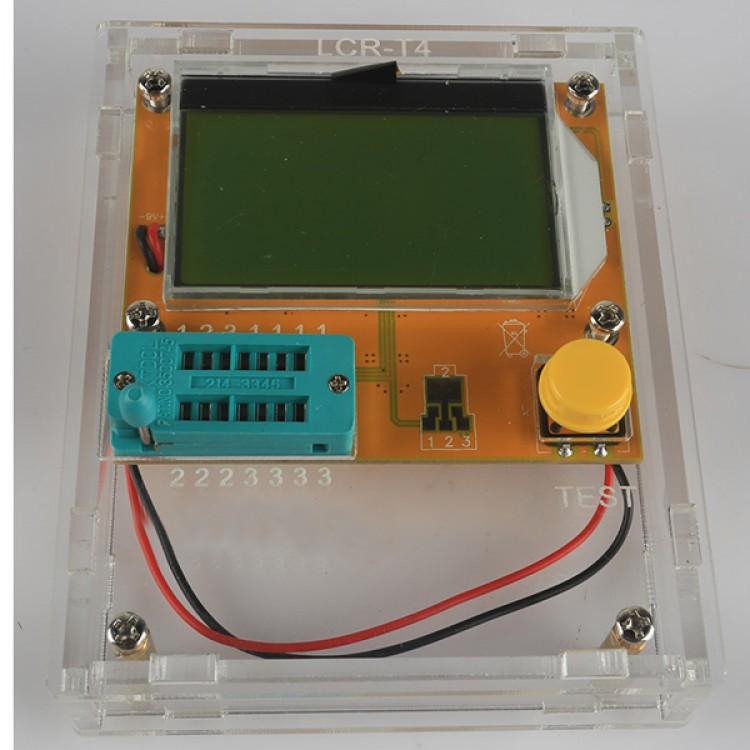

LCR-T4 Transistor Tester Meter Diode Triode Capacitance Resistance SCR Inductance MOS with House-White

LCR-T4 Transistor Tester Meter Diode Triode Capacitance Resistance SCR Inductance MOS with House-White

Features:
- Powered by 9V layer-built battery, can use 2 li-ion batteries to form a 8.4V battery pack for long time power.
- Measuring bipolar transistor current amplification factor and base-emitter threshold voltage.
- Automatic test the pin of a component, and display on the 128 * 64 LCD backlight.
- Measure the gate and gate capacitance of the MOSFET threshold voltage.
- One -button operation, automatic shutdown, only 20nA shutdown current.
- Eeverse breakdown voltage is less than 4.5V, Zener diode can be identified.
- 2uF more capacitors can simultaneously measure the equivalent series resistance ESR values.
- Via the base - emitter threshold voltage and high current amplification factor to identify Darlington transistors.
- Can simultaneously measure two resistors and resistor symbol is displayed. Displayed on the right with a decimal value of 4.
- Can detect the transistor, MOSFET protection diode amplification coefficient and the base to determine the emitter transistor forward biased voltage.
- Automatic detection of NPN and PNP transistors, n-channel and p-channel MOSFET, diode (including double diode), thyristor, transistor, resistor and capacitor and other components.

Specifications:
- Material: PCB
- Power Mode: 6F22
- Display: 128 * 64 LCD backlight
- Testing Speed: 2 seconds (1 minute is normal for large capacitor)
- Shutdown Current: 20nA
- Displayed Value: 25pf-100mF (resolution 1pF)
- Inductance: 0.01mH-20H
- Resistance: ≤2100Ω
- Power Volatge: 9V layer-built battery / 2 li-ion batteries to form a 8.4V battery pack
- Resolution of Resistance Measurement: 0.1 ohms
- The Highest Measured Value: 50M ohms
- Provided Testing Current: Approx. 6mA
- Product Size: 7.2 * 6.25cm (L * W)

Package List:
- 1 * ESR Meter Transistor Tester
