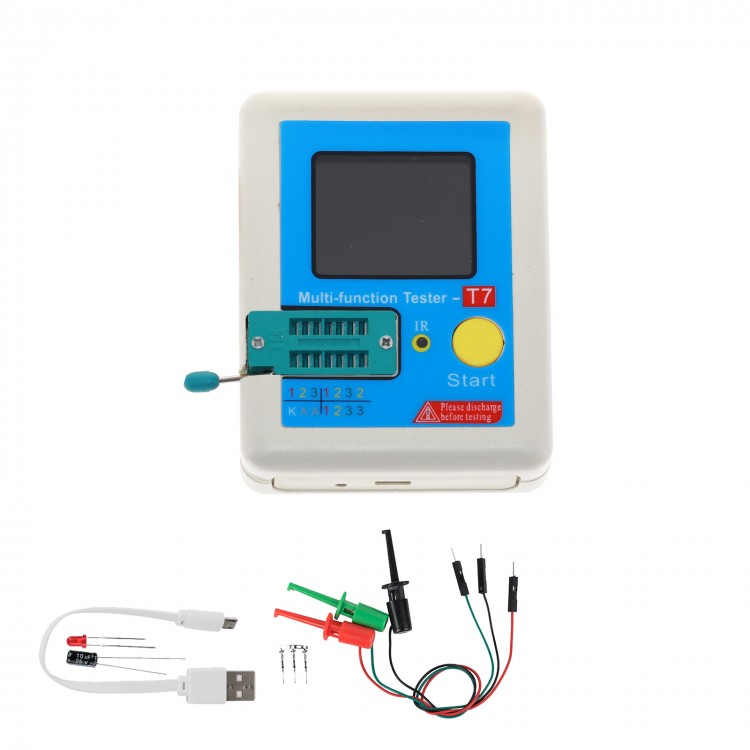

LCR-T7 Transistor Tester Kit LCD Diode Triode Capacitance Resistor Inductance MOSFET NPN PNP Detector
Description:
3.5" Colorful Display Multi-functional TFT Backlight Transistor Tester for Diode Triode Capacitor Resistor Transistor LCR ESR NPN PNP MOSFET.
Features:
- It can be widely used to detect NPN and PNP transistor, capacitor, resistor, diode, triode, N-channel and P-channel MOSFET, IGBT, JFET, voltage, etc.
- It can also be used to detect infrared wave forms.
- It also can detect zener diode and has the function of self-calibration.
- IR Decoding Function:
* After detection, align the infrared remote control with "IR" light, then press the button in the remote control, if the detector successfully decode it, it will display the data code and infrared wave form.
* If the decoding fails or cannot be decoded, the user code and data code are not displayed. At this time, if you are in the tester interface, you cannot enter the infrared decoding interface. If you are in the infrared decoding interface, the last successful decoding information is still displayed.
* The dot in the upper right corner is used to indicate whether the infrared data of the remote control is received, red indicates that infrared data is being received, and blue indicates successful decoding.
- Automatic Calibration:
* Short-circuit three test sockets, short press the multi-function button, the tester will automatically calibrate.
* No need to perform other operations after disconnecting the short wiring according to the prompts during the calibration process.
- One button operation, automatically detect and shutdown, and you can press the multi-functional button to close the detector too.

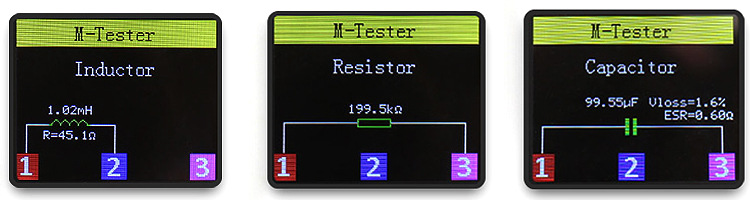

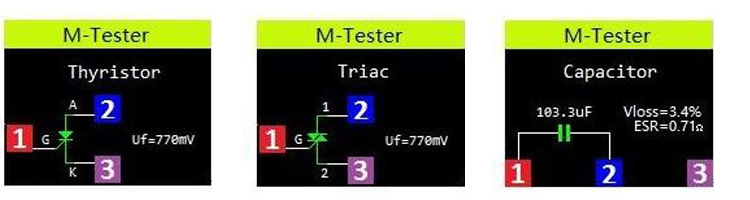

- Put the pins of component in corresponding area, then dial the little handle and the detector will test it automatically, finally the results will display on the back light TFT screen clearly.
- Not like the usual black and white display, this detector will show results in color.
Specifications:
- Display: 3.5-inch TFT Screen
- Diode Range: < 4.5V
- Zener Diode:Transistor Detect Area: 0.01-4.5V
- Zener Diode Detect Area: 0.01-30V
- Triac Range: IGT < 6mA
- Capacitance: 25pF-100mF
- Resistor: 0.01-50MΩ
- Inductance: 0.01mH-20H
- Power Supply Mode: Rechargeable
Package Included:
- 1 x Set of Transistor Tester
Note:
- Please use external 5V power supply or mobile phone USB power supply for charging.
- Indicator is red means charging, and indicator is green means charging is completed.
- The charging input voltage is 6V, please do not use it under over-voltage, otherwise it will damage the tester and may explode.
