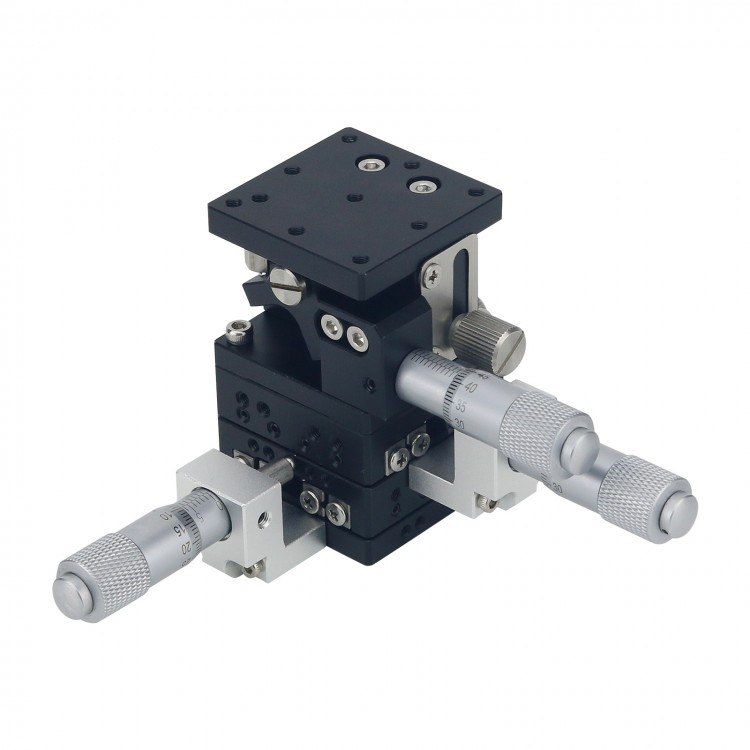

LD40-CM 40x40MM/1.6x1.6" XYZ Axis Sliding Stage Manual Sliding Table with Central Micrometer

LD40-CM 40x40MM/1.6x1.6" XYZ Axis Sliding Stage Manual Sliding Table with Central Micrometer

Features:
- Micrometer head: Its standard pitch is 0.5mm/0.02". Quality alloy micrometer with clear scale which is wear resistant
- Table top: The aluminum alloy body is resistant to corrosion and has high applicability
- Tightening screws: metal material + surface plating process, durable and wear-resistant locking firmer, easy to adjust
- Crossed roller rail: adjustable rail of high hardness works smoothly, with high precision and stable performance
- Base: Made of aluminum alloy, it boasts strong corrosion and wear resistance, and long service life. The performance of the product is stable when used
- Quantitative movement: Rotating the platform can achieve precise adjustment of the angle, turn the platform to the approximate position, use coarse precision switching screws to fix, and then use the side micrometer head for fine adjustment
- It is mainly made of aluminum alloy, which is light weight and easy to install. The top is designed with screw holes and the base with countersunk holes
- Laser engraving: minimum scale 0.01mm/0.0004". Clear, durable, and wear-resistant, featuring more accurate measurement and small error
- Widely used: It can be used for various production machinery inspection devices, precision positioning and quantitative movement with high precision or medium and heavy loads
- Applications: electronics, home appliances, automobiles, medical, smart phones, semiconductors, etc.

Specifications:
- Table top: 40 x 40mm/1.6 x 1.6"
- Travel: XY axis ±6.5mm/0.3"; Z axis 10mm/0.4"
- Load capacity: 19.2N (2kgf)
- Material: aluminum alloy
- Minimum scale: 0.01mm/0.0004"
- Accuracy: 0.02mm/0.0008"
- Parallelism: 0.02mm/0.0008"
- Weight: 0.44kg/1lb

Package Included:
- 1 x Sliding Table
