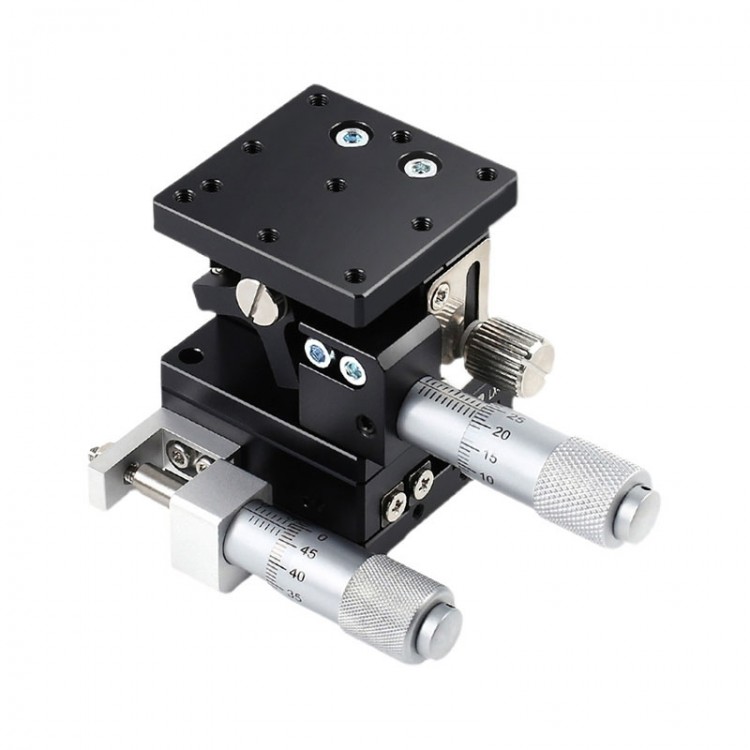

LE60-L 60x60MM/2.4x2.4" Sliding Stage Manual Sliding Table XZ Axis Precise Optical Lifting Platform
Features:
- XZ axis optical lifting platform
- Made from high quality materials
- Stable performance and easy installation
- Working table top: The aluminum alloy body is lightweight and corrosion-resistant
- Limit and locking screw: made of stainless steel, it is anti-rust and can used in a complex environment
- Guide rail: Ball-bearing and rail enables high-precision and smooth movement
- Micrometer: quality alloy micrometer with clear scale which is wear-resistant
- Applications: electronics, home appliances, automobiles, medical, smart phones, semiconductors, etc.
Specifications:
- Model: LE60-L
- Table top: 60 x 60mm/2.4 x 2.4"
- Travel: X axis ±6.5mm/0.3"; Z axis 10mm/0.4"
- Load capacity: 24.5N (3kgf)
- Minimum scale: 0.01mm/0.0004"
- Accuracy: 0.03mm/0.001"
- Parallelism: 0.03mm/0.001"
- Weight: 0.51kg/1.1lb
Package Included:
- 1 x Lifting Platform
