| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $135.69 | $132.92 | $128.77 | $123.23 | Contact US |
LD60-RM-2 XYZ Axis Three-dimensional Trimming Platform High Precision Manual Sliding Table Horizontal Lifting
$125.23
LD60-CM-2 XYZ Axis Three-dimensional Trimming Platform High Precision Manual Sliding Table Horizontal Lifting
$125.23
LD60-LM-2 XYZ Axis Three-dimensional Trimming Platform High Precision Manual Sliding Table Horizontal Lifting
$125.23

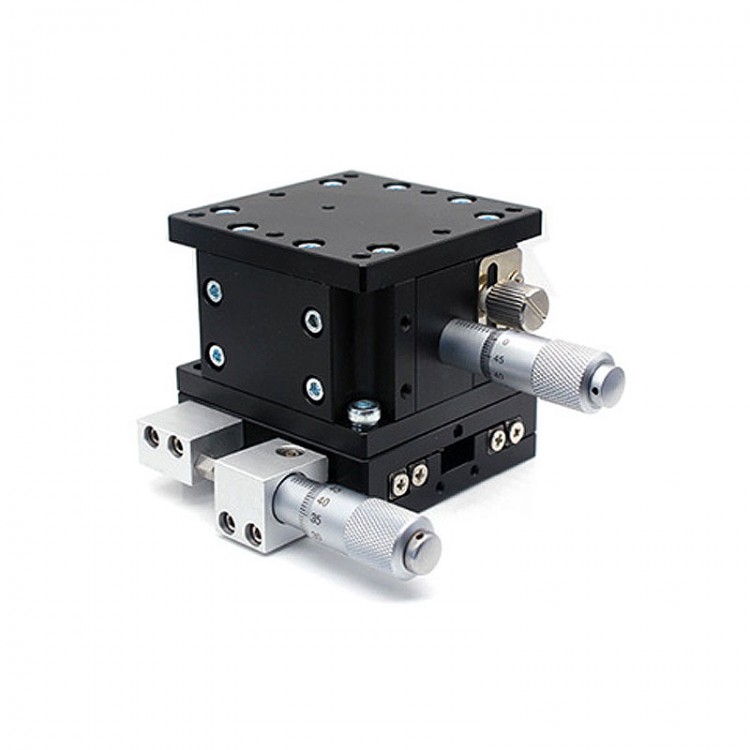

LE90-L-2 90x90MM/3.5x3.5" XZ Axis Sliding Table Precise Optical Lifting Platform w/ Dual Guide Rails
Features:
- XZ axis optical lifting platform
- Made from high quality materials
- Stable performance and easy installation
- Working table top: The aluminum alloy body is lightweight and corrosion-resistant
- Limit and locking screw: made of stainless steel, it is anti-rust and can used in a complex environment
- Guide rail: Ball-bearing and rail enables high-precision and smooth movement
- Micrometer: quality alloy micrometer with clear scale which is wear-resistant
- Applications: electronics, home appliances, automobiles, medical, smart phones, semiconductors, etc.
Specifications:
- Model: LE90-L-2
- Table top: 90 x 90mm/3.5x3.5"
- Travel: X axis ±12.5mm/0.5"; Z axis 10mm/0.4"
- Load capacity: 88.2N (9kgf)
- Minimum scale: 0.01mm/0.0004"
- Accuracy: 0.03mm/0.001"
- Parallelism: 0.03mm/0.001"
- Weight: 1.17kg/2.6lb
Package Included:
- 1 x Lifting Platform
