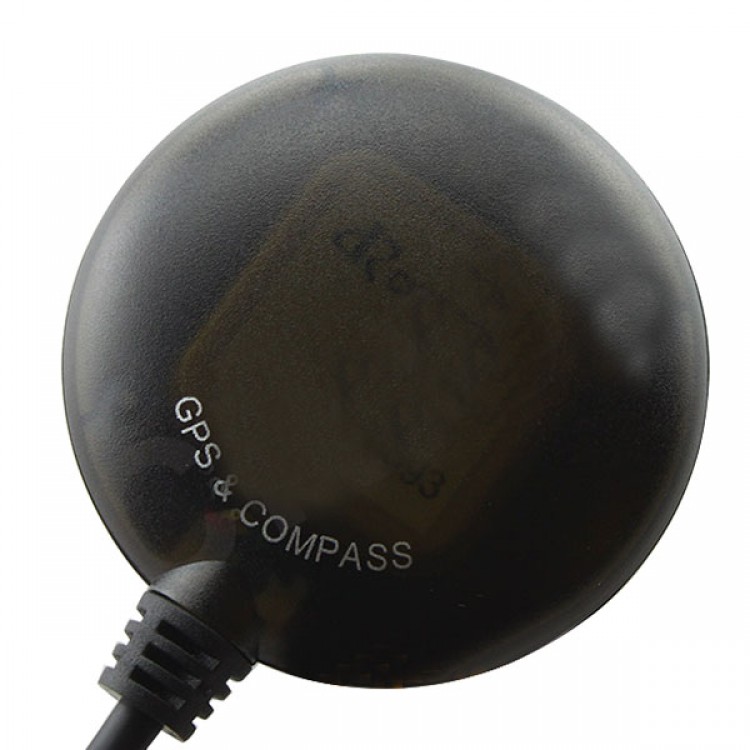

LEA-GPS & MAG v2 u-blox LEA-6H GPS Module w/ HMC5883L Compass for APM Flight Control
Description:
- This is the best performance GPS module with HMC5883L compass. It can be mounted away from sources of interference. It features active circuitry for the ceramic patch antenna, rechargeable backup Capacitors for warm starts, and I2C EEPROM for configuration storage.
The GPS pre-configured for use with APM / Pixhawk and include cable for APM.
Change the 1.25-5P plug shell to 6P to fit Pixhawk.
Features:
- Suitable for APM interface
- u-blox LEA-6H GPS module
- 5Hz update rate
- Built-in Flash for save configuration
- 25 x 25 x 4mm ceramic patch antenna
- LNA and SAW chip
- 3.3V LDO low noise regulator
- UART (TTL) port with EMI protection
- 3V Rechargeable Backup Capacitors
- Fix indicator LED
- Reverse polarity protection for input power
Default parameter
- UBX protocol
- Baud rate : 38400
- Nav rate : 4Hz
- TIMEPULSE (fix LED) rate : 1Hz
Other
- Dimension: 50 x 57 x 13mm
- Weight: 31g (include cable)
Package content
- LEA-GPS & MAG v2x 1
- 1.25-5P / 1.25-4P cable 270mm x1
- 1.25-6P plug shell x2
