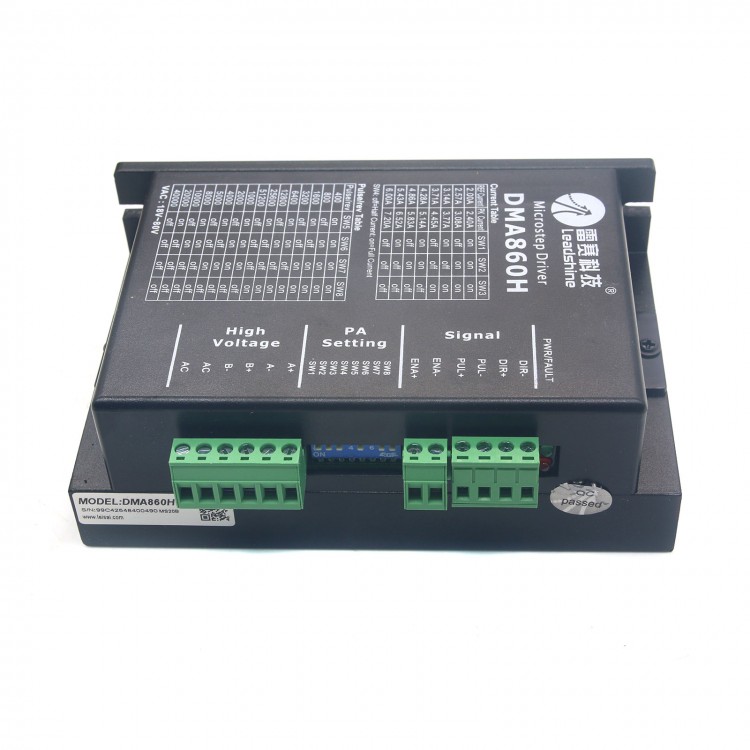

Leadshine DMA860H 7.2A Stepper Motor Driver DC 24-80V for 86 110 2-Phase Stepping Motor CNC
Description:
The MA860H is a high performance microstepping drive based on pure-sinusoidal current control technology. Owing to the above technology and the self-adjustment technology (self-adjust current control parameters) according to different motors, the driven motors can run with smaller noise, lower heating, smoother movement and have better performances at higher speed than most of the drives on the markets. It is suitable for driving 2-phase and 4-phase hybrid stepping motors.
Features:
- Extremely cost-effective
- Good high speed performance
- Supply voltage up to 80VAC or +110VDC
- Output current up to 7.2A
- Self-adjustment technology
- Pure-sinusoidal current control technology
- Pulse input frequency up to 300 KHz
- TTL compatible and optically isolated input
- Automatic idle-current reduction

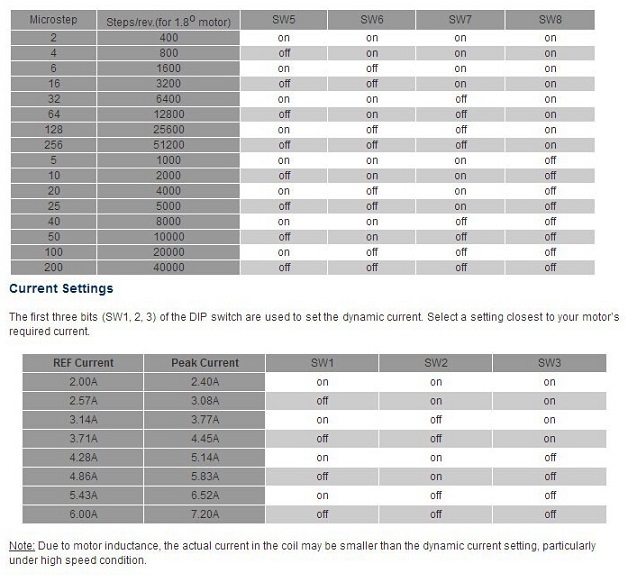

- 16 selectable resolutions in decimal and binary, up to 51,200 steps/rev
- Suitable for 2-phase and 4-phase motors
- Support PUL/DIR and CW/CCW modes
- Short-voltage, over-voltage, over-current and short-cicuit protection
Packing Content:
- 1 x Stepper Motor Driver
