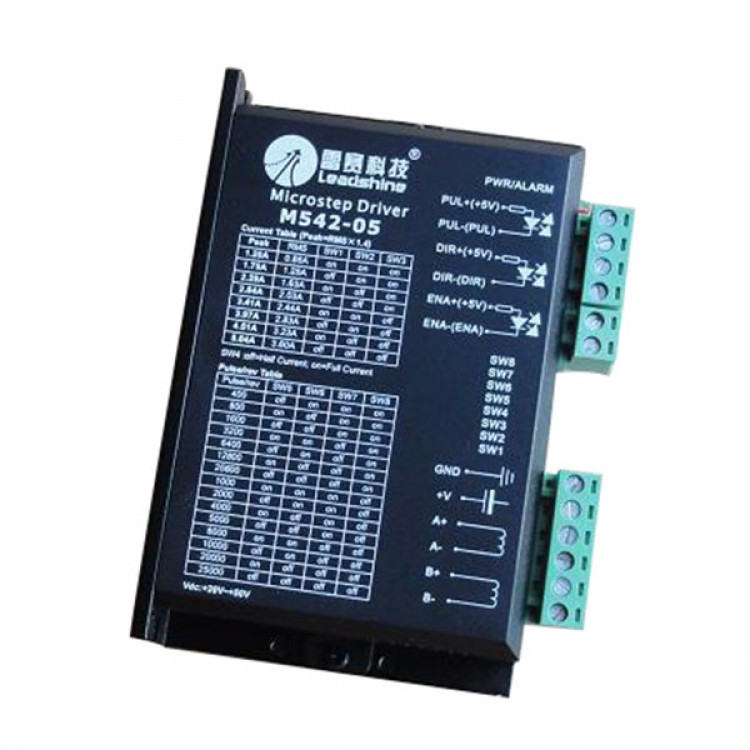

• Leadshine M542-05 2-phase Stepper Motor Driver 24-50V 1.2A-5.0A Motor Driver 5V Signal Input

Leadshine M542-05 2-phase Stepper Motor Driver 24-50V 1.2A-5.0A Motor Driver 5V Signal Input

Availability: In stock, usually dispatched in 1 business day

  • Price:$48.47
  • Price in reward points: 485 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $47.50 $46.53 $45.08 $43.14 Contact US
Quantity:

Leadshine M542-05 2-phase Stepper Motor Driver 24-50V 1.2A-5.0A Motor Driver 5V Signal Input

M542-05



Features:

*Heatsink integrated and connectors included

*Input: 20-50 VDC

*Output: 1.0 - 4.2A

*Microstepping options: 1/2, 1/4, 1/8, 1/16, 1/32, 1/64, 1/128; or 1/5, 1/10, 1/20, 1/25, 1/40, 1/50, 1/100, 1/125

*DIP switch current options: 1.20A, 1.75A, 2.29A, 2.84A, 3.41A, 3.97A, 4.51A, 5.04A

*Low motor heating because of the implementation of 3-state current control technology

*Support: PULSE/DIRECTION & CW/CCW modes

*Self-adjustment technology

*Pulse input frequency up to 300 KHz

*TTL compatible and optically isolated input

*Automatic idle-current reduction

*15 selectable resolutions, up to 25,600 steps/rev

*Suitable for 2-phase and 4-phase motors

*Short-voltage, over-voltage, over-current and over temperature protection

*Dimensions: 4.65 X 2.97 X 1.30 inches; 10 oz

*CE, ROHS certified



Specifications:



Model:

M542-05

Phase:

2

Control Mode:

Step & Dir, or CW/CCW

Max Input Frequency:

300Khz

Input Voltage Range:

20 - 50 VDC

Suggested Power Supply Voltage Range:

24-48 VDC

Output Current:

1.20 - 5.04 A

# of DIP Switch Resolution Configurations:

15

DIP Switch Resolution Setings:

400, 800, 1600, 3200, 6400, 12800, 25600, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 25000

# of DIP Switch Current Configurations:

8

DIP Switch Current Configurations:

1.20A, 1.75A, 2.29A, 2.84A, 3.41A, 3.97A, 4.51A, 5.04A

Logic Current Range:

7-16mA      (10mA typical)

Logic Voltage Range:

4-5 VDC for pulse active high (default) , or 0-0.5V for pulse active low

Pulse enabled at:

Rising edge

# of Digital Inputs:

3

Step Width:

1,500 ns

Minimal Direction Setup Time:

5,000 ns

Isolation Resistance:

500M Ohm

Environment:

Avoid dust, oil fog and corrosive gases

Ambient Temporature:

0-50°C

Humidity:

40–95% RH

Operating Temporature:

0-70°C

Vibration:

5.9 m/s2 Max

Storage Temporature:

-20-65°C

Specification:

4.65 X 2.97 X 1.30 Inches

Weight:

0.63 lb



Applications:



Suitable for a wide range of stepping motors, from NEMA size 17 to 34. It can be used in various kinds of machines, such as X-Y tables, engraving machines, labeling machines, laser cutters, pick-place devices, and so on. Particularly adapt to the applications desired with low noise, low heating, high speed and high precision.
