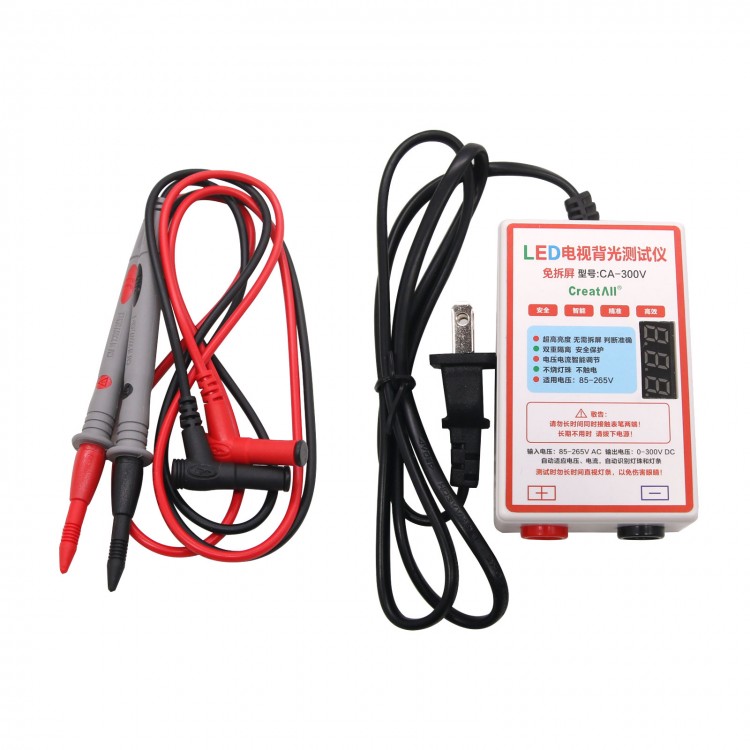

LED TV Backlight Tester TV LED Strip Tester 0-300V Output CA-300V Highlight Version No Disassembling
Features:
- Automatically adapts to voltage and current
- Applied to any size LED TV, perfect backlight inspection and maintenance tool
- Suitable for single LED beads, LED string, LED panel, and Integrated optical LED
- Support testing the voltage of capacitors and diodes
- No need to disassemble your panel to test its LED backlight
- Retardancy Material: Double isolated design makes it safer to test
- Burn Protection: Intelligent voltage and current adjustment
- Safety Design: Slowly to boost and softly to start. Increase current steadily
Main Functions:
- Test the withstand voltage of electrolytic capacitor (Finish in 5s)
- Test the diode’s regulation value (Finish in 3s)
- Test the voltage of your lamp bead board
Specifications:
- Model: CA-300V
- Version: Highlight
- Input Voltage: AC 85-265V
- Output Voltage: DC 0-300V Automatic
- Output Current: 20-40mA
- Power: 18W
- Label Color: Red
- Structure: Power Box
Package Included:
- 1 x LED Tester
- 1 x Pair of Probes 1000V 20A
- 1 x Manual
