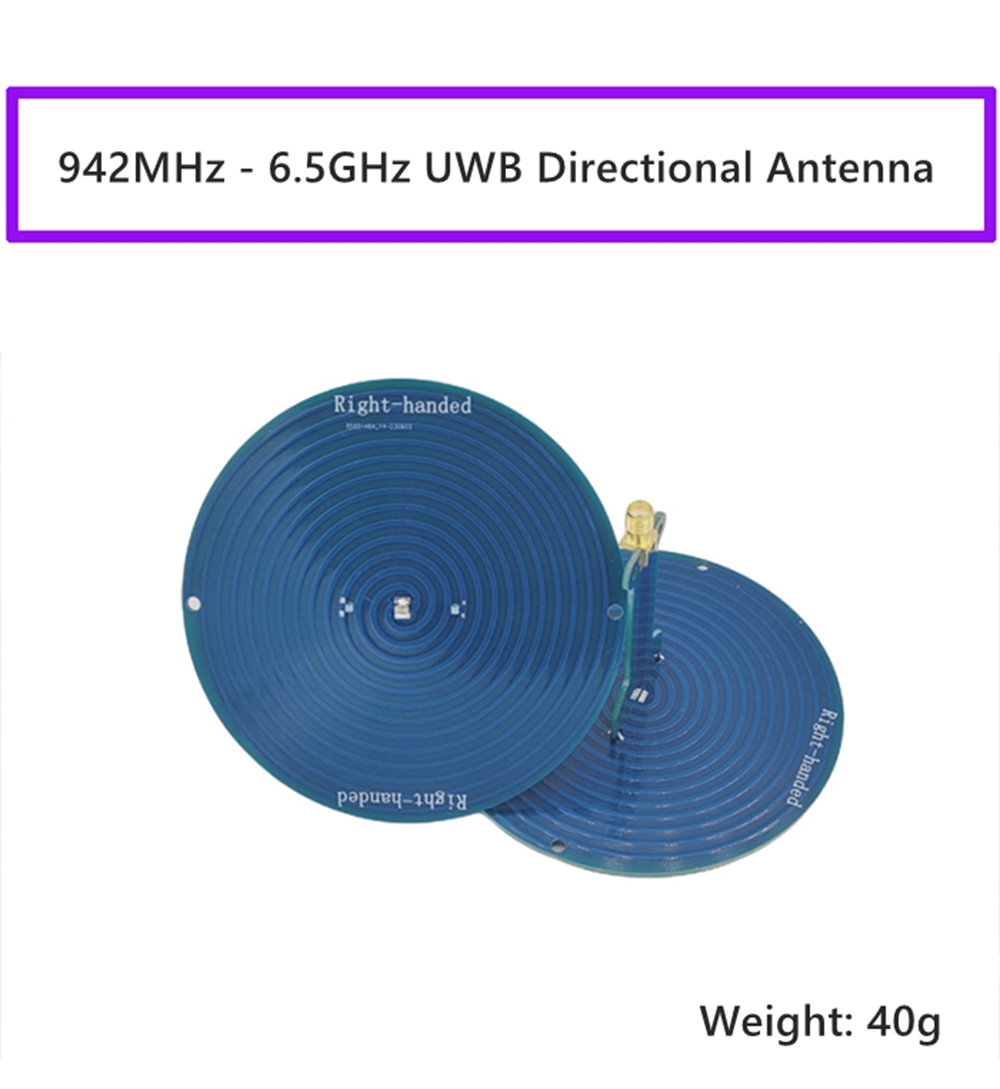

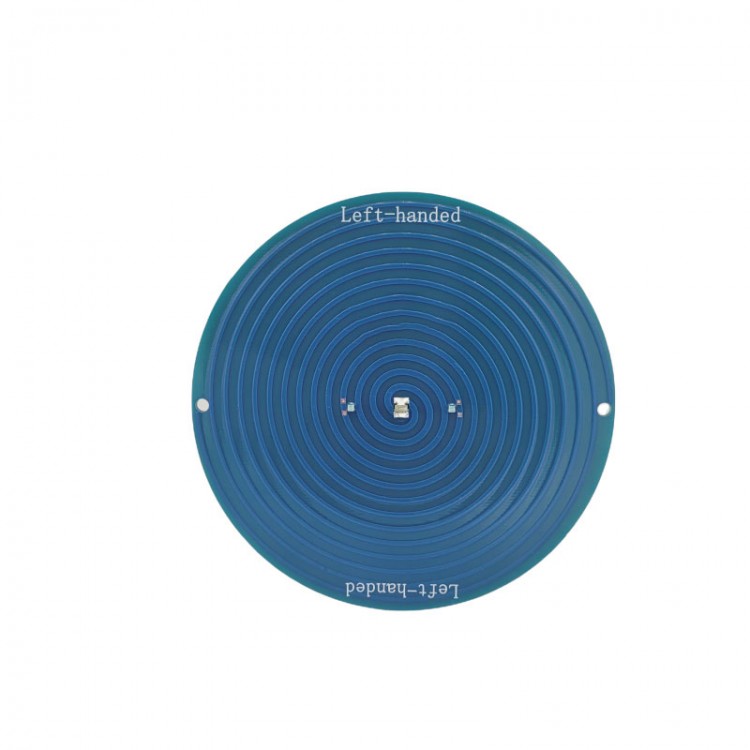

Left-handed 942MHz - 6.5GHz UWB Ultra Wide Band Antenna RF Circular Polarization Archimedes Spiral Antenna
Description:

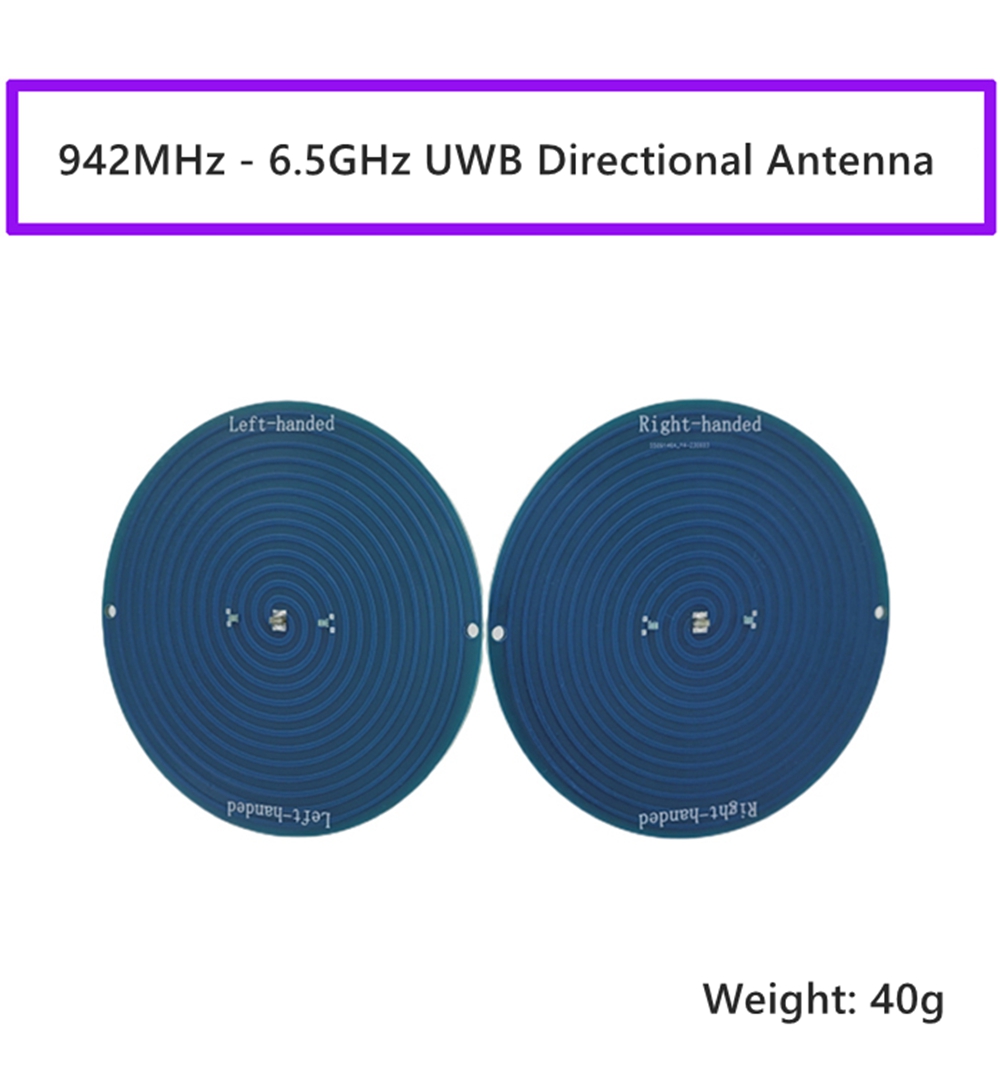

- This antenna is an ultra wideband Archimedes spiral, divided into left-handed circularly polarized and right-handed circularly polarized antennas.
- It can be used for direction finding, spectrum analysis, signal analysis, navigation positioning, broadband measurement, direction finding, etc., providing 5-7dBi circularly polarized directional gain in the frequency range of 942MHz-6.5GHz.
- It is used for typical operating frequencies of 915MHz, 1090MHz ADS-B, 1268MHz-1610MHz GPS, 1420MHz, 2.4GHz, 5.8GHz VTX with low standing wave, high gain, and significant performance.
Specification:
- Working bandwidth: 942MHz - 6.5GHz
- Polarization method: circular polarization left-handed
- Axial ratio: < 1.5dB

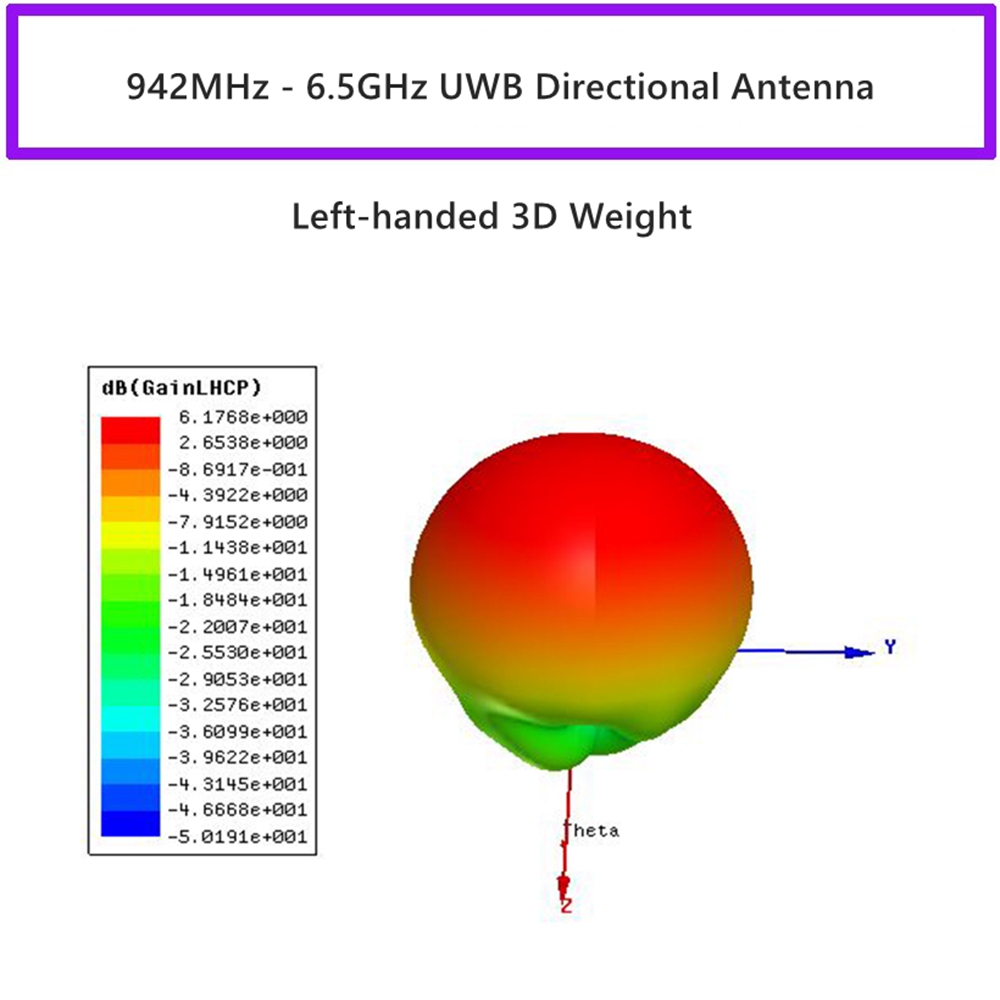

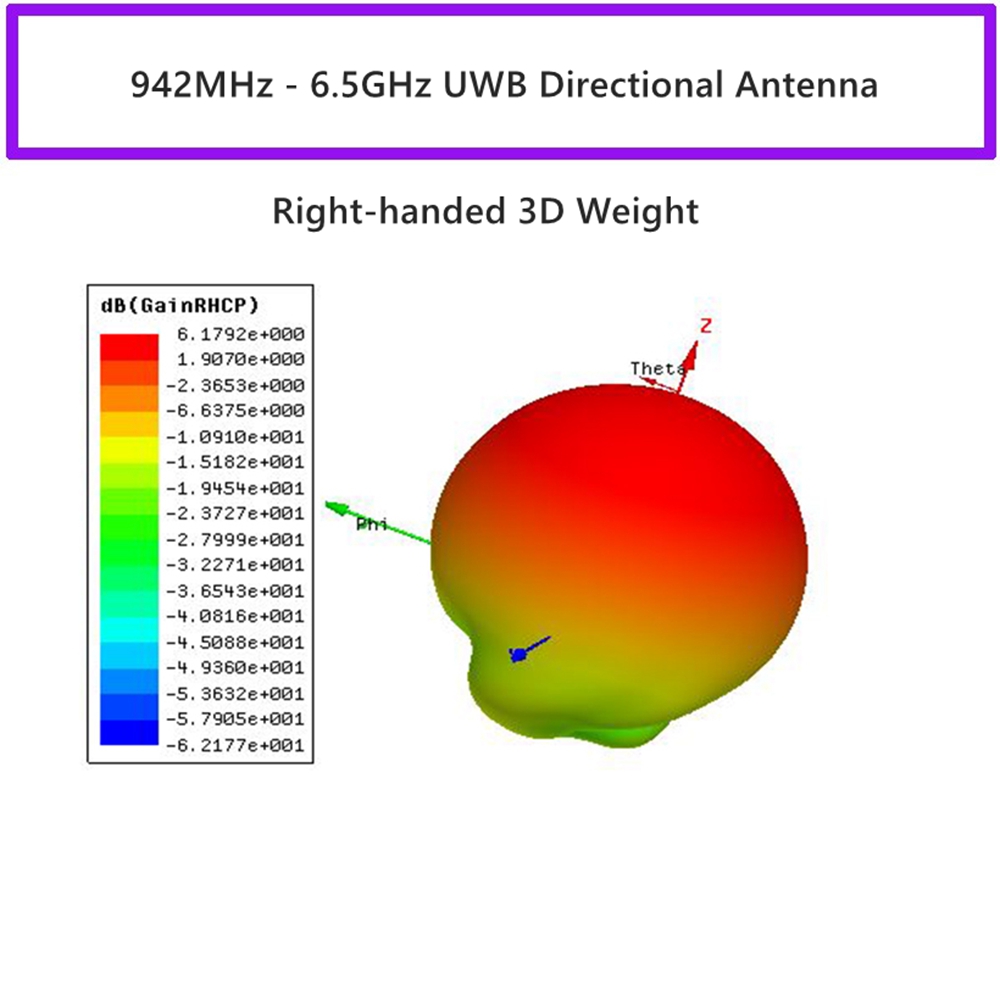

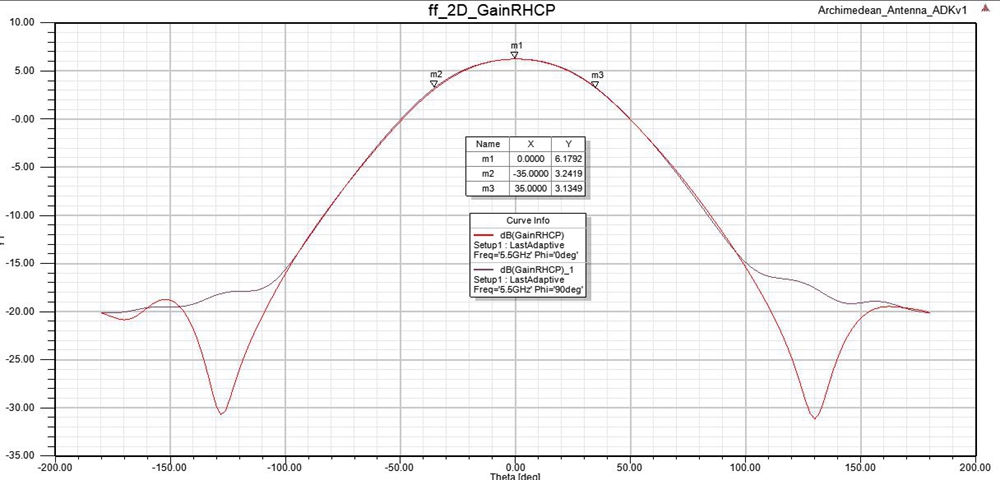

- Radiation angle: H=E=70°

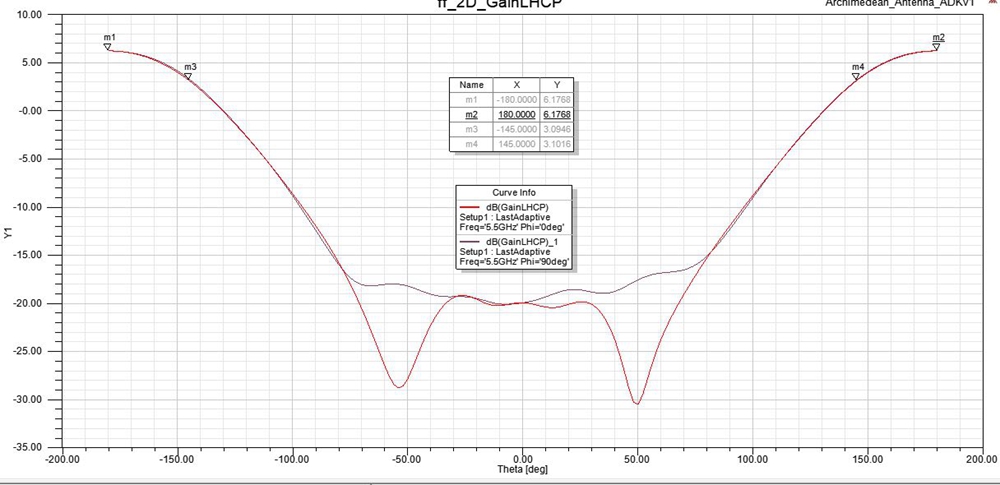

- Gain: 5dBi - 7dBi
- Impedance: 50ohm

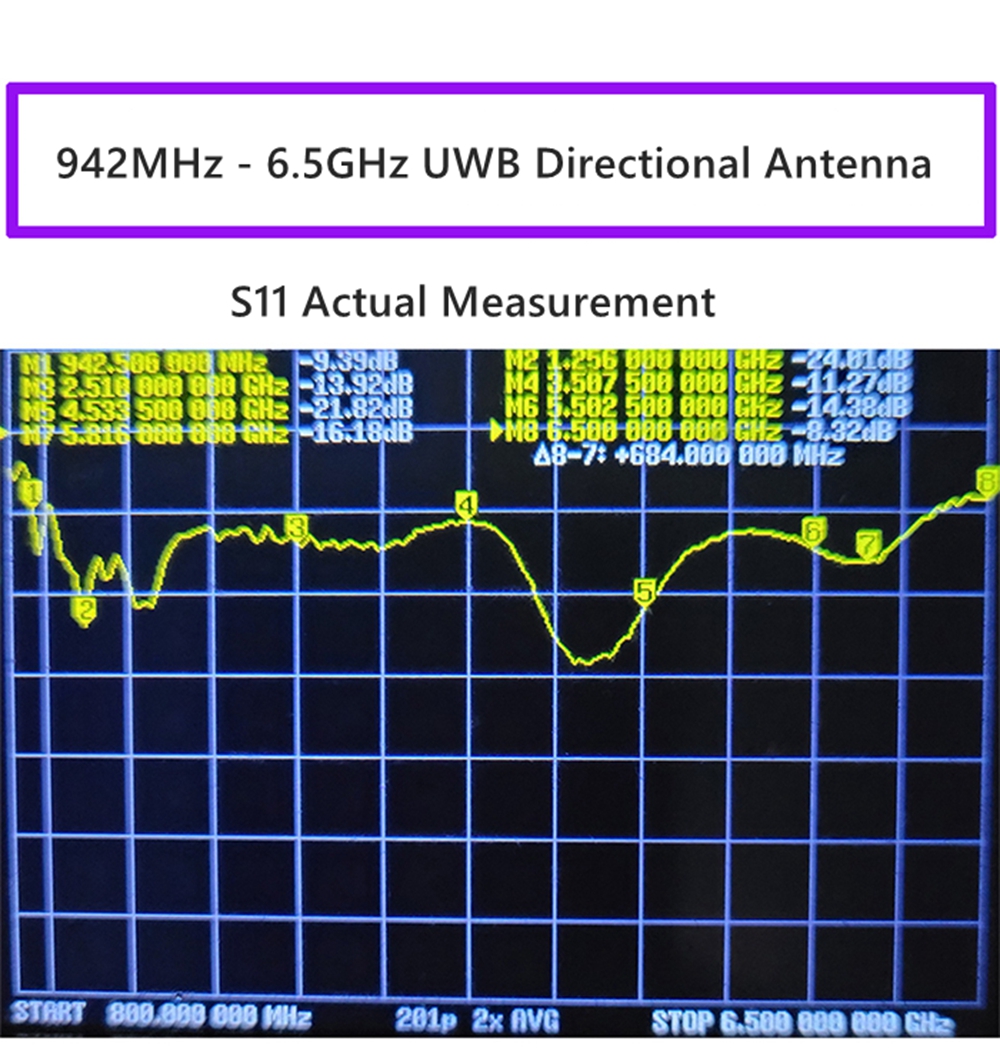

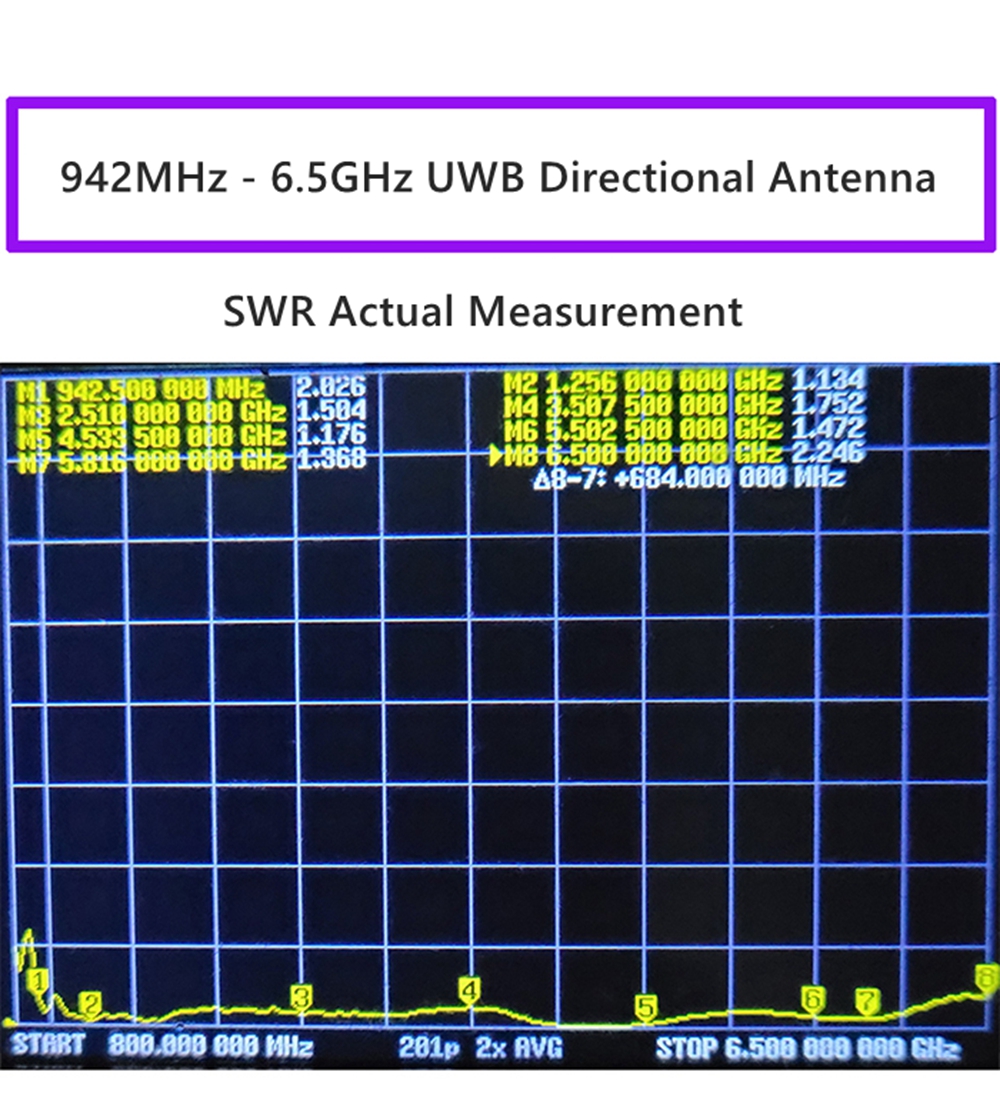

- SWR: < 2.4

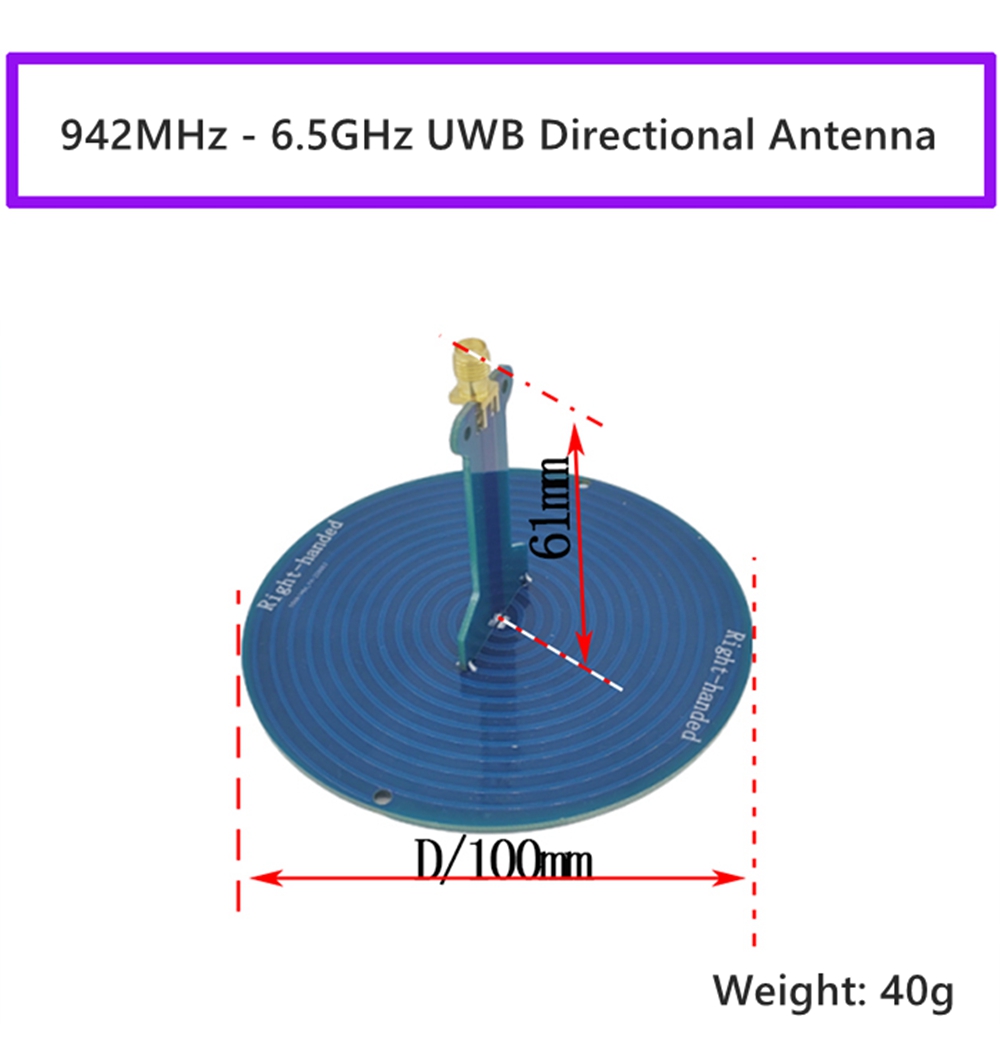

- Size: diameter: 10cm
Package Included:
- 1 x UWB Antenna (SMA female connector)
