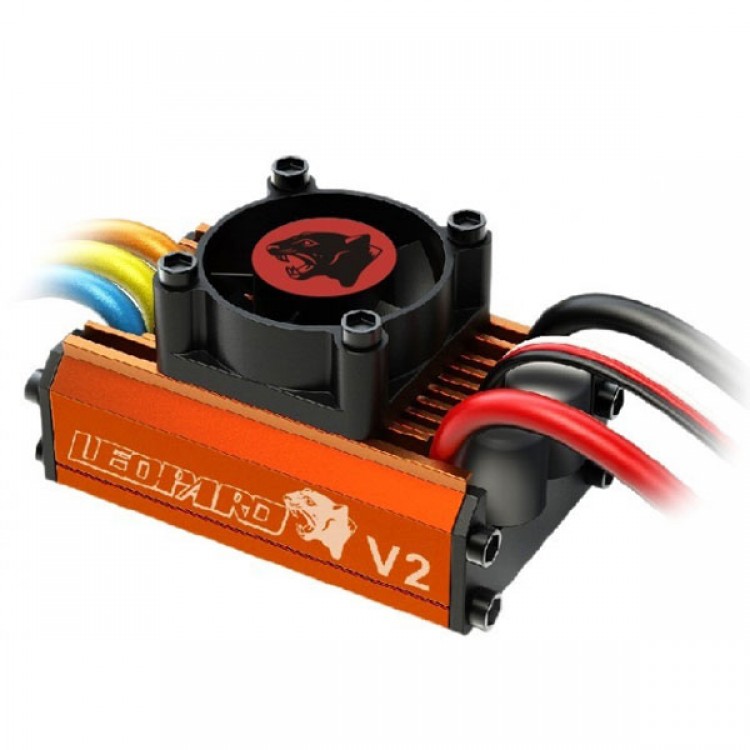

Leopard 60A ESC for 1/10 Scale Car
Description:
- Leopard 60A ESC is high performance 1/10 Scale Brushless Motor Electronic Speed Control.
- The speed controller is specially designed to offer high power and high efficiency combined with low weight and compact dimensions.
Features:
- The leopard 60A ESC is intended for 1:10 scale or small car.
- KV value ＜4500KV for touring car and ＜4000KV for buggy car.
- Automatic cut-off
- Auto neutral setting
- Aoto cell system
- Advanced software
- Over temperature protection
- Fail safe mode
- (motor and program card not included)
| Controls, Leopard 60A ESC V2 | Fwd/Brk or Fwd/Bra/Rev |
| Input Power (Cells) | 2-3S LiPo,4-8S NiCd/NiMh |
| On Resistance, Brushless | 0.001 Ohms per phase |
| Continuous/Burst Current | 60Amp/90Amp |
| Linear BEC | 5V 2Amp |
| Input Power (Cells) 2S LiPo 3S LiPo | Motor Limits On Road:≥9.0T Off Road:≥10.0T On Road:≥10.0T Off Road:≥13.0T |
| Thermal Overload Protection | Yes |
| Dimensions(L*W*H) | 51.6*30*27.4mm(2.03*1.18*1.08in) |
| Weight(With wires) | 78g(2.75oz) |
