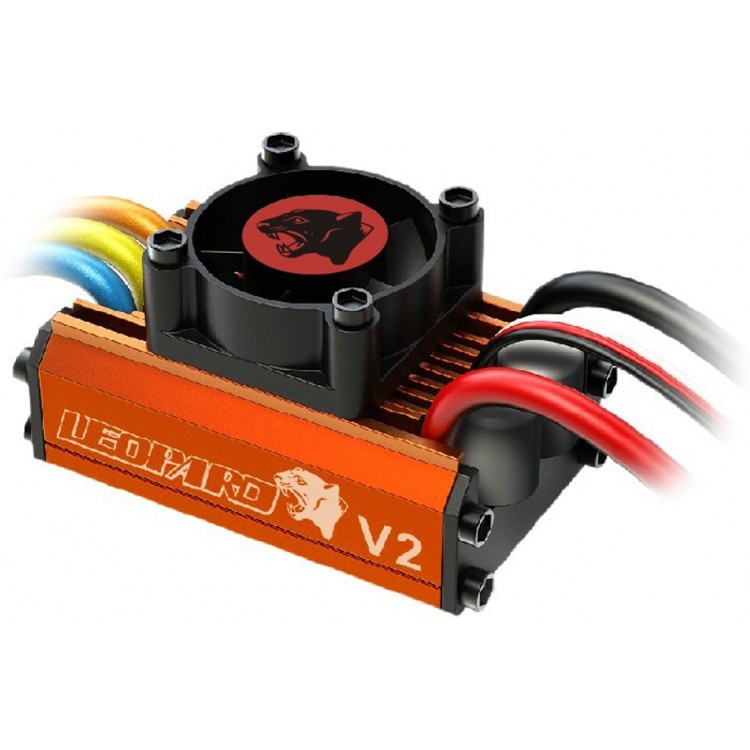

Leopard 60A ESC is high performance 1/10 Scale Brushless Motor Electronic Speed Control.
The speed controller is specially designed to offer high power and high efficiency combined with low weight and compact dimensions.
Features:
- The leopard 60A ESC is intended for 1:10 scale or small car.
- KV value ＜4500KV for touring car and ＜4000KV for buggy car.
- Automatic cut-off
- Auto neutral setting
- Aoto cell system
- Advanced software
- Over temperature protection
- Fail safe mode
- (motor and program card not included)

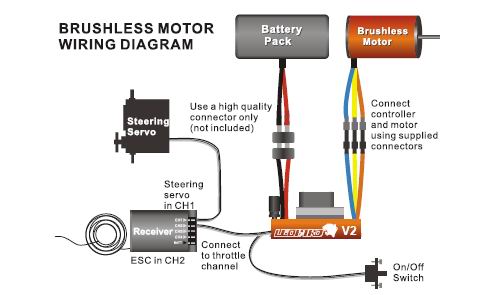

Connections:
Specifications:
|
Controls, Leopard 60A ESC V2 |
Fwd/Brk or Fwd/Bra/Rev |
|
Input Power (Cells) |
2-3S LiPo,4-8S NiCd/NiMh |
|
On Resistance, Brushless |
0.001 Ohms per phase |
|
Continuous/Burst Current |
60Amp/90Amp |
|
Linear BEC |
5V 2Amp |
|
Input Power (Cells) |
Motor Limits |
|
Thermal Overload Protection |
Yes |
|
Dimensions(L*W*H) |
51.6*30*27.4mm(2.03*1.18*1.08in) |
|
Weight(With wires) |
78g(2.75oz) |
