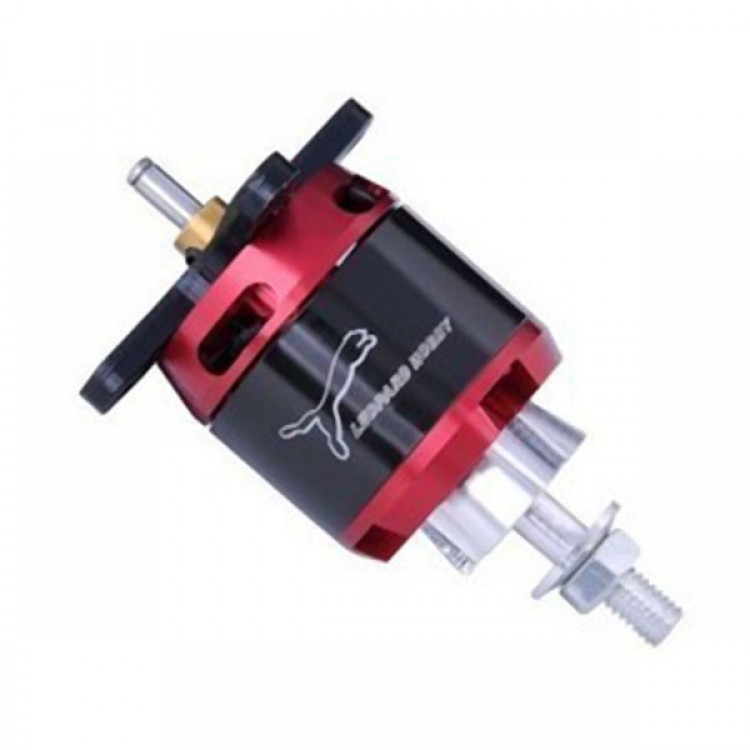

LEOPARD LC3542-6T 920KV 620W 3-4S LiPo Outrunner Brushless Motor
Specfication:
- Can Diameter: 1.38" (35.0mm)
- Can Length: 1.62" (41.2mm)
- Shaft Diameter: .19" (5mm)
- Propeller Adapter Diameter: .23" (6mm)
- Shaft Length: .65" (16.5mm)
- RPM/V (KV Rating): 920KV
- Weight: 4.7oz (135g)
- Input Voltage: 11.1-14.8V (3-4S LiPo)
- Max. Constant Current: 42A
- Max. Surge Current: 45A
- Resistance: 39.3 milliohms
- Burst Watts: 620W
- No Load Current @7.4V: 2.3A
- Recommended Propeller: 11" x 5 to 12" x 8
Package included:
- 1 x motor LC3542-6T
- 1 x prop adaptor
- 1 x prop saver
- 3 x connectors
- 1 x cross type motor mount
