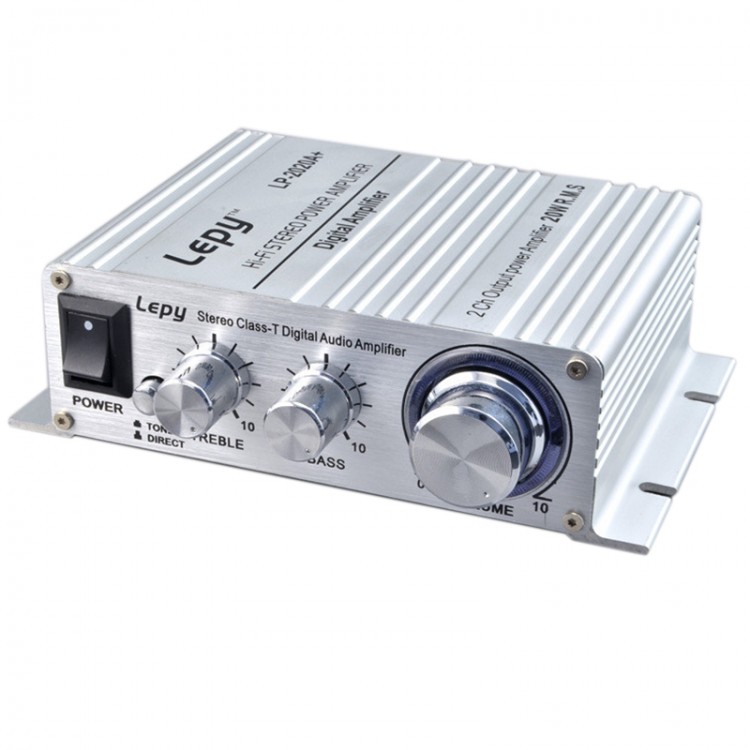

Lepy Class T LP-2024 HI-FI Mini Digital Stereo Digital Small Power Audio Amplifier with Power Adapter Silver
Description:
- 2024A applies audio original sound amplification, can switch between audio and original sound.
- High and low volume adjustment.
- Can connect to the computer, MP3 player, phone, DVD, decoder and digital player, CD, PC, tablet PC.
- TA2024 is a class T digital audio amplifier chip. It applies Digital Power Processing to keep the high fidelity.
- Each channel of 2024 applies teo LCD to get the stabilit when outputting the super power.
- Apply the special relay with the characteristic of small resistor, overcurrent protection and quick response.
Features:
- Class T digital chip
- Power monitoring circuit
- Speaker protection function
- Sided PCB board
- Audio pass-through function
- AUX, RCA input
- HIFI stereo output
- Wire drawingaluminum alloy shell
Parameters:
- Input voltage: 13.6V
- Input current: 5A
- Output power: 2*20W RMS
- Load impedance: 4-8Ohm
- Frequency response: 20Hz-20Hz
- Total harmonic distortion: <1%
- SNR: >80db
- Input sensitivity: 200mV
- Input impedance: 47k
- Color: Silver
Package included:
- 1 x Lepy Class T LP-2024 HI-FI Mini Digital Stereo Amplifier
- 1 x Power adapter 3A
