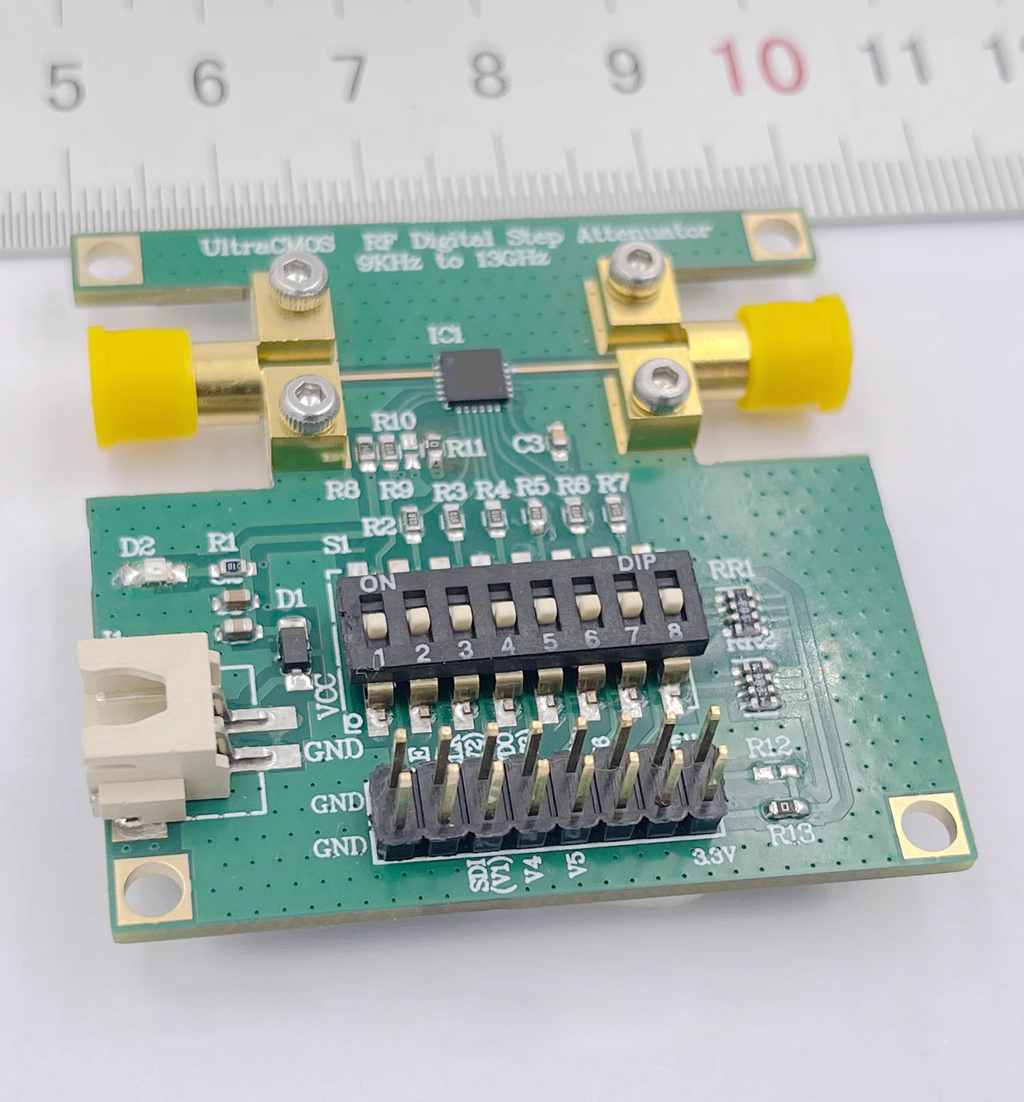

LF-13GHZ 0-31.5DB 9KHz-13GHz Digital Step Attenuator Core Board + Main Control Board + Type-C Cable
Description:

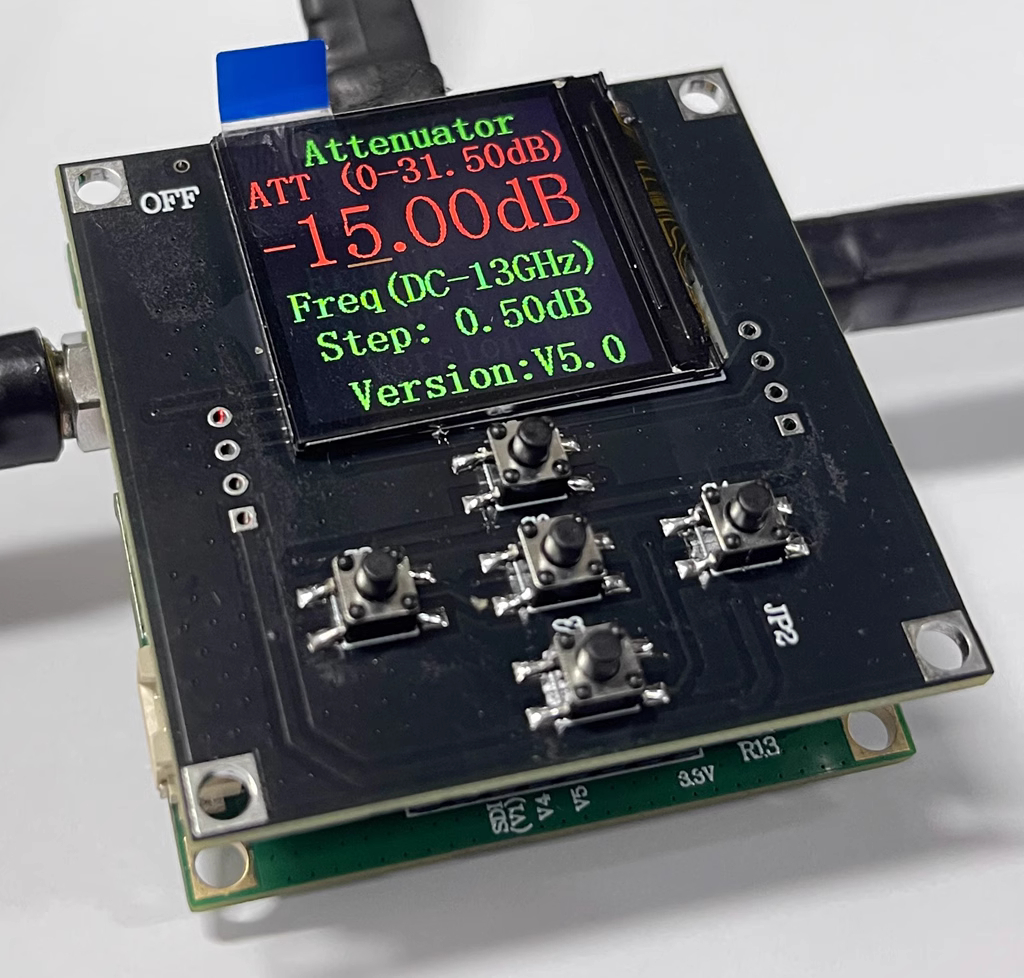

The 13GHz digital step attenuator core board comes with a STM32 main control board. Thus, the product can be used as a digital programmable attenuator.
Basic Parameters:
- Frequency range: 9KHz-13GHz (signal link should not contain DC)
- Maximum input power: 30DBM (1W)
- Input and output impedance: 50 ohms

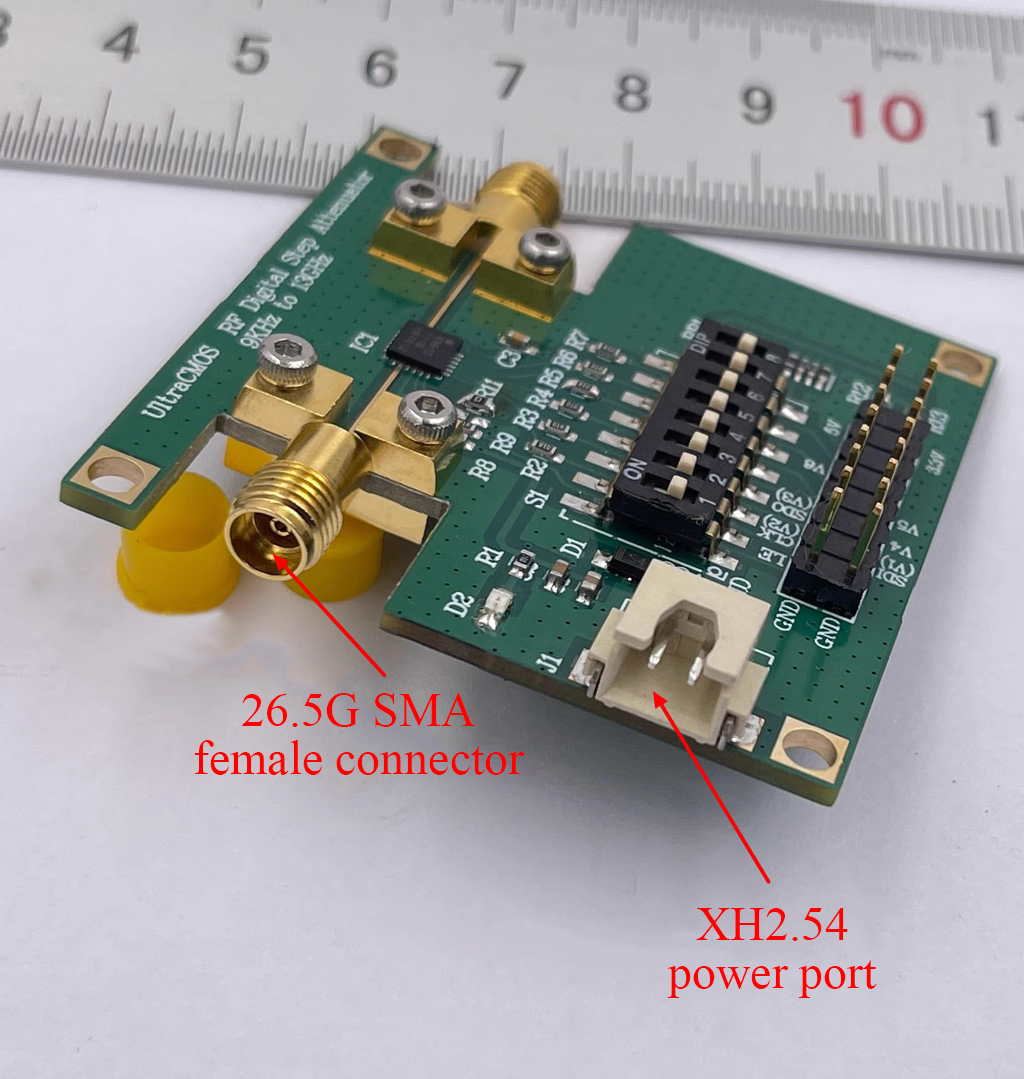

- Input and output interfaces: 26.5G SMA female connectors

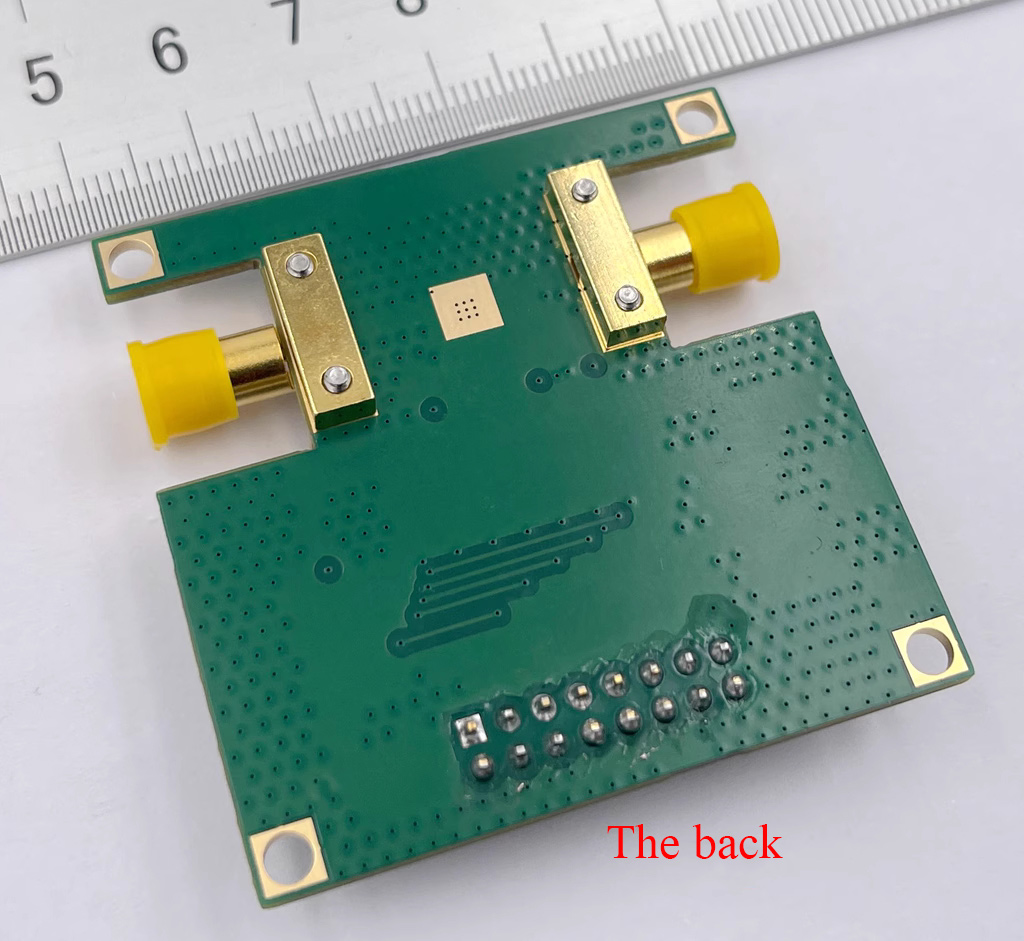

- Core board size: 5cm x 5cm/2" x 2"

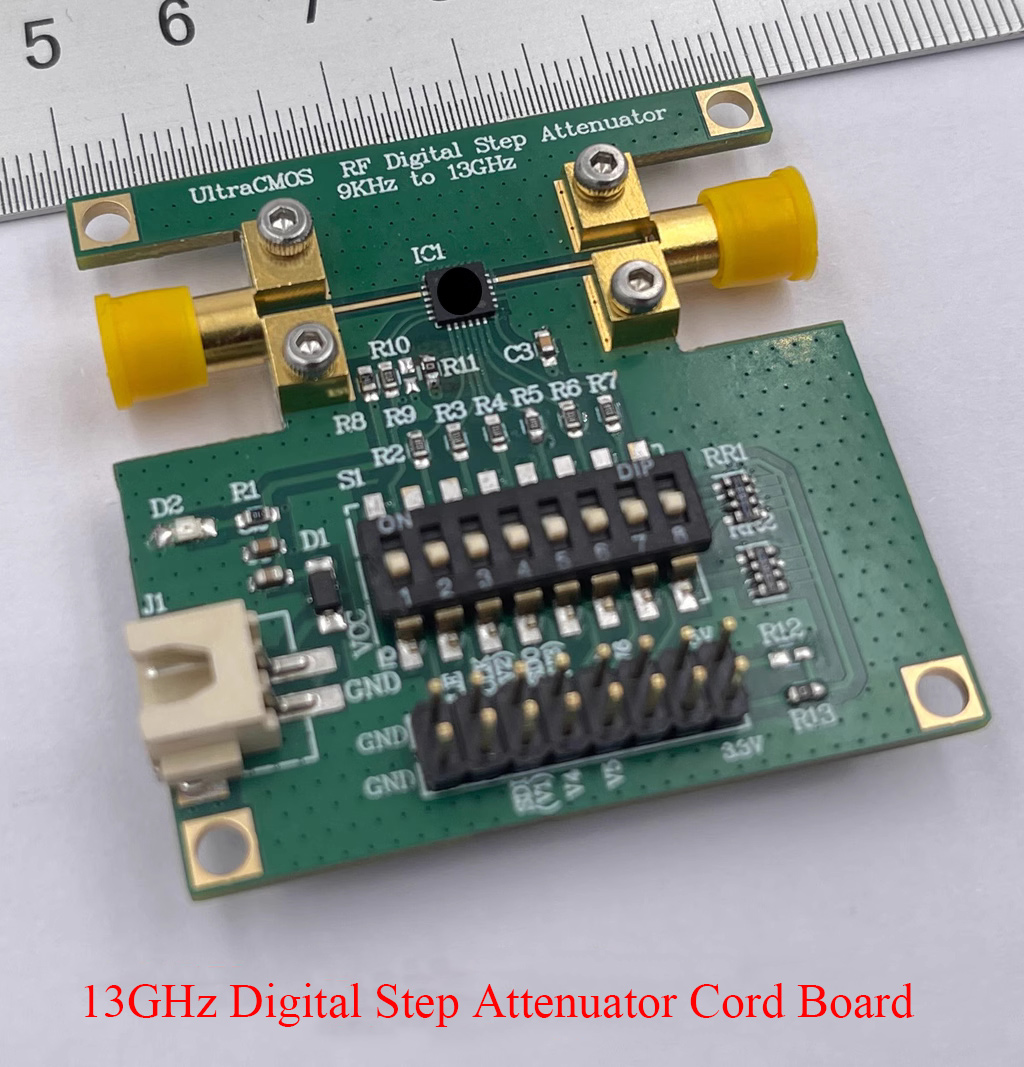

- Attenuator core board: By default, the core board only supports parallel port mode when it is purchased separately. But the core board supports parallel port mode and SPI serial port mode when it is purchased as a whole with a main control board
- For specific insertion loss and error, see the S11 and S21 curves
Package Included:
- 1 x Digital Step Attenuator Core Board + Main Control Board
- 1 x Type-C Cable
Packaging Details:
- Weight: 0.2kg
Measured S-parameters (pay attention to fixed loss):

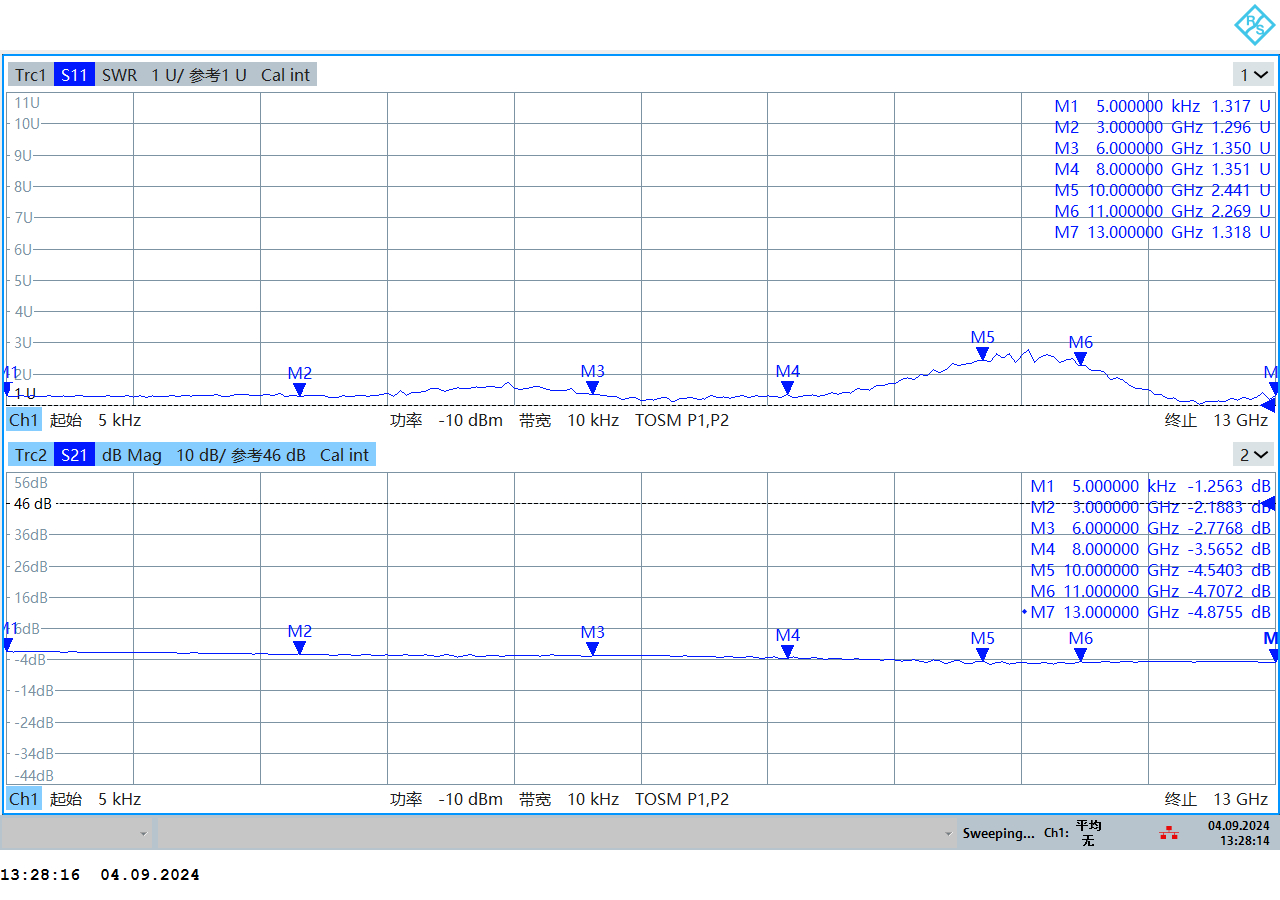

1. Set to 0dB attenuation (pay attention to fixed loss)

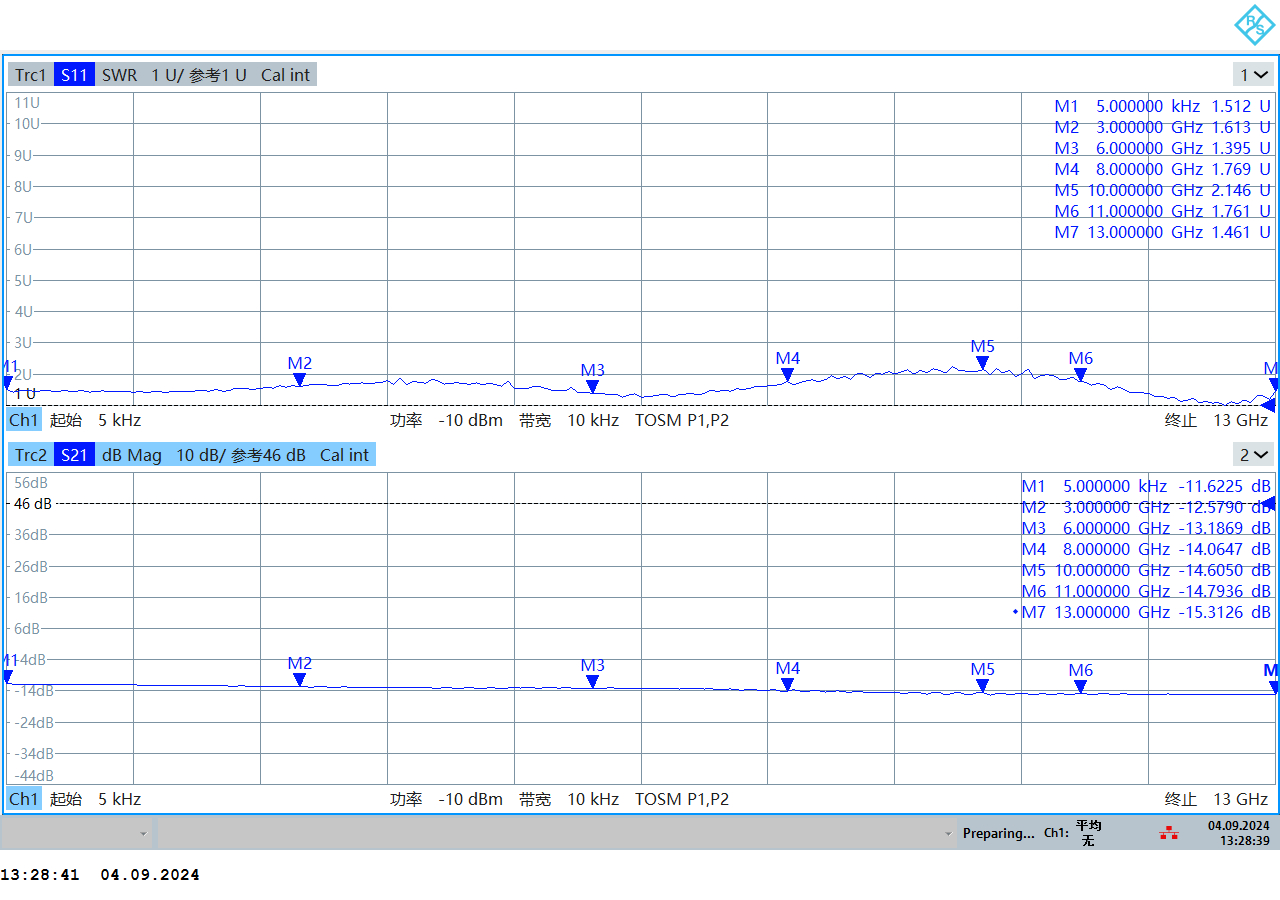

2. Set to 10dB attenuation (pay attention to fixed loss)
3. Set to 20dB attenuation (pay attention to fixed loss)

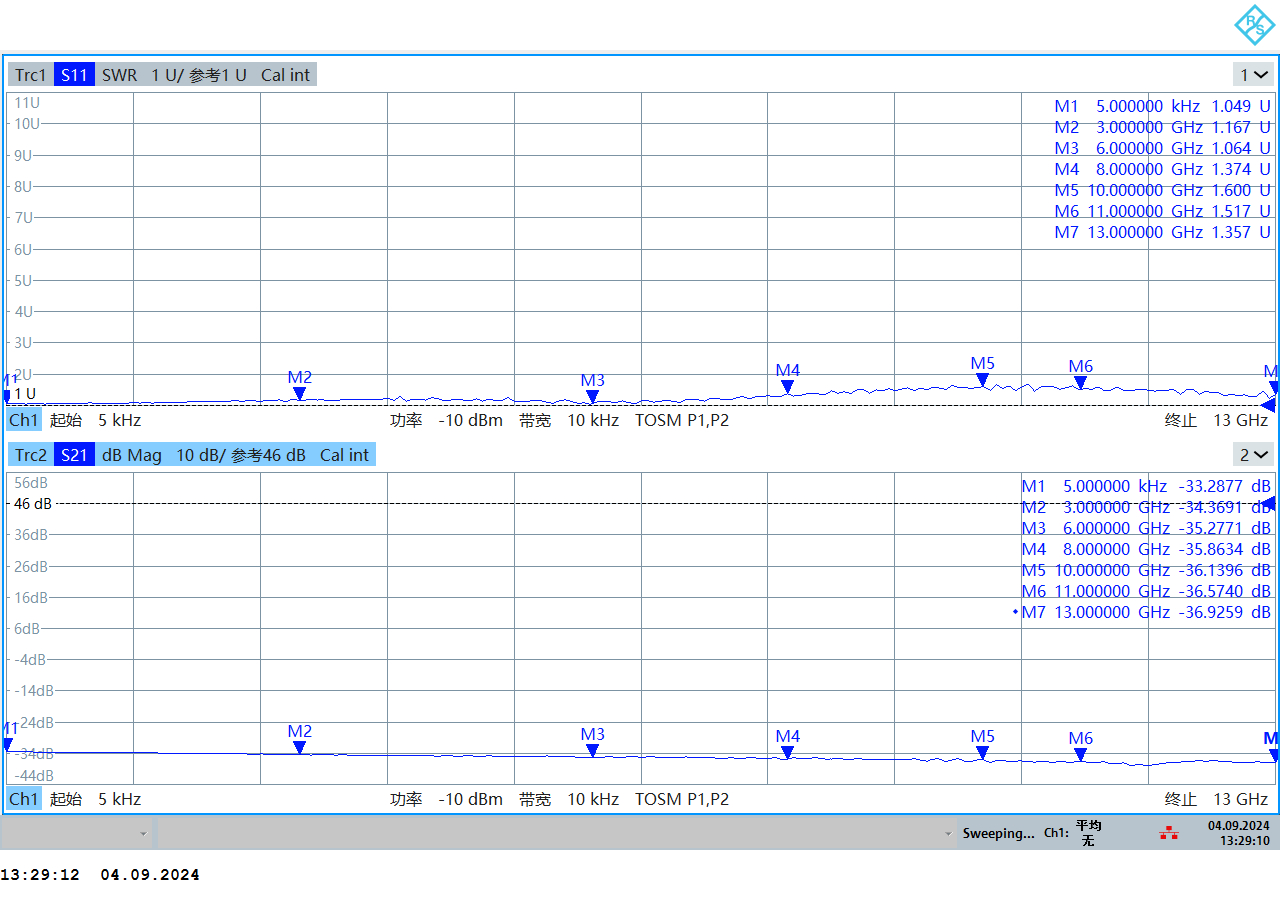

4. Set to 30dB attenuation (pay attention to fixed loss)

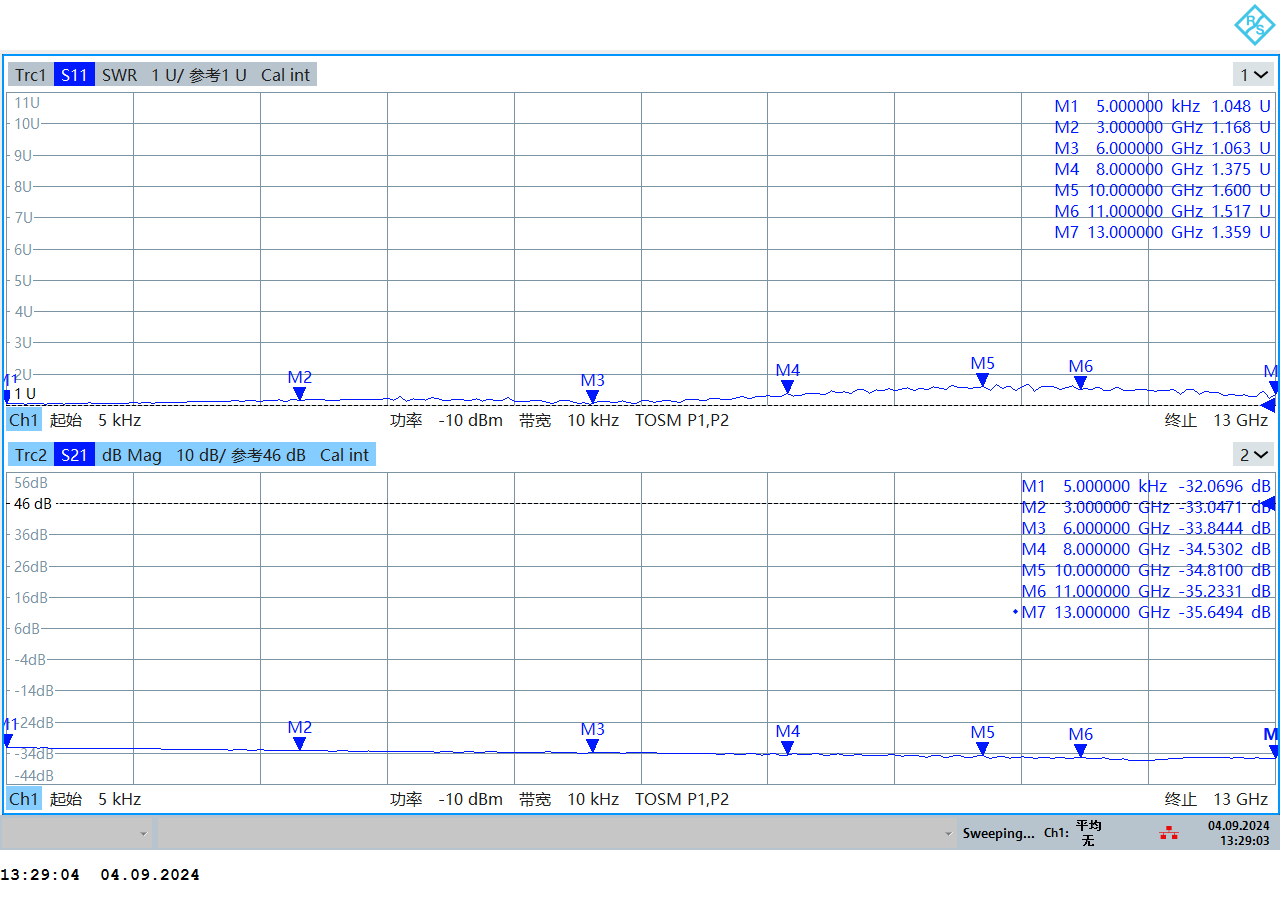

5. Set to 31.5dB attenuation, the maximum attenuation (pay attention to fixed loss)
6. Set to 15dB attenuation (pay attention to fixed loss)
