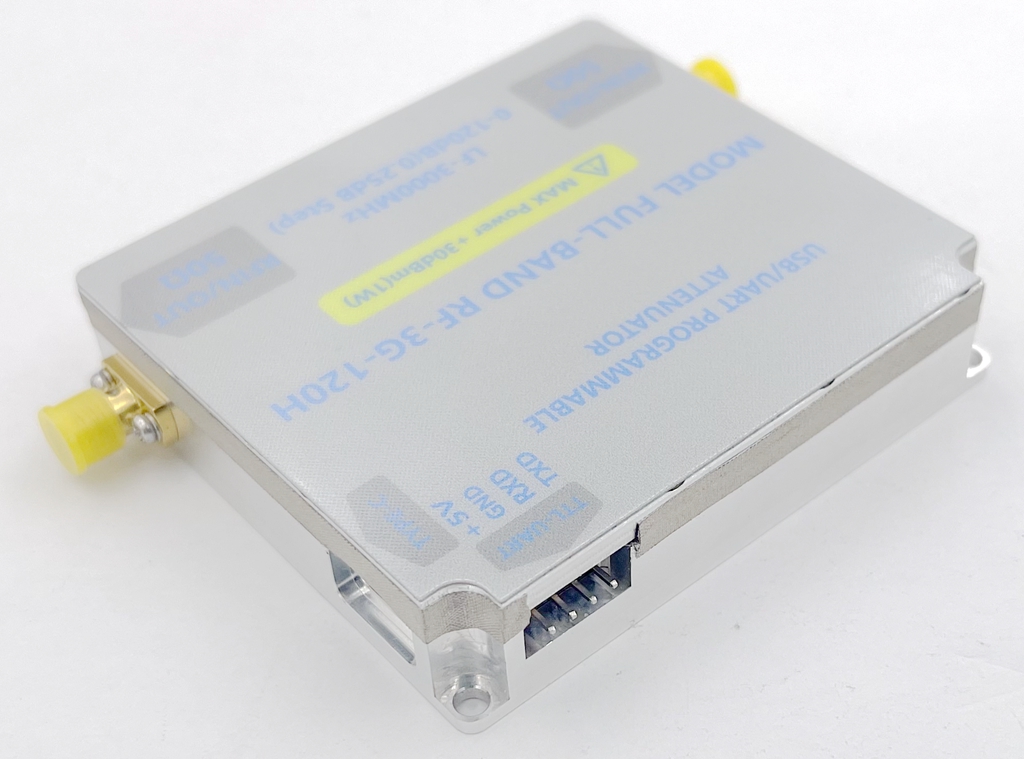

LF-3GHZ-120DB Bidirectional Digital Control RF Attenuator High Isolation Attenuator Module 0.25DB Stepping
Specification:
- Power supply: +5V (Type-C power supply)
- Input and output impedance: 50ohm

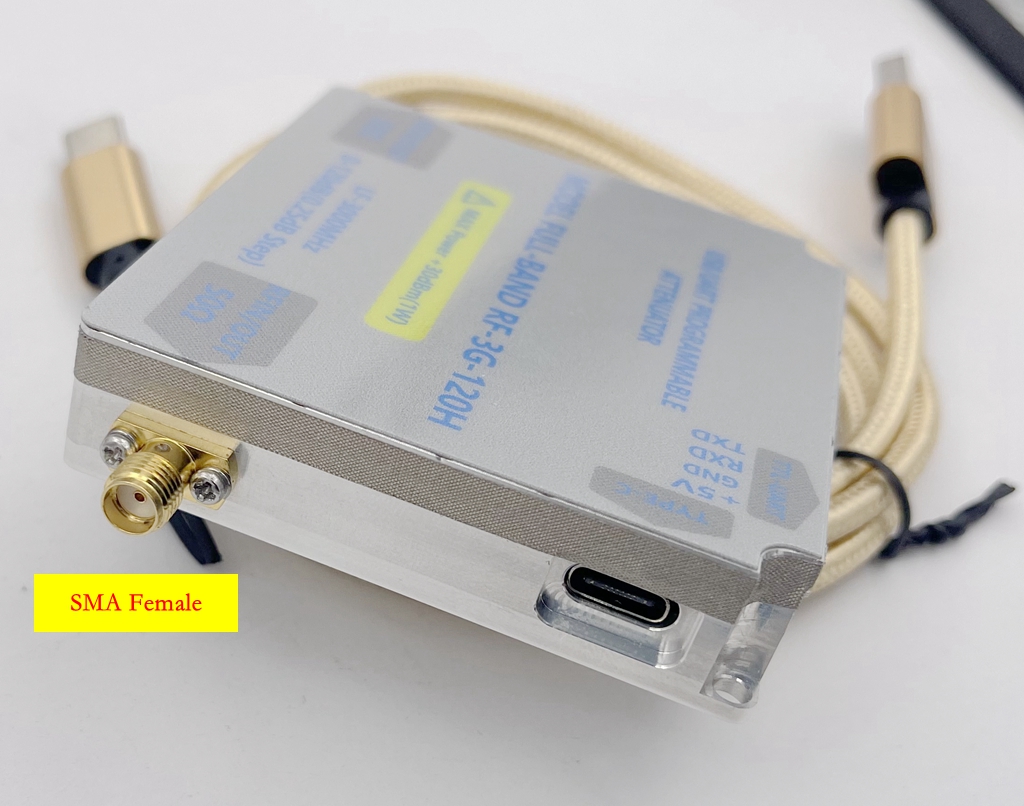

- Output interface: SMA female
- Minimum attenuator stepping: 0.25DB
- Maximum input power; 30dBm (1W)
- Size: L x W x H = 7.4 x 6.6 x 1.5cm

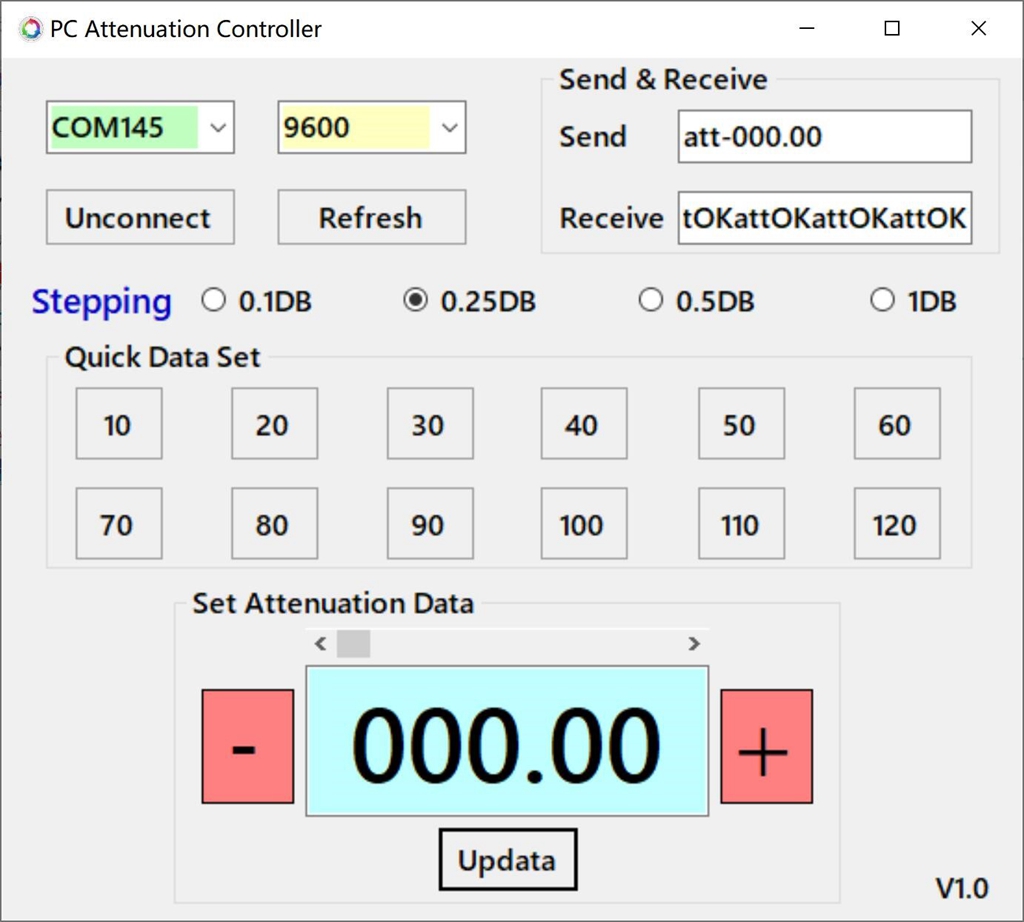

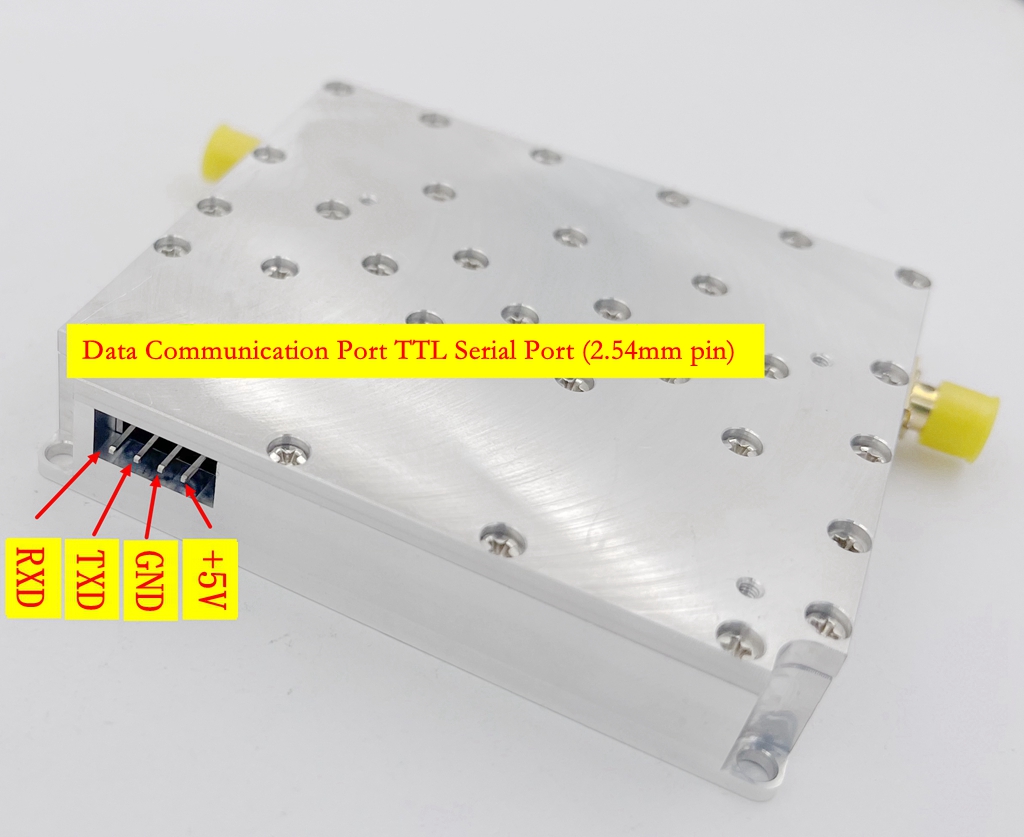

- Communication protocol: support USB and TTL serial port communication
- Working frequency range: LF-3GHz

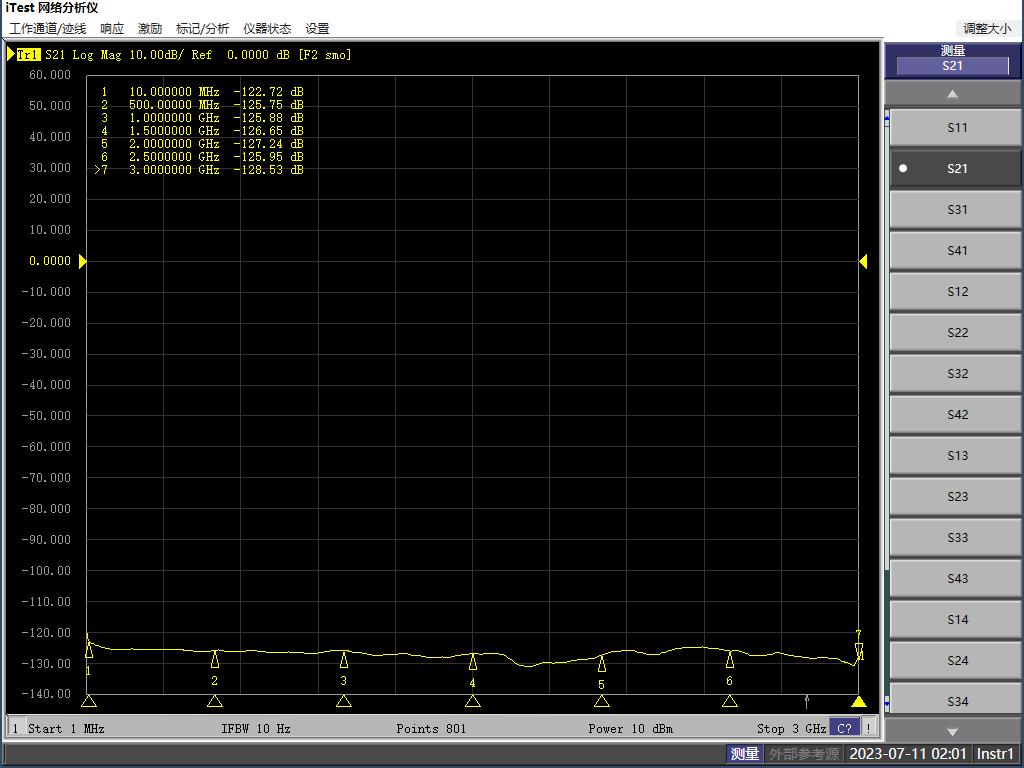

- Isolation: 120DB
Instruction Video:
- https://pan.baidu.com/s/154__nuh0h_b01HGf-yIWOA; password: WYDZ
- https://pan.baidu.com/s/1IOQD0nDgIYfRNPJW3o3_Gw; password: WYDZ

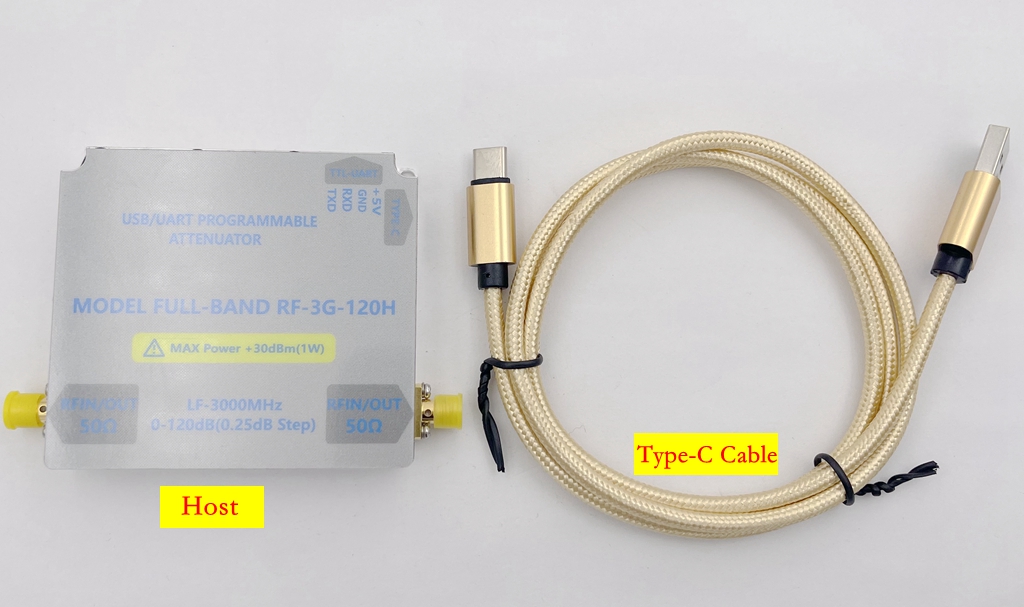

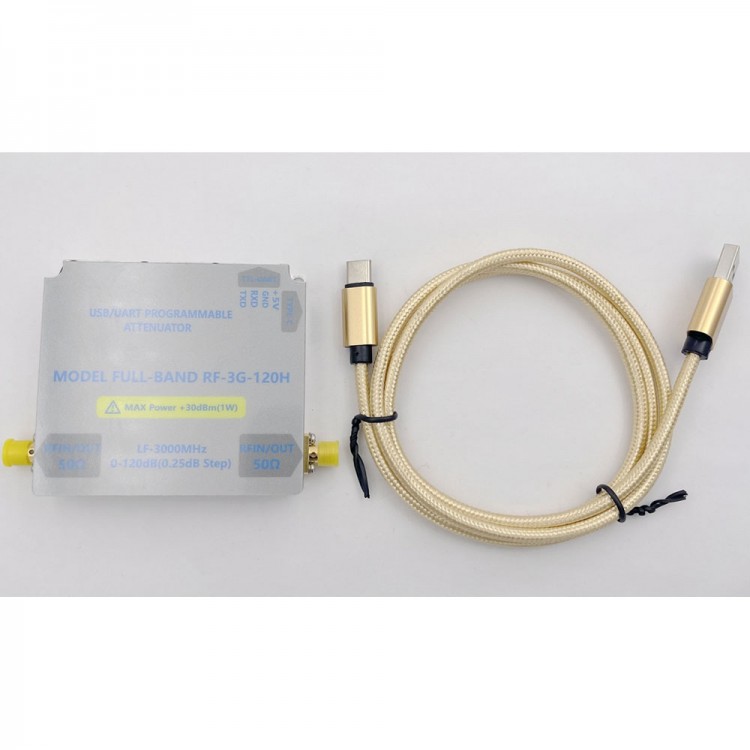

Package Included:
- 1 x Attenuator Module
- 1 x Type-C Cable
