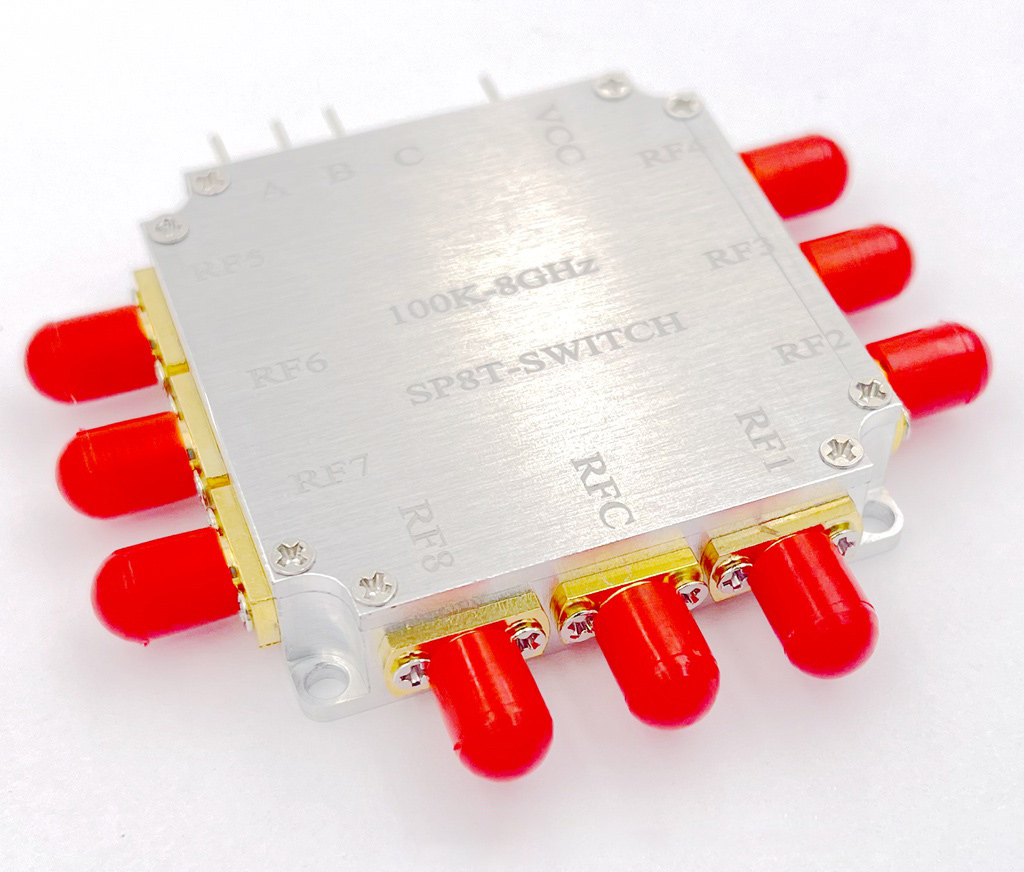

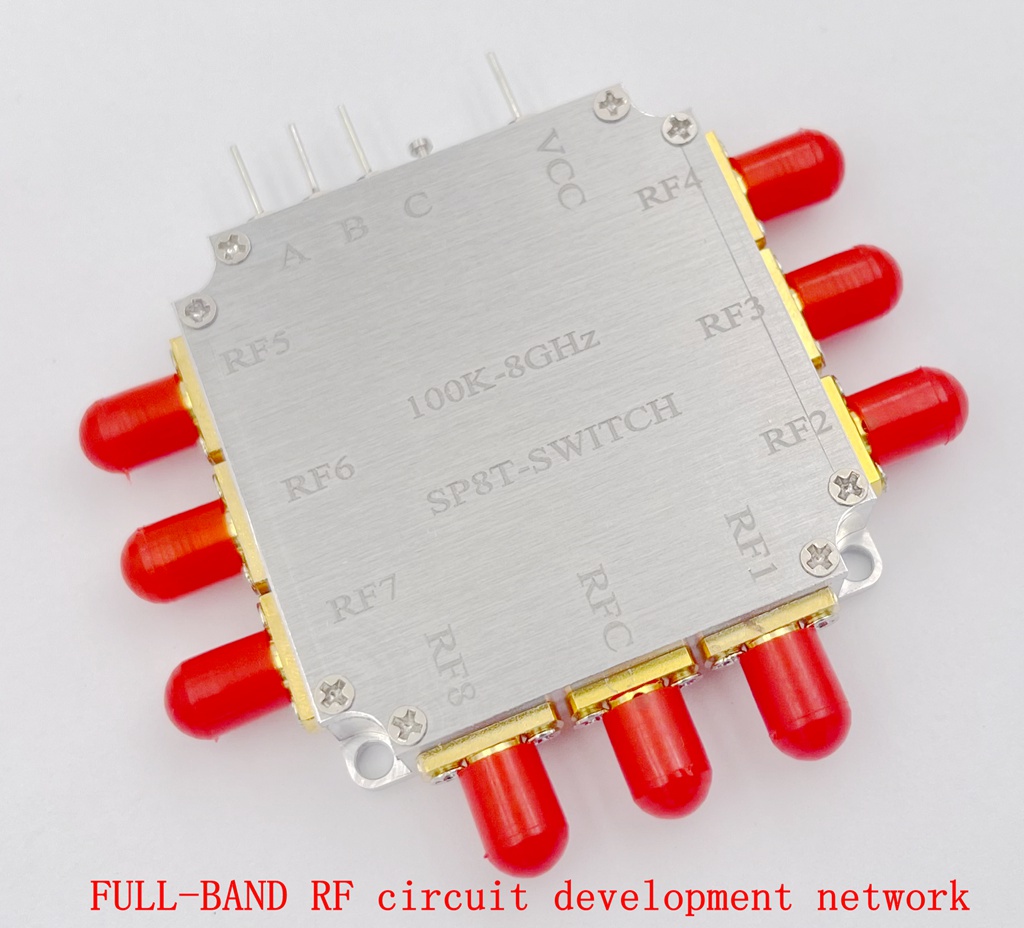

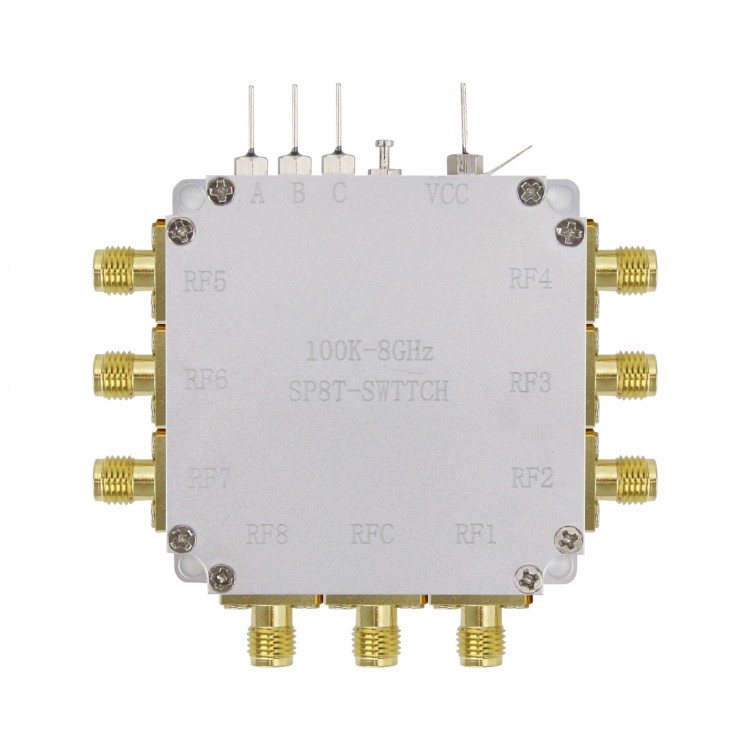

LF-8GHz 100K-8GHz SP8T Switch RF Switch with Metal Shell High Isolation Low Insertion Loss

Availability: In stock, usually dispatched in 1 business day

  • Price:$116.76
  • Price in reward points: 1168 Reward Points: 12
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $114.42 $112.09 $108.59 $103.92 Contact US
Quantity:
Buy it now Add cart

You might like

QM-SP8T-DT8D DC-8GHz SP8T Switch RF Switch Microwave Switch Single-Pole Eight-Throw Switch Module

QM-SP8T-DT8D DC-8GHz SP8T Switch RF Switch Microwave Switch Single-Pole Eight-Throw Switch Module

$84.62

(0)
100K-8GHZ-SP8-CNC SP8T RF Switch with Wide Bandwidth & High Isolation & Low Insertion Loss

100K-8GHZ-SP8-CNC SP8T RF Switch with Wide Bandwidth & High Isolation & Low Insertion Loss

$114.09

(0)
HMC321 RF Switch Module 1 Open 8 RF Switch 8GHz Frequency 5V Power Supply SMA Interface

HMC321 RF Switch Module 1 Open 8 RF Switch 8GHz Frequency 5V Power Supply SMA Interface

$68.31

(0)
9K-13GHz RF Switch Ultra-Wideband RF SPDT Switch Microwave Switch

9K-13GHz RF Switch Ultra-Wideband RF SPDT Switch Microwave Switch

$67.45

(0)
LF-3GHz SP8T Switch 3GHZ RF Switch Module with Metal Shell High Isolation Low Insertion Loss

LF-3GHz SP8T Switch 3GHZ RF Switch Module with Metal Shell High Isolation Low Insertion Loss

$54.57

(0)
NanoVNA-F Vector Network Analyzer VNA Antenna Analyzer 50K-1.5GHz with 4.3" IPS Screen Metal Case

NanoVNA-F Vector Network Analyzer VNA Antenna Analyzer 50K-1.5GHz with 4.3" IPS Screen Metal Case

$84.54

(0)
QM-SP8T-6S 100MHz-6GHz RF Single Pole Eight Throw Switch Wideband Microwave Switch with SMA Female Connector

QM-SP8T-6S 100MHz-6GHz RF Single Pole Eight Throw Switch Wideband Microwave Switch with SMA Female Connector

$59.29

(0)
QM-SP8T-DT7E DC-7GHz 8-Channel RF SP8T Switch Wideband Single Pole Eight Throw Microwave Switch

QM-SP8T-DT7E DC-7GHz 8-Channel RF SP8T Switch Wideband Single Pole Eight Throw Microwave Switch

$64.06

(0)

LF-8GHz 100K-8GHz SP8T Switch RF Switch with Metal Shell High Isolation Low Insertion Loss

Specifications:
- Board: RF board
- Working frequency: 100KHz-8GHZ (below 1M, users can increase the internal DC blocking microwave capacitor)

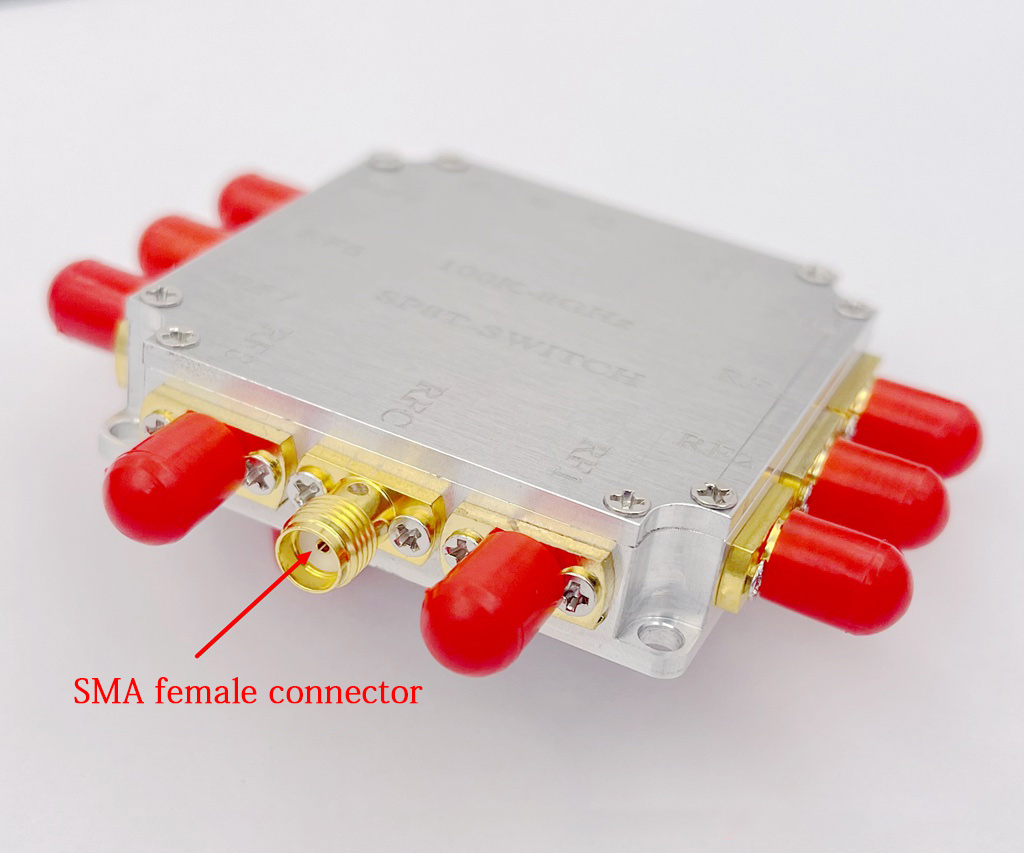

- Input and output interface: 50 ohm SMA female connector
- Board size: 5.1 x 5.1cm/2 x 2" (not including the size of SMA)
- Power supply: +5V (with input protection diode)

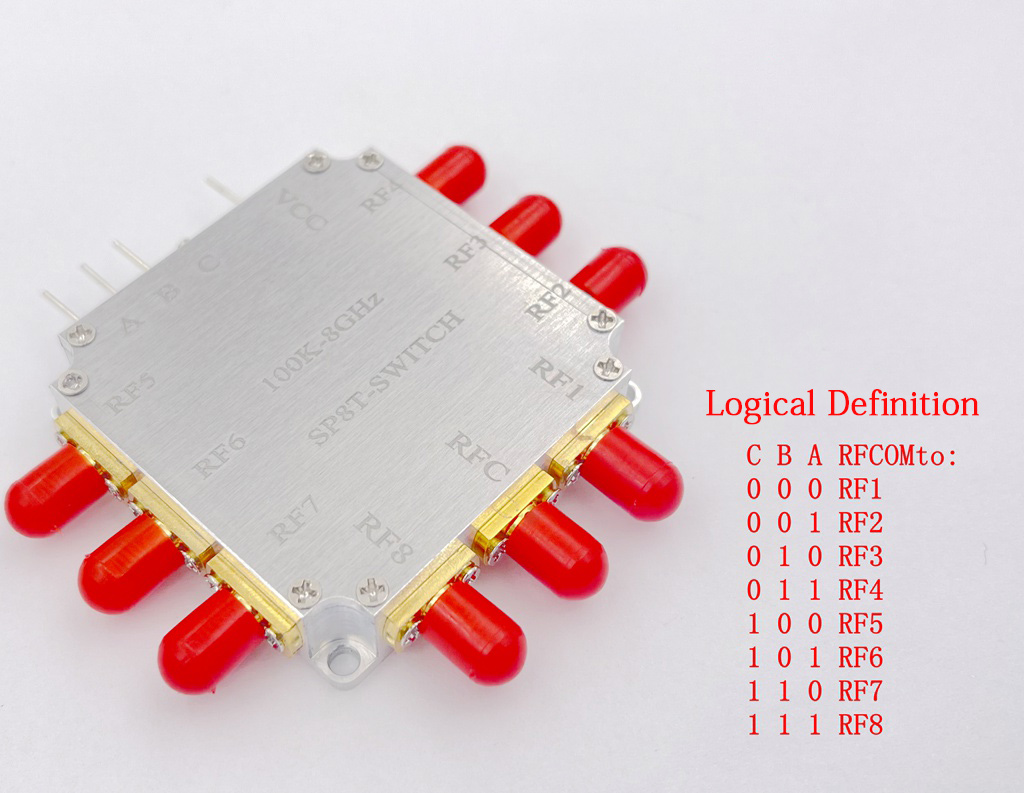

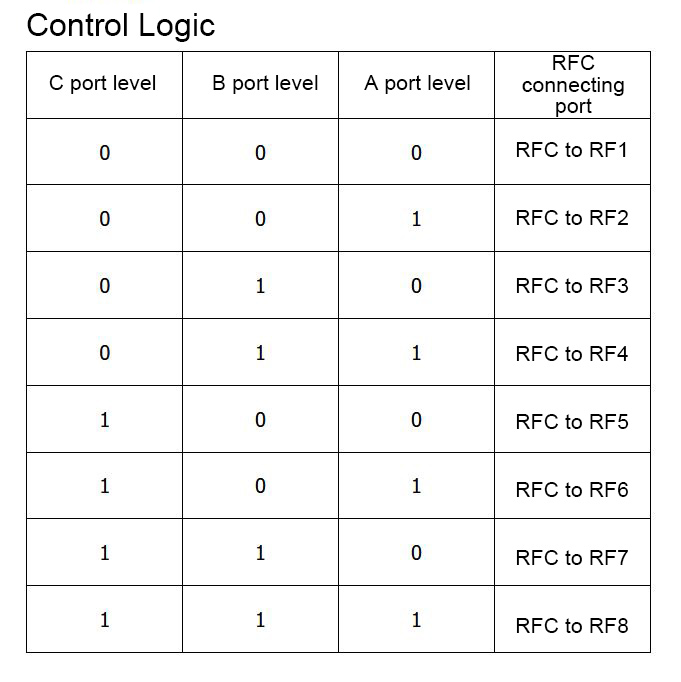

- Control port: 0/5V control (can use MCU IO port control, A, B and C main control)

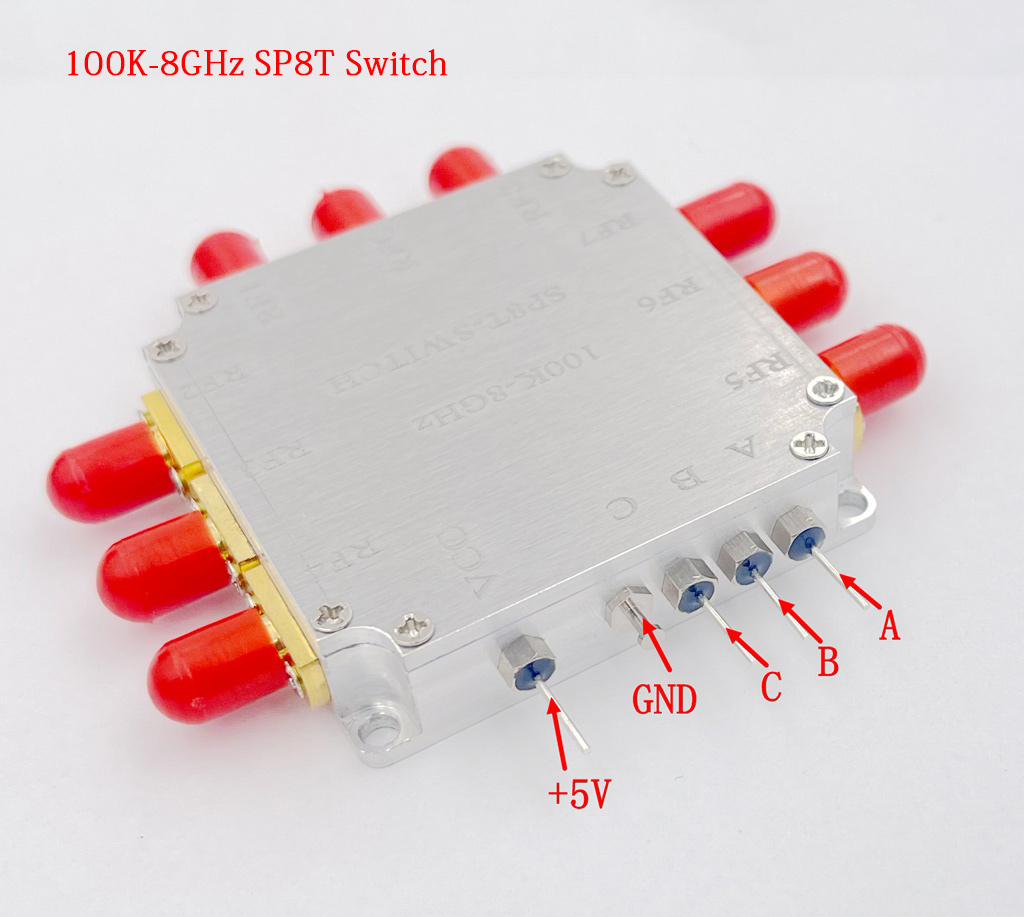

- Control interfaces: +5V, GND, and three control lines A, B and C

Package Included:
- 1 x RF Switch
