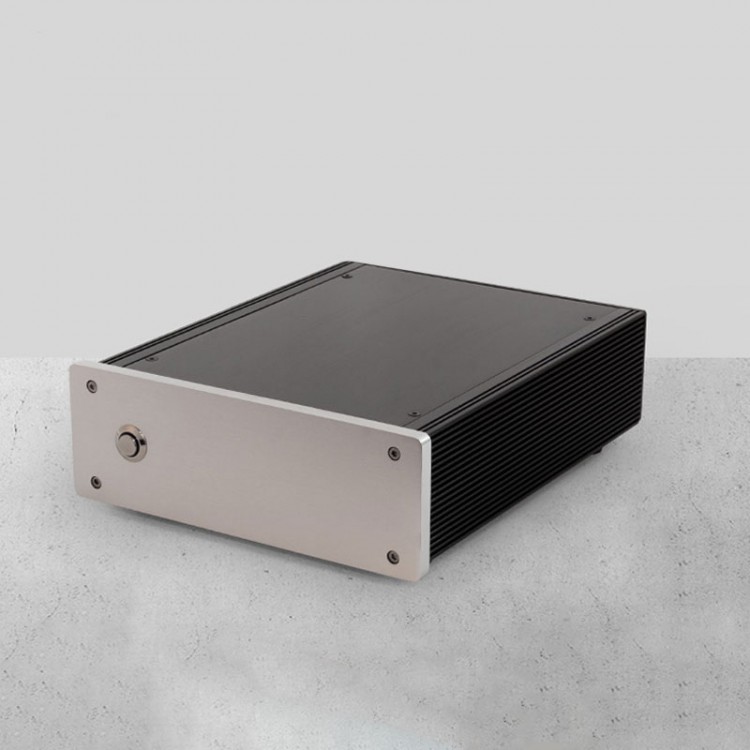

LGS108 Hifi Audio 5-Port Gigabit Switch Ethernet Switch Full Linear DC Power Supply SC Cut OCXO

LGS108 Hifi Audio 5-Port Gigabit Switch Ethernet Switch Full Linear DC Power Supply SC Cut OCXO

Description:
Just for Listening
HIFI audiophile switch adopts uV-level linear power supply/SC cut OCXO. It greatly reduces noise interference in network audio transmission, reduces transmission jitter, and improves sound quality.

Powered By
Traditional switch removes the original DC-DC switching power supply and adopts DC12V power supply. But in fact, the switch motherboard uses DC12V power supply, and then it still needs to be converted into 3.3V and 1.2V low-voltage direct current power supply to each chip through the DC2DC high-frequency switching regulator chip on the board. However, the switching regulator chip on the motherboard still brings high-frequency switching noise, so this solution fails to completely remove the noise caused by the switching power supply regulator chip. LGS108 directly uses the 2-level multi-channel low-noise pure DC power supply composed of LM1085 and lt3045 to supply the chip on the motherboard. The power noise is as low as uV, which greatly reduces the various noise and interference on the board. In the case of subtraction, the background is purer and the high-frequency sound is more rounded.

High-Precision OCXO Constant Temperature Clock
Unlike most merchants in the market who use small workshop OCXO for machines, LGS108 uses an imported high-precision SC-cut OCXO instead of the low-end 2-pin crystal oscillator of the original switch, which greatly improves the clock accuracy and reduces the clock jitter to make the sound details richer, and the sound field positioning more accurate.

Specifications:
- Size: 180 x 220 x 60mm/7.1 x 8.7 x 2.4"(LxWxH) for 5-port
- Weight: 1.5kg (5-port)
- Speed: 10/100/1000M
- Power consumption: 8W
- Voltage: 220~240VAC or 110~120VAC

Package Included:
- 1 x Set of Gigabit Switch
