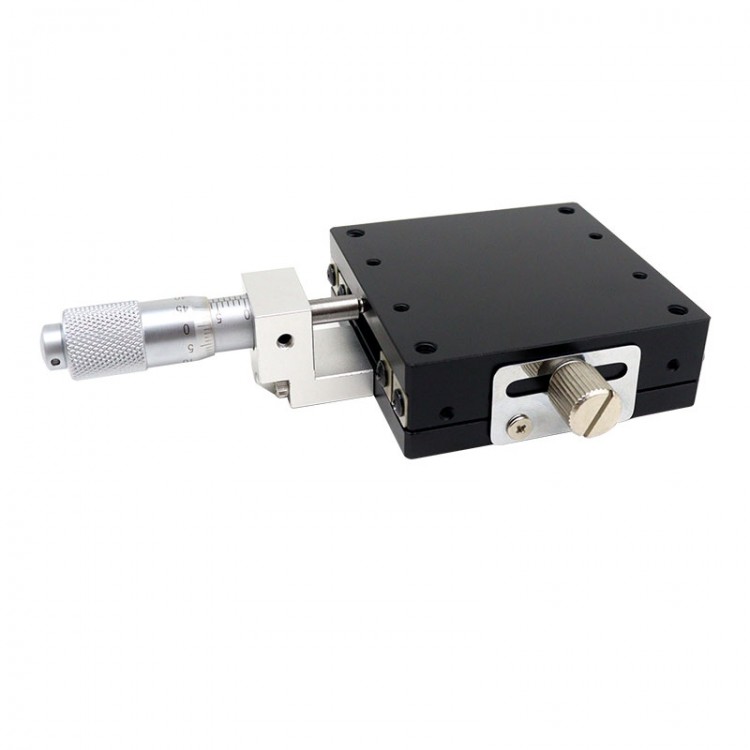

• LGX60-C 60x60MM/2.4x2.4" X-Axis Manual Sliding Table Precision Sliding Stage w/ Central Micrometer

LGX60-C 60x60MM/2.4x2.4" X-Axis Manual Sliding Table Precision Sliding Stage w/ Central Micrometer

Availability: In stock, usually dispatched in 1 business day

  • Price:$32.81
  • Price in reward points: 328 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $32.15 $31.50 $30.51 $29.20 Contact US
Quantity:

LGX60-C 60x60MM/2.4x2.4" X-Axis Manual Sliding Table Precision Sliding Stage w/ Central Micrometer

Features:

- LGX precision sliding stage
- High precision and zero jitter
- Moving mode: parallel direction and steel bar ball-bearing type
- Moving direction: X axis
- Table top size: 60x60MM/2.4x2.4"
- Installation position of micrometer: central

Specifications:
- Travel: ±6.5mm/±0.3"
- Load: 39.2N (4.0kgf)
- Material: Aluminum alloy
- Min. Scale: 0.01mm/0.0004"
- Accuracy: 0.01mm/0.0004"
- Parallelism: 0.03mm/0.001"
- Weight: 0.21kg/0.5lb

Package Included:
- 1 x Sliding Table

Note:
- The following pictures are for reference only, and the appearance of the product is subject to the actual product. Thank you for your understanding!
