| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $32.15 | $31.50 | $30.51 | $29.20 | Contact US |
LD60-RM-2 XYZ Axis Three-dimensional Trimming Platform High Precision Manual Sliding Table Horizontal Lifting
$125.23
LD60-CM-2 XYZ Axis Three-dimensional Trimming Platform High Precision Manual Sliding Table Horizontal Lifting
$125.23
LD60-LM-2 XYZ Axis Three-dimensional Trimming Platform High Precision Manual Sliding Table Horizontal Lifting
$125.23

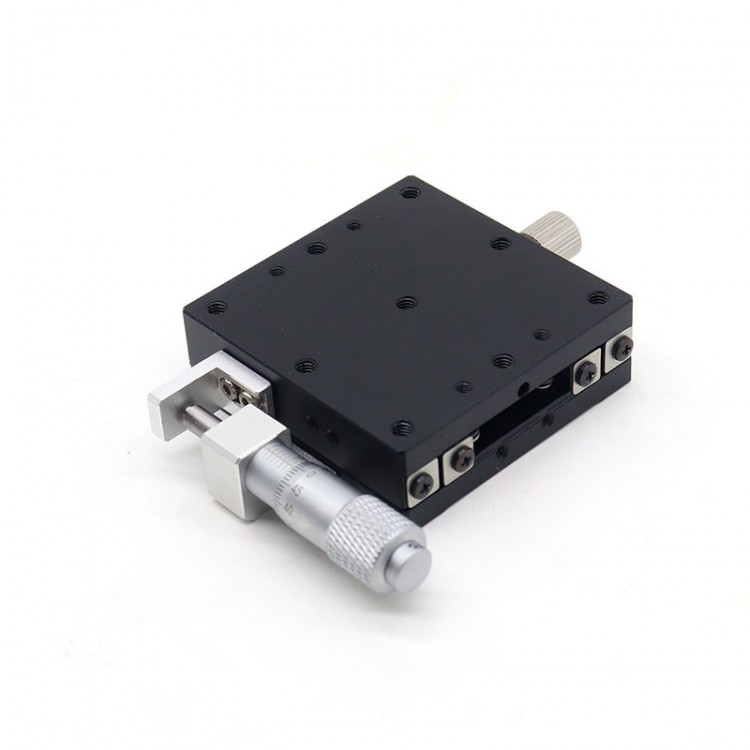

LGX60-L 60x60MM/2.4x2.4" X-Axis Manual Sliding Table Precision Sliding Stage Left Handed Micrometer
Features:
- LGX precision sliding stage
- High precision and zero jitter
- Moving mode: parallel direction and steel bar ball-bearing type
- Moving direction: X axis
- Table top size: 60x60MM/2.4x2.4"
- Installation position of micrometer: left handed
Specifications:
- Travel: ±6.5mm/±0.3"
- Load: 39.2N (4.0kgf)
- Material: Aluminum alloy
- Min. Scale: 0.01mm/0.0004"
- Accuracy: 0.01mm/0.0004"
- Parallelism: 0.03mm/0.001"
- Weight: 0.21kg/0.5lb
Package Included:
- 1 x Sliding Table
Note:
- The following pictures are for reference only, and the appearance of the product is subject to the actual product. Thank you for your understanding!
