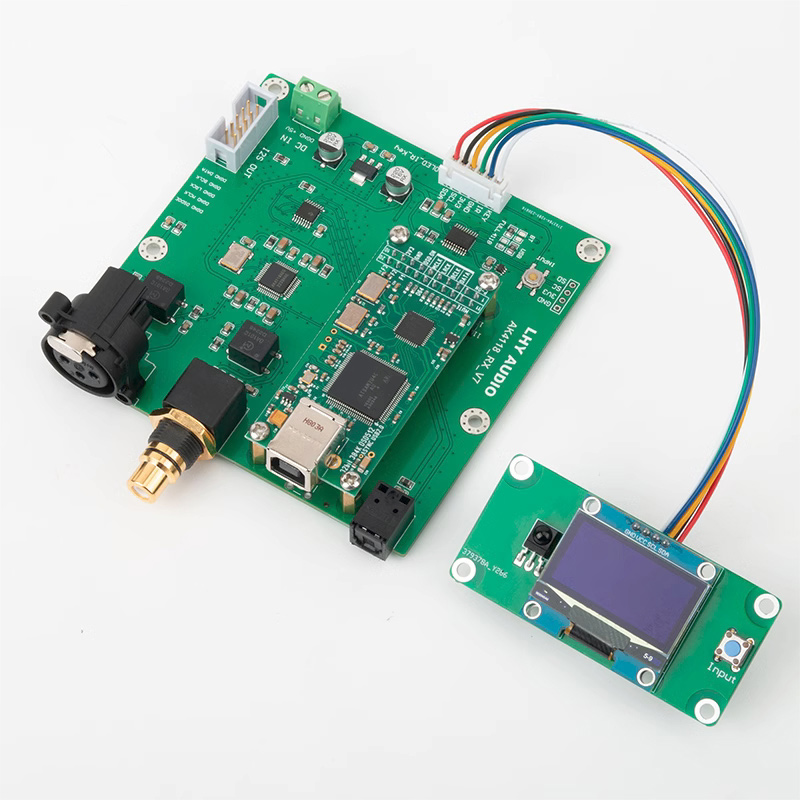

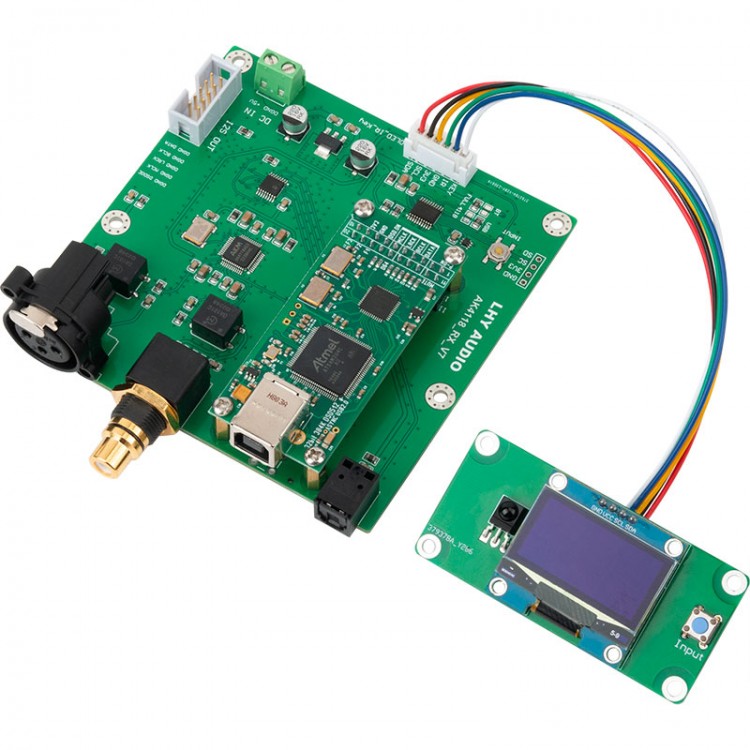

LHY Audio AK4118 Receiver Board USB Optical Coaxial AES Input to IIS Output + Display Control Board

LHY Audio AK4118 Receiver Board USB Optical Coaxial AES Input to IIS Output + Display Control Board

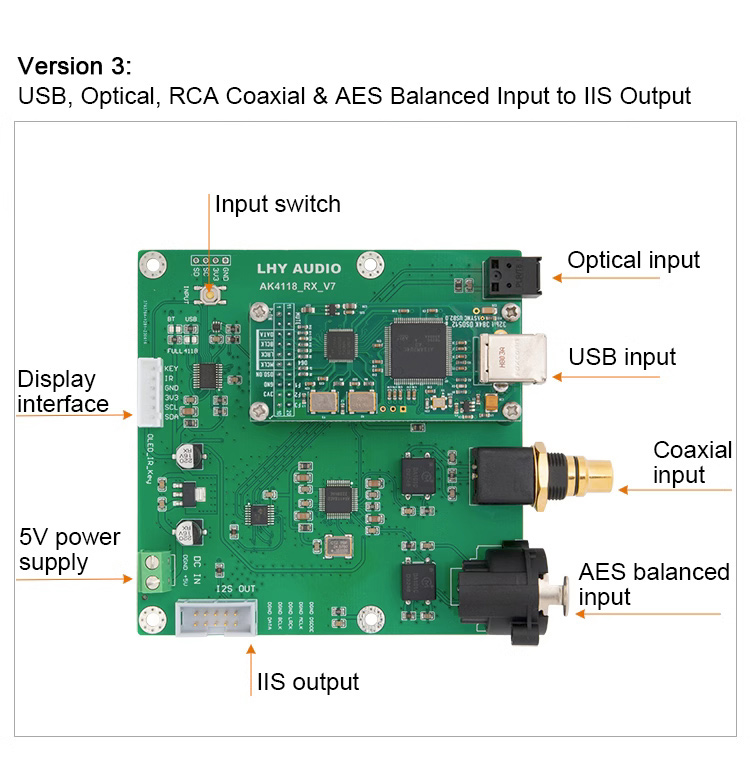

USB Version (Version 3):
- Input signal: USB, optical, RCA coaxial and AES balanced input
- Output signal: IIS

Description:
Using AK4118 audio special moderation chip, it can receive 24bit 192K data. The AK4118 is used for coaxial signal receiving with the lowest jitter in the industry. Fully optimized by MCU software control, its performance is much better than that of schemes, including WM8805, DIR9001 and CS8416.

The main function of this board is to convert digital audio SPDIF signal (RCA/optical/AES/EBU/Bluetooth) to IIS output. Used with a suitable DAC board, it can form a complete DAC decoder.

Features:
- It support 4-way digital audio signal input. Users can set 4-way input.
- There is a USB interface.

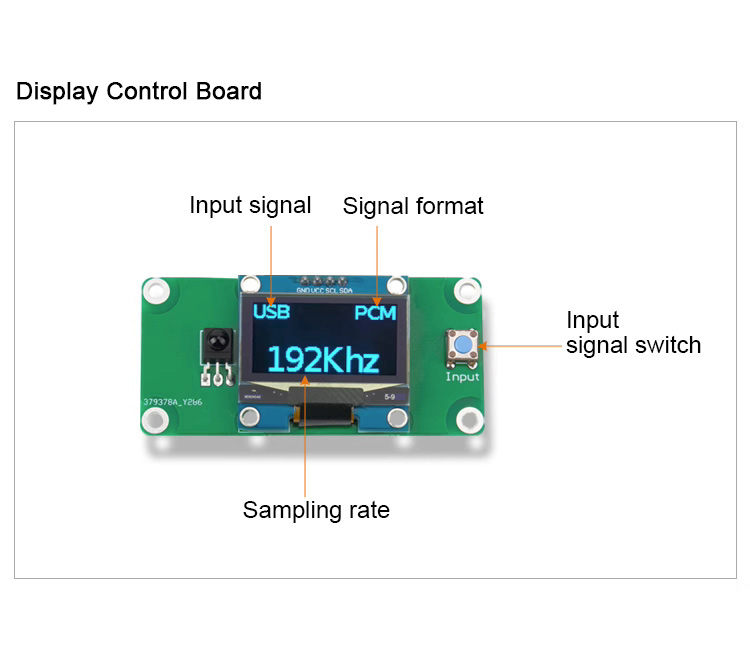

- OLED is used to display the working status.
- The dual-row 20-pin output connector is compatible with the USB output for Amanero.
- Its output interface has a DSD_OE signal (only for USB signal input). Used with a DAC board, it can realize PCM/DSD switching and mute control.
- All settings can be saved automatically.
- Optical/coaxial/AES: 44.1kHz/48kHz/88.2kHz/96kHz/176.4kHz/192kHz.
- USB: 44.1kHz/48kHz/88.2kHz/96kHz/176.4kHz/192kHz/384kHz. DSD64 (2.8M) /DSD128 (5.6M) / DSD256 (11.2M) / DSD512 (22.5M).

Package Included:
- 1 x Receiver Board
- 1 x Display Control Board
- 1 x Cable
