Description:

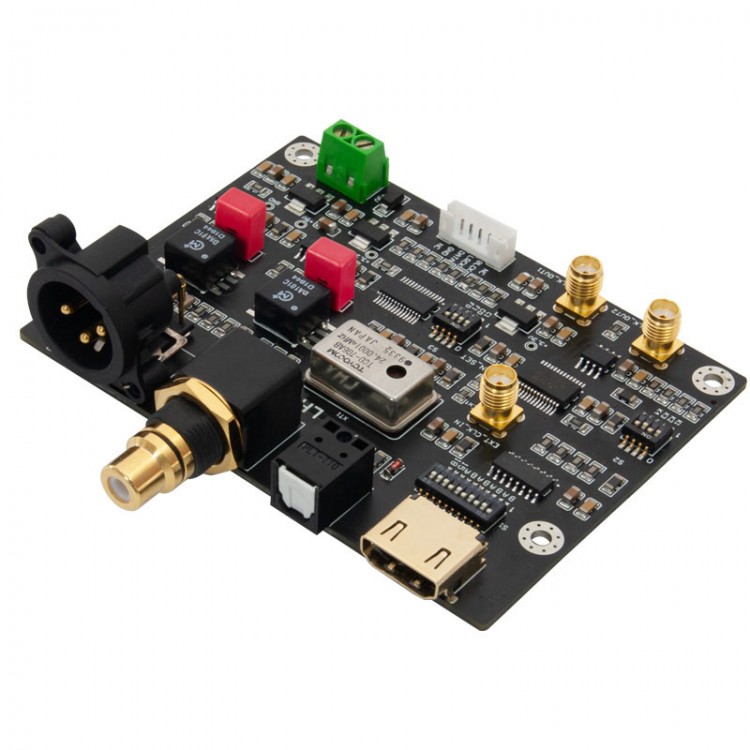

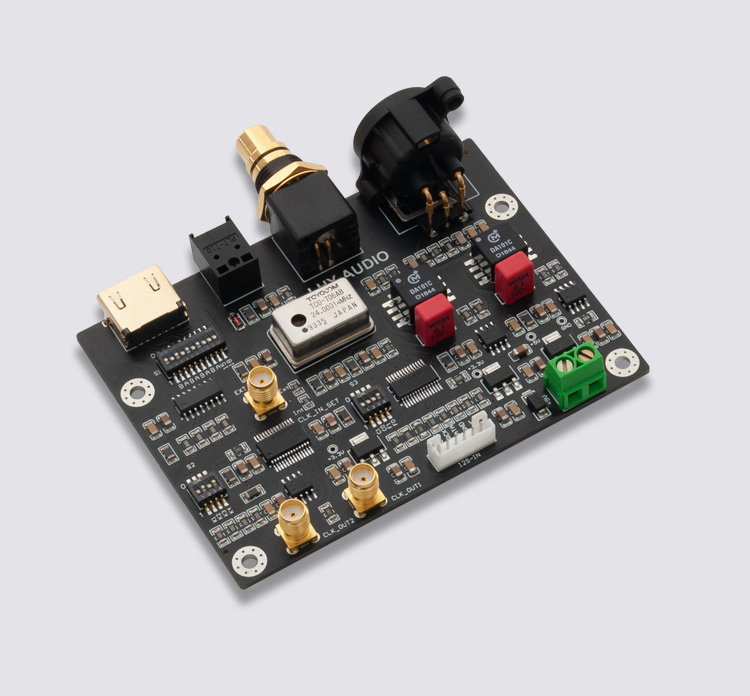

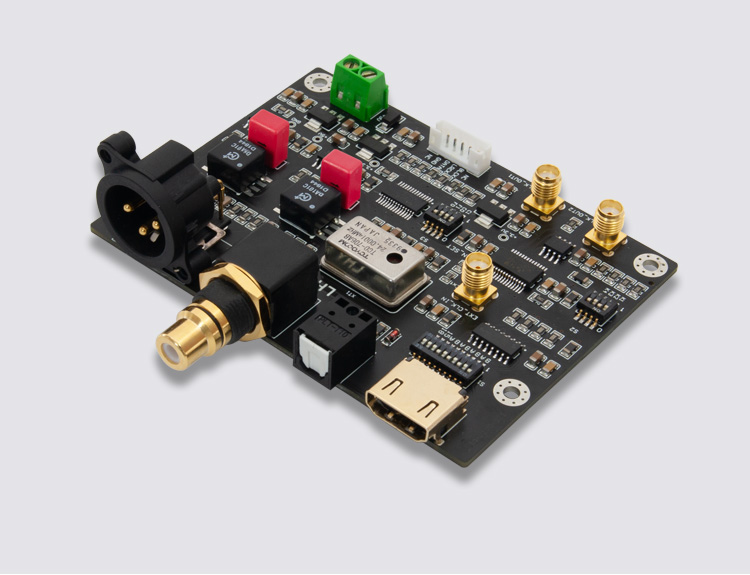

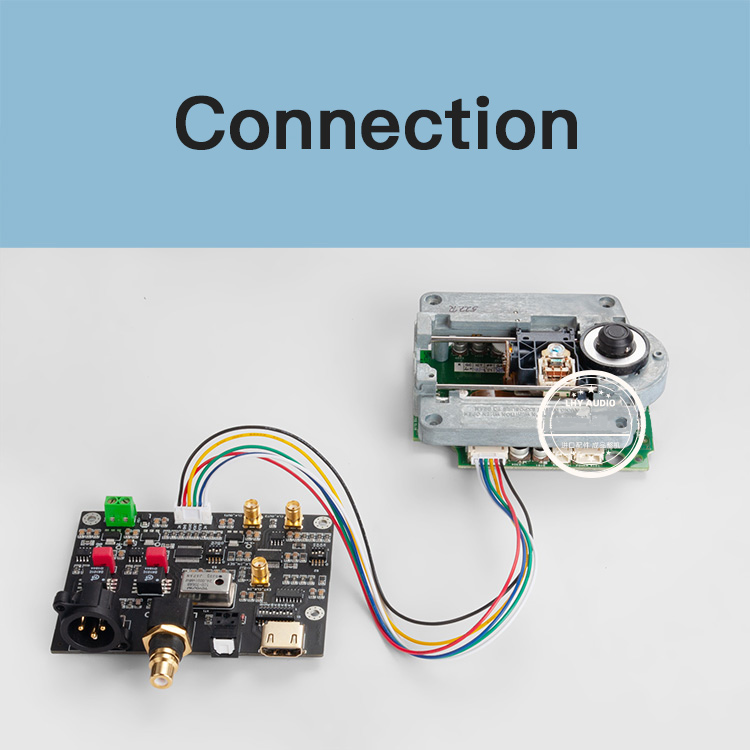

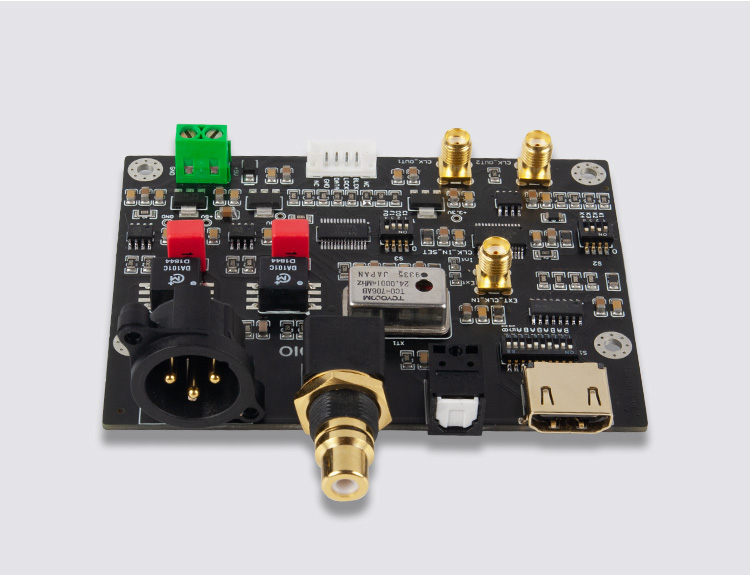

This coaxial output board is specially designed for supporting Philips 310 board, CDM3/4/9, CDM12, CDpro2 and other digital turntables. It has 3 main functions:

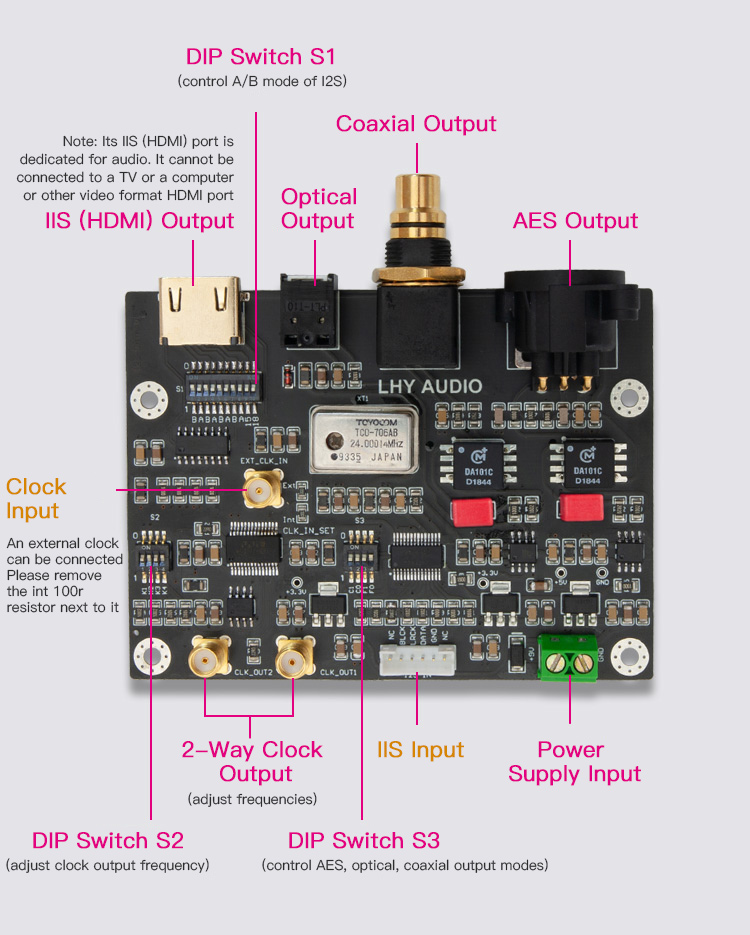

1. Convert IIS signal to coaxial SPDIF signal, drive by 2-way DS8921 as signal, and then output to RCA/BNC/optical fiber/AES through digital isolation transformer DA101C (can be upgraded to SC947-02LF), supporting MONO mode.
2. Drive the IIS signal through the LVDS chip and output it to the HDMI-IIS interface (A/B mode can be set through the 10-bit dial switch), which can be compatible with most current decoders with HDMI-IIS input interface. (The data format of the CDpro2 IIS interface is currently not directly decoded by most decoders)
3. Simultaneously output two-way clock signals. The clock adopts the new imported TCOX+PLL, a total of 2 sets of clock output, CLKOUT1 (driving DIT4192), CLKOUT2 can provide the clock signal back to the turntable. At the same time, there is a clock input port on the board, which can be upgraded with 10MHz OCXO or rubidium clock signal input to replace the standard VCXO crystal oscillator.

Technical Parameters:
- Model: 2480
- Input interface: I2S (for CDM3/4/9 CDpro2 SONY, etc.)

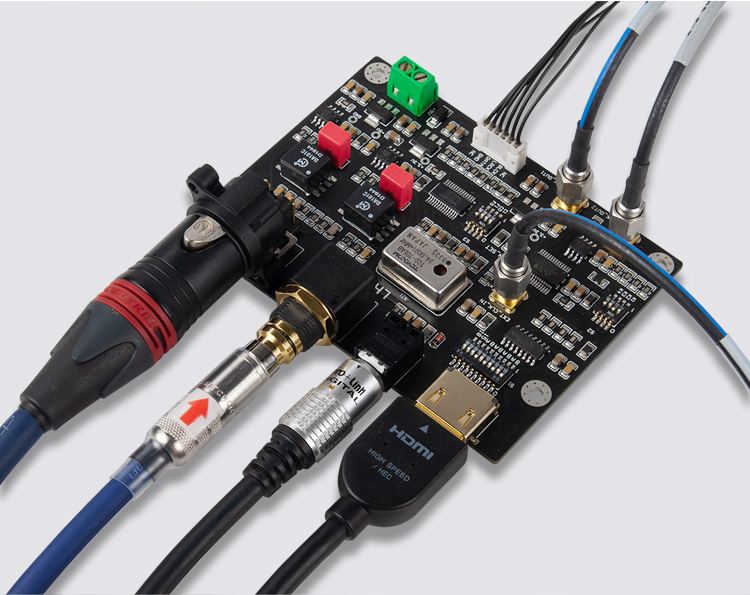

- Output interface: COAX coaxial, AES, optical fiber, HDMI-IIS
- Clock input: onboard VCXO+PLL, can be connected with OCXO, rubidium clock RB, etc.
- Clock output: 8.4672/11.2896/12.288/16.9344/22.5792/24.576MHz
- I2S (HDMI) support: up to 192K/24BIT, A/B mode can be set
- Fiber/Coaxial/AES support: up to 192K/24BIT
- Power supply: DC7~9V, 0.5A
- Size: 99 x 74mm/3.9 x 2.9"

Package Included:
- 1 x Set of Digital Output Board

Note:
- Other items pictured are not included in the package, for demonstration purposes only. Thank you for your understanding!
