LHY AUDIO LPS-A6 (115V) 35VA Linear Power Supply w/ Silver-plated Output Cable for Eversolo DMP-A6

LHY AUDIO LPS-A6 (115V) 35VA Linear Power Supply w/ Silver-plated Output Cable for Eversolo DMP-A6

Friendly Reminder:

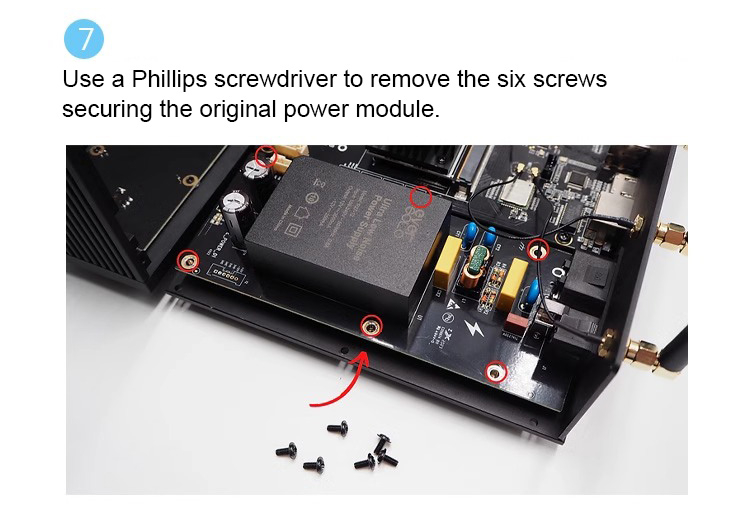

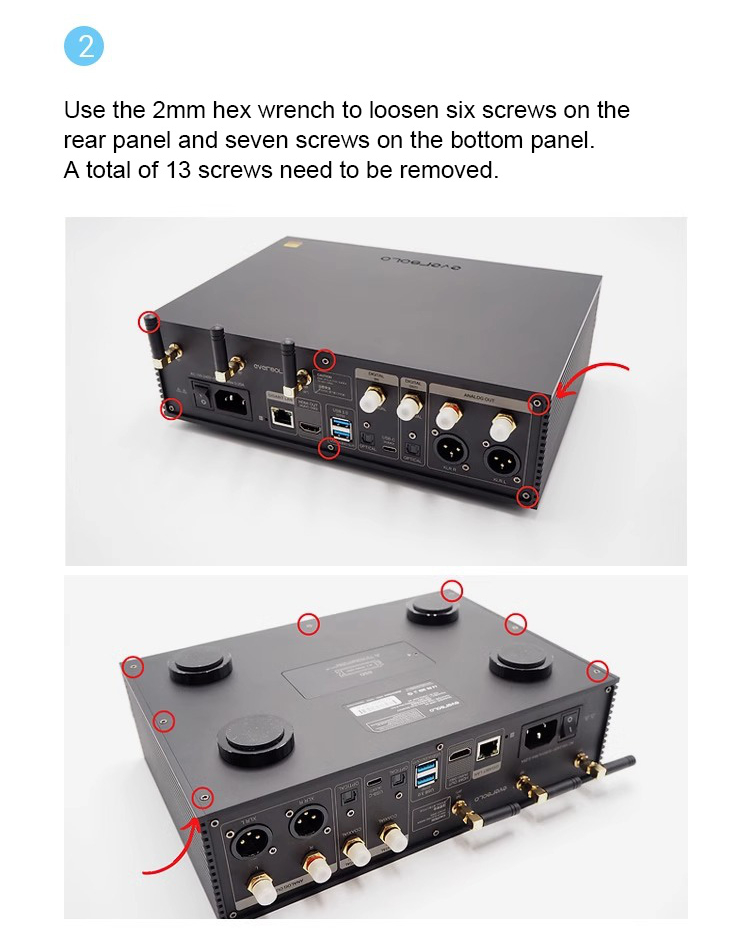

1. The chassis screws of the Eversolo DMP-A6 digital music player are relatively small and soft, with significant size variations. Extra caution and precision are required when removing the screws to avoid stripping them.

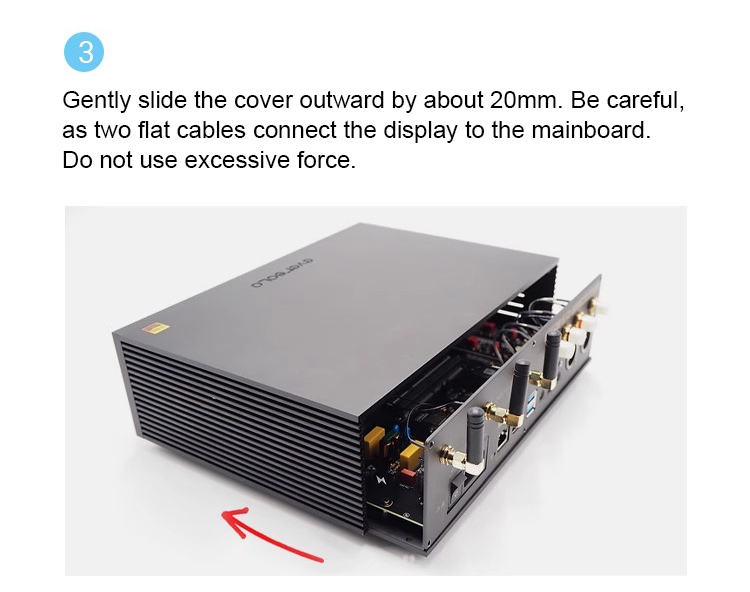

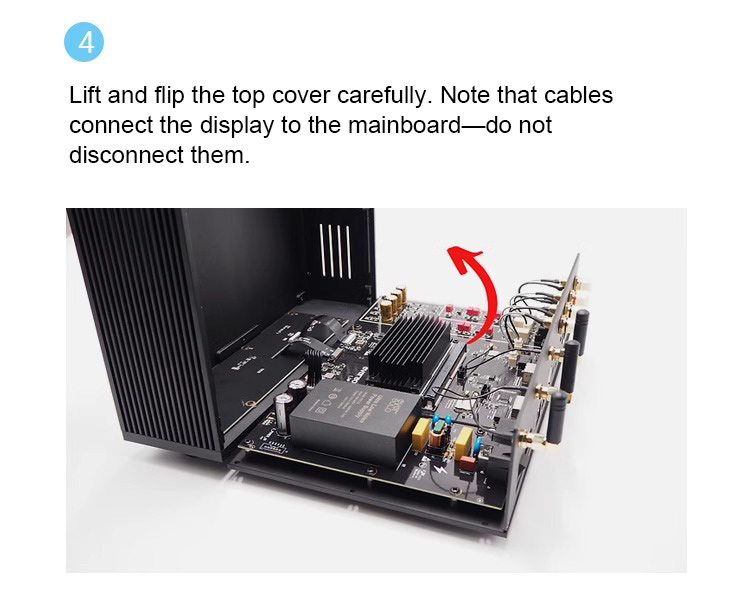

2. When disassembling the device, pay special attention to the two ribbon cables connected to the display. Once the chassis is opened, make sure to secure the cover properly to prevent it from tipping over and damaging the display cables. If you are unsure, please consult customer service.

Product Introduction:

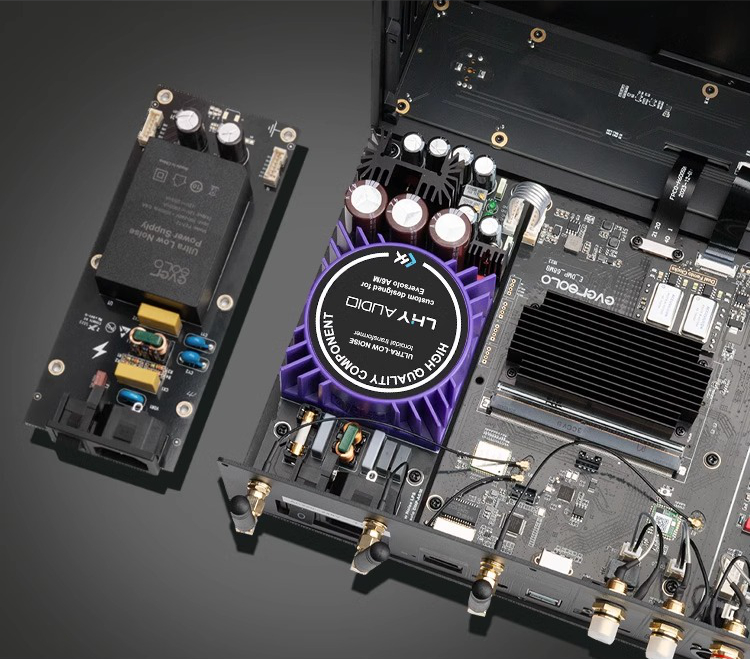

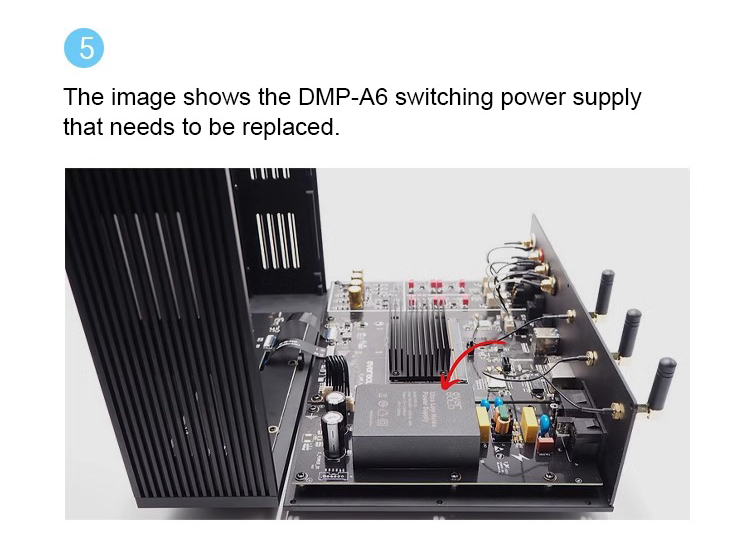

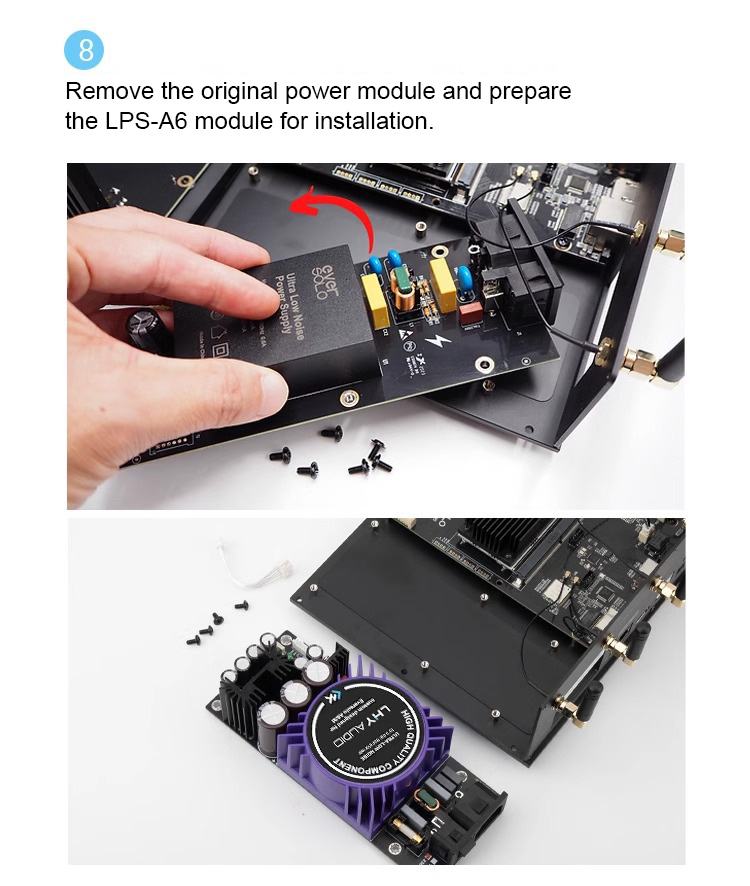

This is a linear power supply upgrade module specifically designed for Eversolo DMP-A6. Customers can easily DIY the upgrade themselves. It completely and seamlessly replaces the original switch-mode power supply (SMPS) module, allowing you to enjoy a significant upgrade without any loss. Experience the joy of a big upgrade at a small cost with ease!

Why Upgrade to a Linear Power Supply for the Eversolo DMP-A6?
1. Superior Noise Reduction: As we know, high-quality audio is all about clean power. The LPS-A6 linear power supply module features a noise level of <10uV at no load and <30uV at full load, which is over 100 times lower than the original switch-mode power supply (SMPS). By significantly reducing power noise, the module creates a quieter background for music, enhancing the richness of details and improving sound dynamics and density.
2. Reduced Power Interference: The linear power supply minimizes the power interference that the original switch-mode power supply may cause to other devices in the same audio system.
3. High-Quality Components: Compared to the switch-mode power supply, this linear power supply is custom-built for the Eversolo DMP-A6 with audiophile-grade materials, offering more stable performance.
4. Affordable Upgrade: The cost of upgrading to the linear power supply module is even lower than a high-end power cable. And it offers a completely reversible upgrade, so you can restore the original setup at any time.

Why Choose Our Linear Power Supply Module?
1. Over 10 Years of Expertise: LHY AUDIO Studio has more than 10 years of experience in designing and manufacturing HiFi linear power supplies, ensuring top-tier quality and performance.
2. Proven Success: Our previous overseas-customized version of the LPS-A6 has received high praise. In just six months, nearly 1,000 units were sold.
3. Low Noise Design: The linear power supply module utilizes two independent LT3042 ultra-low noise voltage regulator circuits.
4. Custom Hi-End Transformer: For the Eversolo DMP-A6, we have specifically designed a Hi-End-level, three-layer shielded toroidal transformer to meet the power requirements for both positive and negative voltages, ensuring optimal performance.

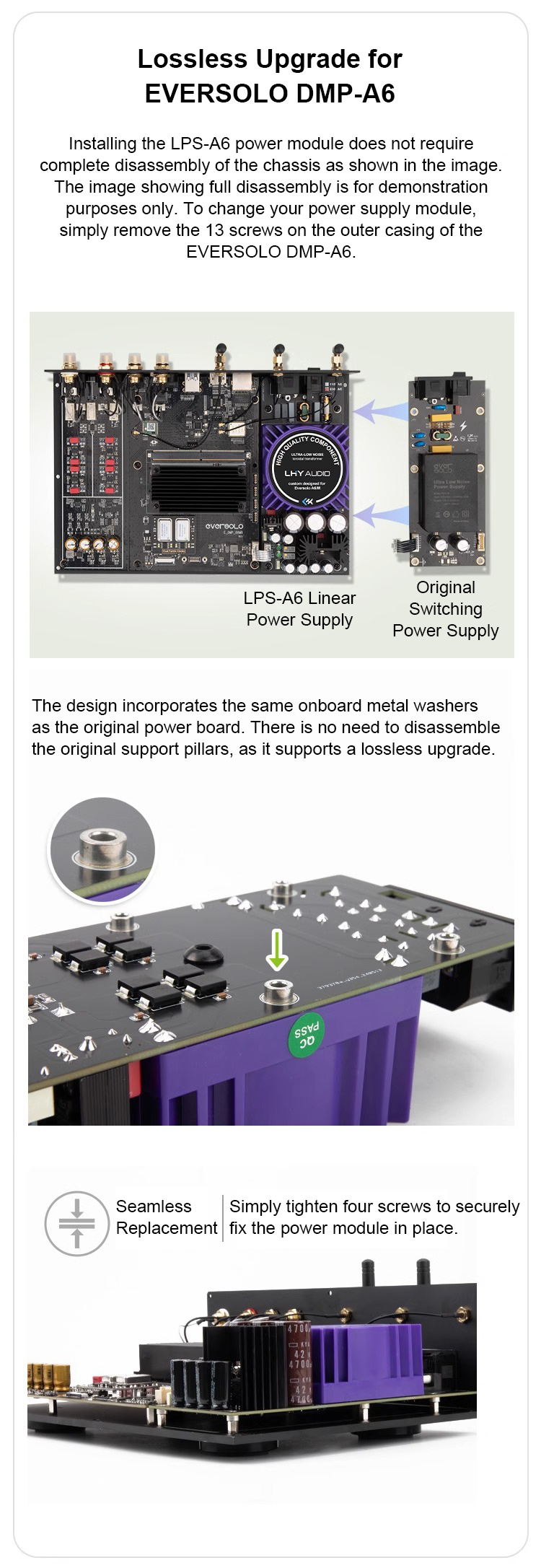

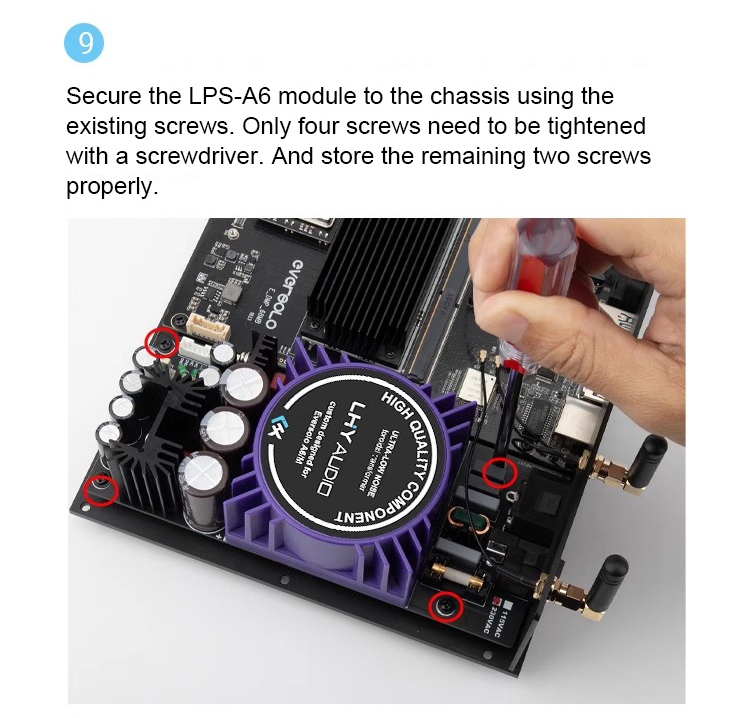

5. No Need to Remove Original Support Columns: The module uses the same onboard metal spacer design as the original power supply, so no need to remove the support columns from the original unit. This allows for a lossless upgrade.
6. Thorough Testing and Complete Installation Kit: Each power supply module undergoes comprehensive aging and testing using professional power testing equipment before leaving the factory. Additionally, we provide a complete installation kit and tools, so customers don't need to prepare anything else.

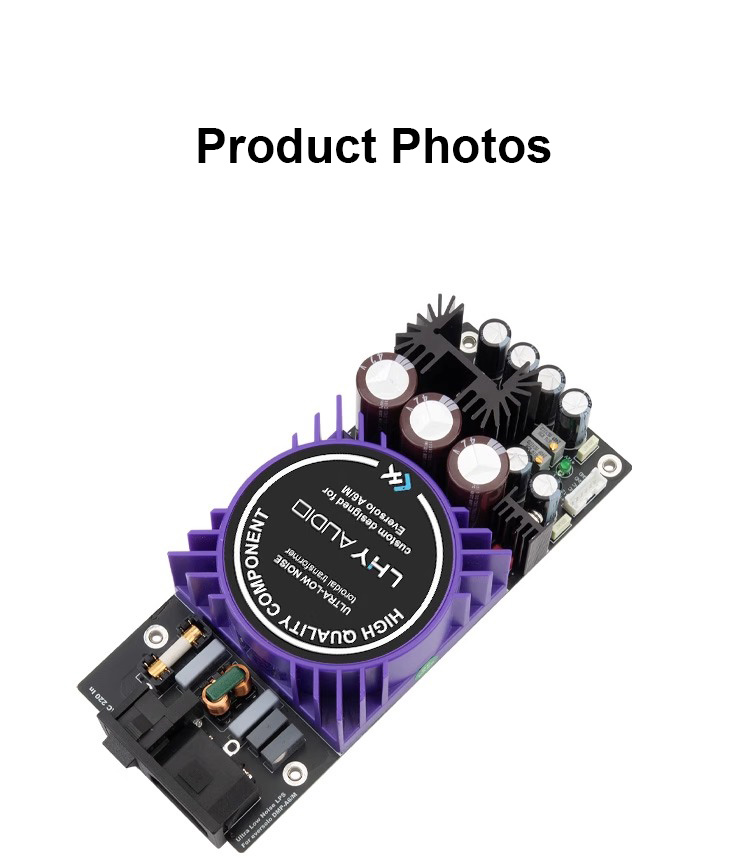

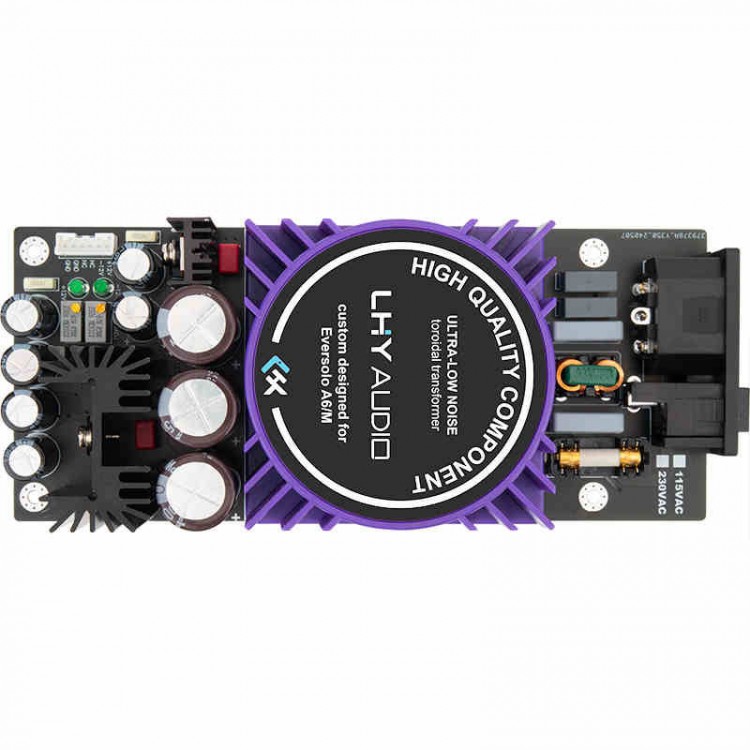

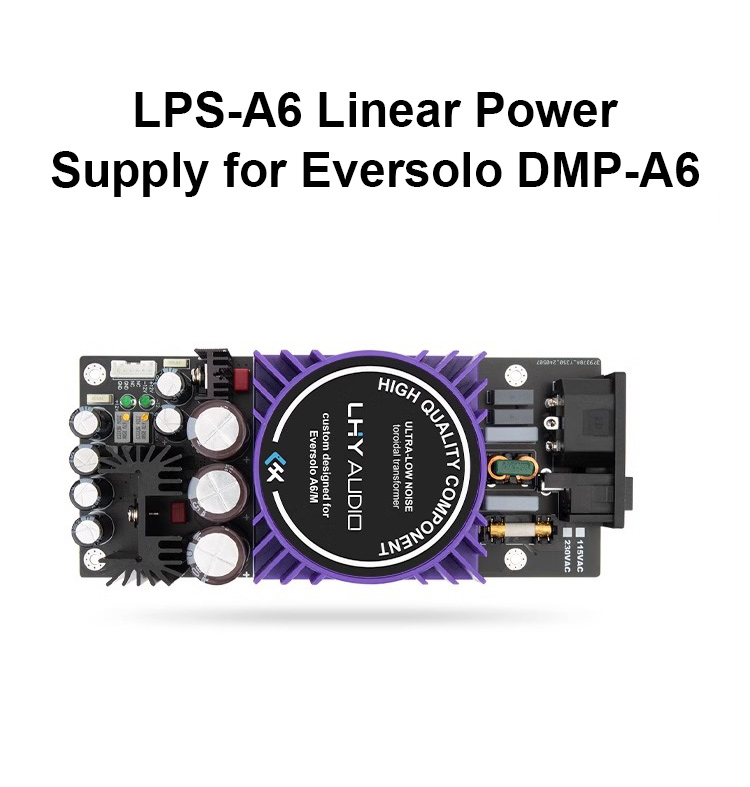

LPS-A6 Linear Power Supply:
* The LPS-A6 Linear Power Supply offers a lossless upgrade and installation, significantly enhancing the overall performance.
* Upgrading to the custom power supply for the Eversolo DMP-A6 brings out more details in the sound, making the audio more transparent, natural, and true-to-life, with a more realistic instrument representation and a more pleasing overall sound.
* The LPS-A6 Linear Power Supply reduces ripple noise by over 100 times compared to the original switch-mode power supply (SMPS).

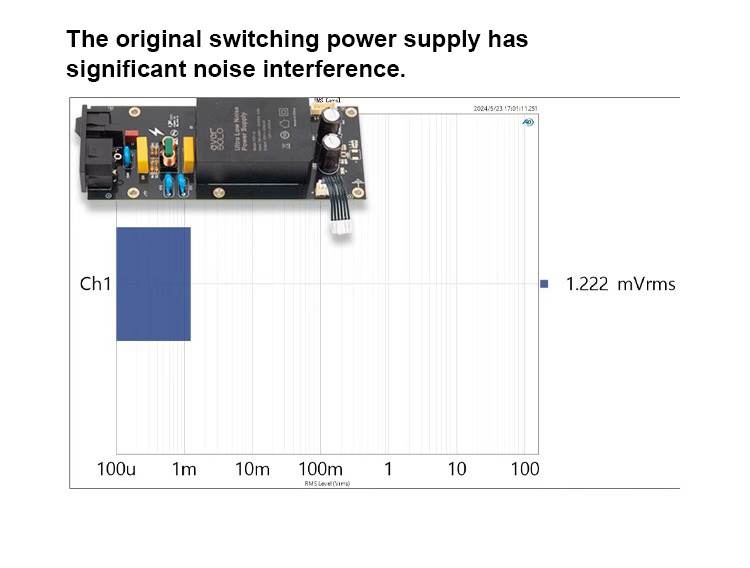

* In practical measurements, the LPS-A6 Linear Power Supply shows a ripple of 7.544uV at full load, while the original power supply exhibits a ripple of 1.222mV (1222uV). The full-load linear power supply produces over 100 times less ripple noise compared to the no-load original switch-mode power supply.

Reasonable Matching and Calibration & Immediate Results:
* HiFi audiophile audio components are used.
* Imported instrument is used for the aging tests.

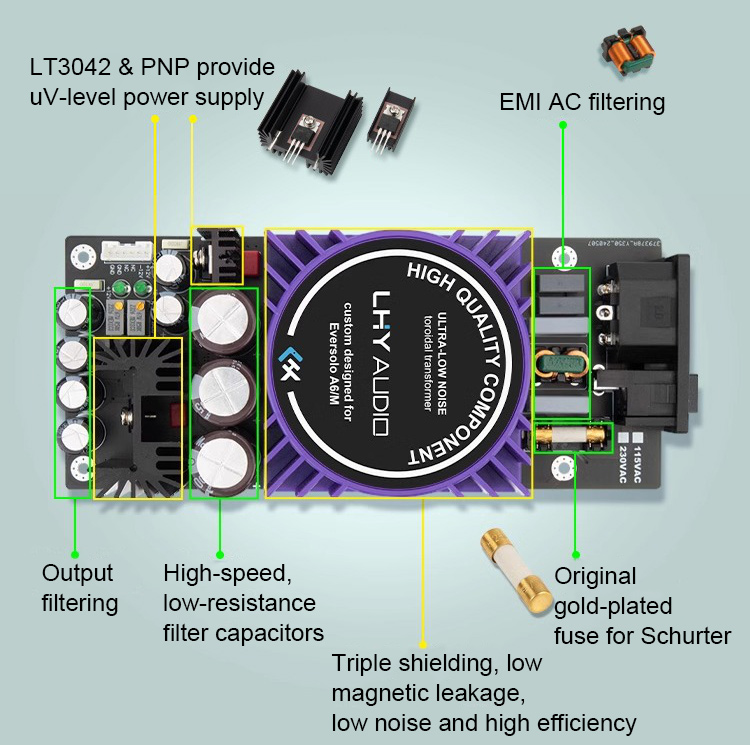

* The module utilizes original LT3042 high-end linear voltage regulator chip (for Linear Technology) with a PNP current boosting scheme, delivering a near-zero noise DC regulated power supply capable of supplying high output currents.
* It features an integrated design with a balanced, symmetrical circuit, achieving high output voltage accuracy, with a precision of up to 1%.

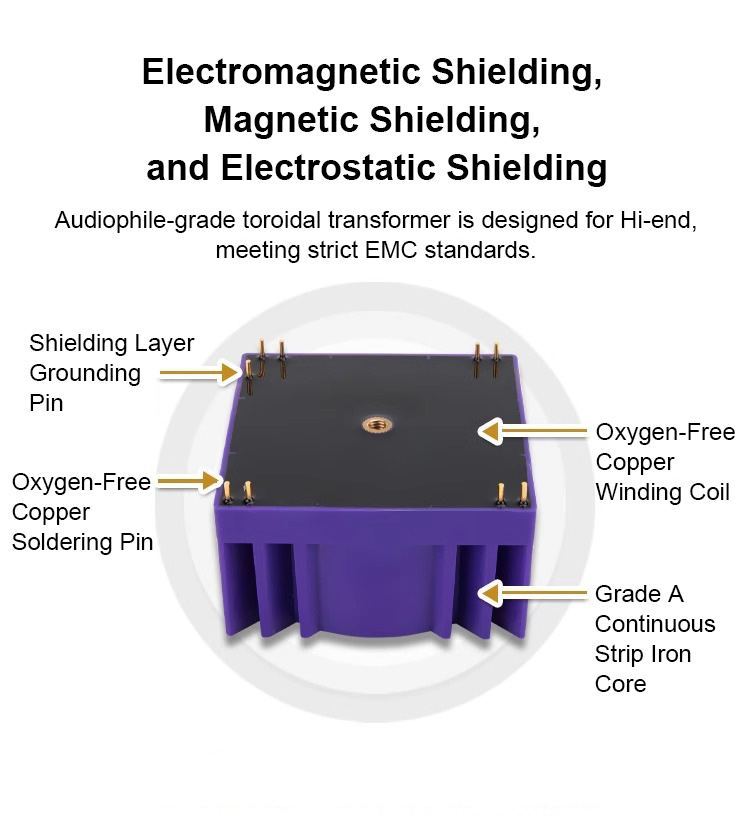

Electromagnetic Shielding, Magnetic Shielding, and Electrostatic Shielding
* Audiophile-grade toroidal transformer is designed for Hi-end, meeting strict EMC standards.

UMI Power Encapsulated Toroidal Transformer Designed for Audiophile Audio:
* With its advanced triple shielding technology, it effectively eliminates interference that may affect sound quality. Electrostatic shielding prevents high-frequency noise, while electromagnetic shielding blocks environmental EMI. Magnetic shielding further isolates the transformer, reducing toroidal transformer leakage flux by 80%, preventing interference with audio signals, and eliminating noise or hum in Hi-End equipment.
* A high-permeability, low-iron-loss premium toroidal core, high-quality oxygen-free copper windings, along with epoxy encapsulation and pin design, ensure power stability, operational efficiency, and exceptional voltage regulation. This delivers an audiophile-grade experience with fidelity—pure dynamics and excellence.
* The Eversolo DMP-A6 has different requirements for positive and negative power supplies. This is evident from its original power module, where the +12V output reaches 2A, while the -12V output is only 0.5A. However, standard transformers available on the market, whether domestically produced or imported, typically have two windings of equal power. To address this, we partnered with a leading Chinese transformer manufacturer to custom-design this Hi-End toroidal transformer specifically for the DMP-A6. This transformer features a grade A continuous strip iron core, oxygen-free copper enameled wire, and a triple-layer shielding process to prevent interference with other circuits inside the music player. The goal is to optimize the performance of the DMP-A6 linear power supply to deliver superior results.

Specifications:
* Output Voltage: +12.0V at 2A; -12.0V at 0.5A
* Noise Ripple: <10µVrms (no load); <30µVrms (80% load)
* Dimensions: 170mm x 72mm x 45mm (Depth x Width x Height)
* Weight: 0.8Kg
* Power Consumption: 2W (standby); 25W (operating)

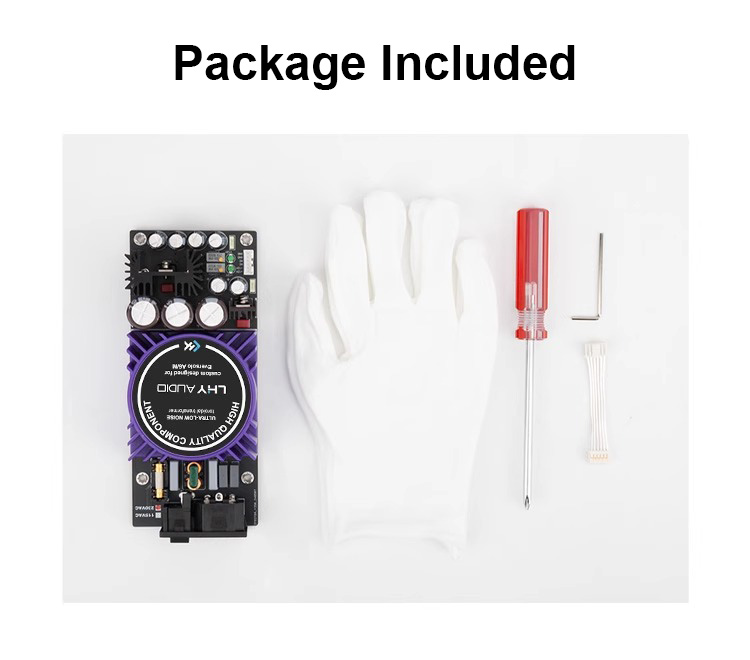

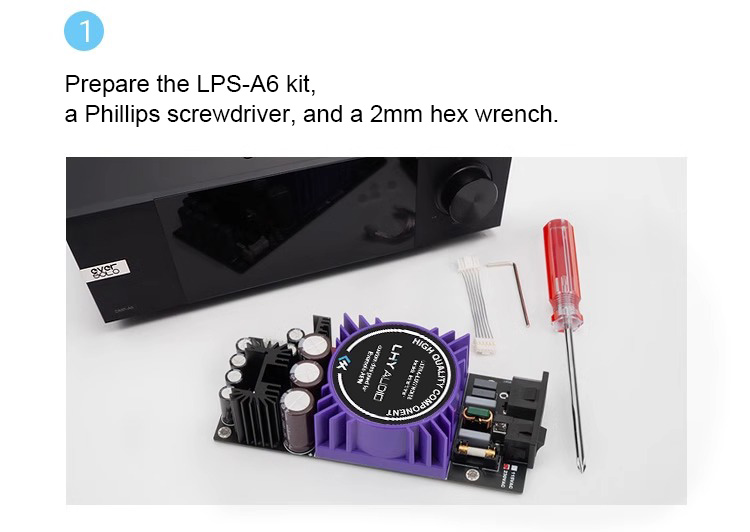

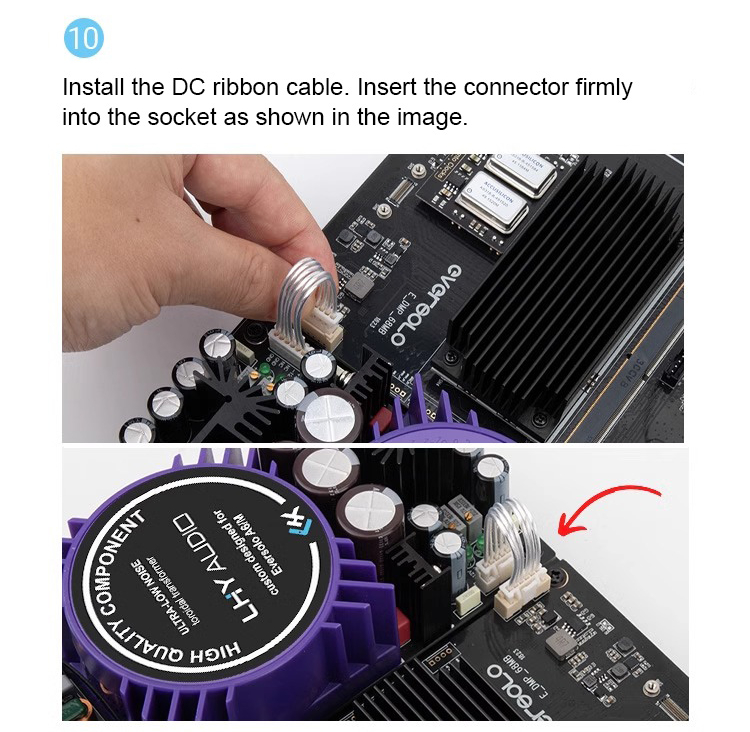

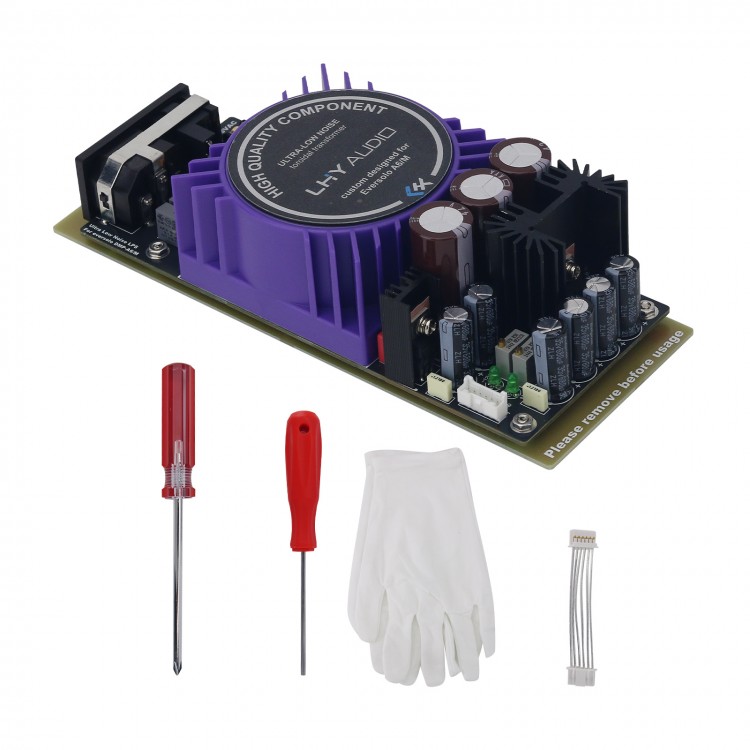

* Accessories: 6-pin ribbon cable, Phillips screwdriver, hex wrench, and gloves

Package Included:
* 1 x Set of linear power supply

Packaging Details:
* Weight: 1.5kg
