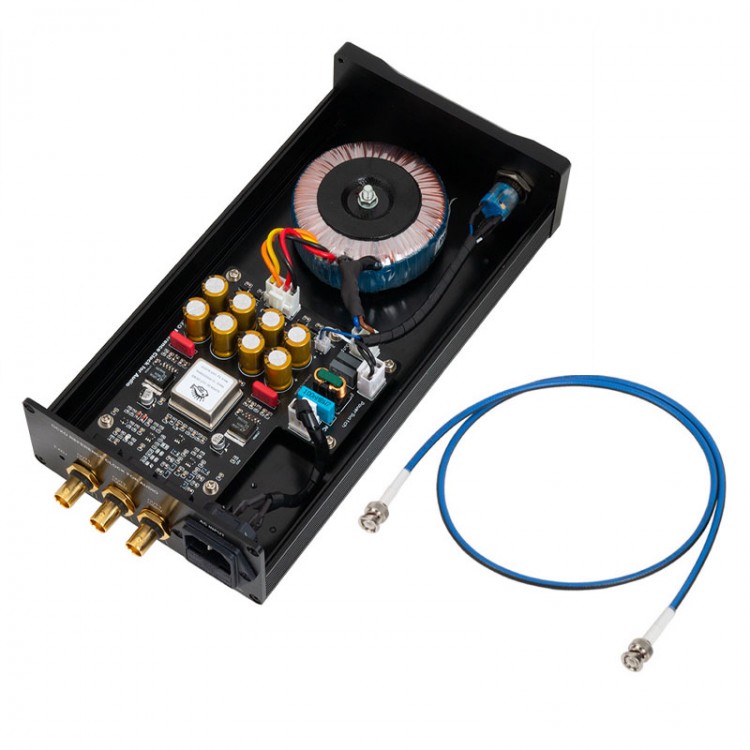

LHY AUDIO OCK-1 3-Port OCXO Reference Clock Clock Signal Generator with 50Ω Clock Cable for Audio

LHY AUDIO OCK-1 3-Port OCXO Reference Clock Clock Signal Generator with 50Ω Clock Cable for Audio

Description:
OCK-1 high-precision thermostatic clock
3ch 10MHz independent outputs. High accuracy and stability. Square wave + sine wave.

Support up to three 10MHz clock input devices
The OCK-1 is equipped with 3 clock signal interfaces on the back, which can provide up to three devices supporting 10MHz input at the same time, including USB DAC network player and SA-CD player. These devices can all be connected to the OCK-1 in parallel. Each set of circuits of the OCK-1 is isolated from the power section output to the staged buffer driver to prevent cross-interference and flicker when multiple devices are connected to the BNC interface. By adding a buffer driver to each circuit, the signal waveform is also less attenuated when all three sets of generated clock signals are shared. Therefore, each BNC interface output can provide an ultra-high accuracy 10MHz clock signal.

New User Experience
OCK-1 uses an ultra-low noise oscillation core for advanced signal generation, transmission, distribution and drive. Used with an audio system, it greatly enhances the user experience.

True low jitter design
Its SC-cut OCXO outperforms the traditional SPXO femtosecond crystal oscillator. Whether it is a CD player, a digital turntable, a decoder, or a clock, they play a decisive role in the sound system. These devices reflect more detail, realism on the spot, and more realistic instrument performance.

SC cut OCXO
High precision, low noise, low jitter, and low phase noise. Its performance is very stable.

Toroidal transformer for Noratel
Very low radiated magnetic field buzz and noise, high work efficiency, and abundant energy. Comply with EU environmental protection directives.

Multiple ultra-low noise linear power supply
Filter out grid interference, clean power supply, low noise, and make equipment power supply and signal transmission more stable. The low-noise LDO chip independently supplies power to the crystal oscillator, and independently supplies power to the output, without interfering with each other.

3x10MHz independent output
1ch square wave and 2ch sine waves. These three independent outputs do not interfere with each other.

Specifications:
- Item name: OCXO Clock Generator
- Model: OCK-1
- Output frequency: 10MHz
- Output accuracy: < ±300ppb
- Frequency stability: < ±50ppb
- Output amplitude: ≥ 7dbm at 50Rz
- Number of ports: 3CH (1-way square wave and 2-way sine wave)
- Output impedance: default 50Ω/75Ω
- Regulated power supply: LT1963
- Core clock: Imported OCXO
- Phase noise index: < -110dBc at 1Hz
- Shell type: aluminum alloy
- Optional voltage: 220~240VAC; 110V-120VAC
- Power consumption: < 15W
- Dimensions: 130 x 270 x 65mm/5.1 x 10.6 x 2.6" (WxDxH)
- Weight: 1.7kg/3.7lb

Package Included:
- 1 x OCK-1
- 1 x Power Cable
- 1 x 1M/3.3FT Clock Cable
