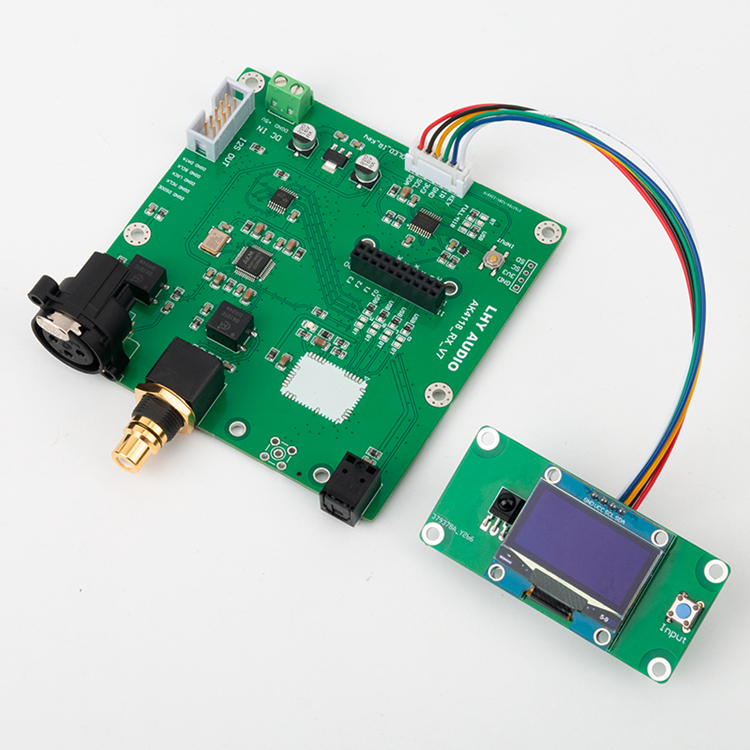

LHY Audio Receiver Board AK4118 Optical Coaxial AES Balanced Input to IIS Output + Display Board

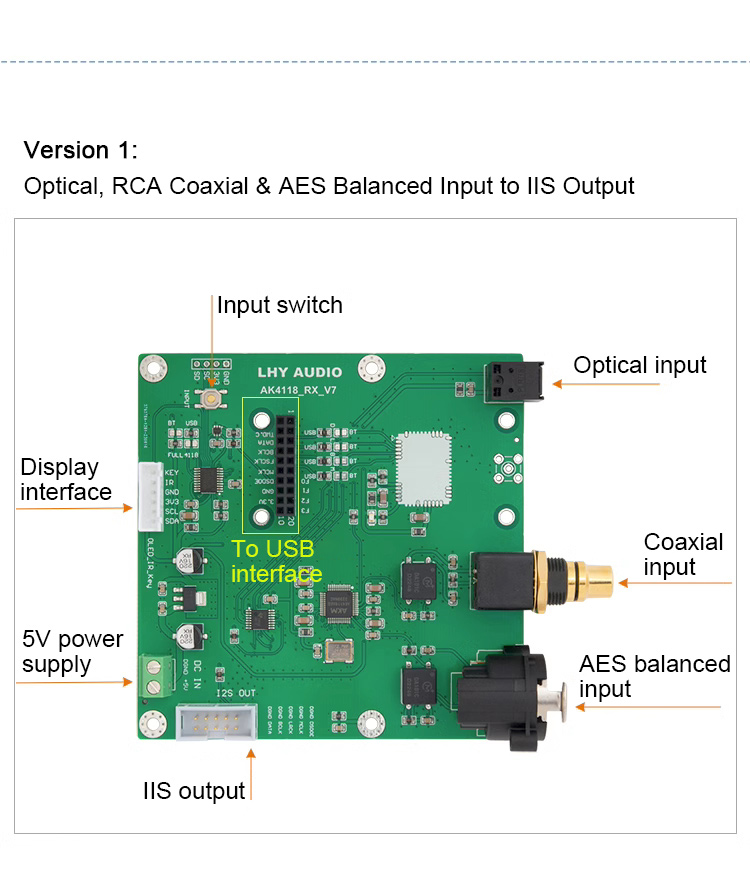

Coaxial Version (Version 1):
- Input signal: optical, RCA coaxial and AES balanced input
- Output signal: IIS
Description:
Using AK4118 audio special moderation chip, it can receive 24bit 192K data. The AK4118 is used for coaxial signal receiving with the lowest jitter in the industry. Fully optimized by MCU software control, its performance is much better than that of schemes, including WM8805, DIR9001 and CS8416.
The main function of this board is to convert digital audio SPDIF signal (RCA/optical/AES/EBU/Bluetooth) to IIS output. It also has an IIS input for XMOS USB modules and Amanero USB modules (China-made USB modules for Amanero). Used with a suitable DAC board, it can form a complete DAC decoder.
Features:
- It support 3-way digital audio signal input. Users can set 3-way input.
- It can be used with USB modules for XMOS and Amanero (China-made USB module for Amanero) to display sampling frequency.

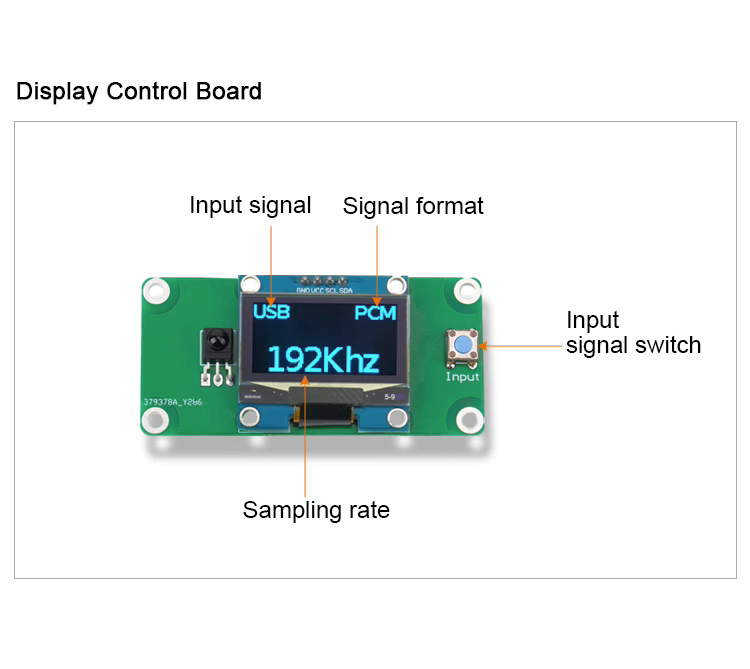

- OLED is used to display the working status.
- The dual-row 20-pin output connector is compatible with the USB output for Amanero.
- All settings can be saved automatically.
- Optical/coaxial/AES: 44.1kHz/48kHz/88.2kHz/96kHz/176.4kHz/192kHz.

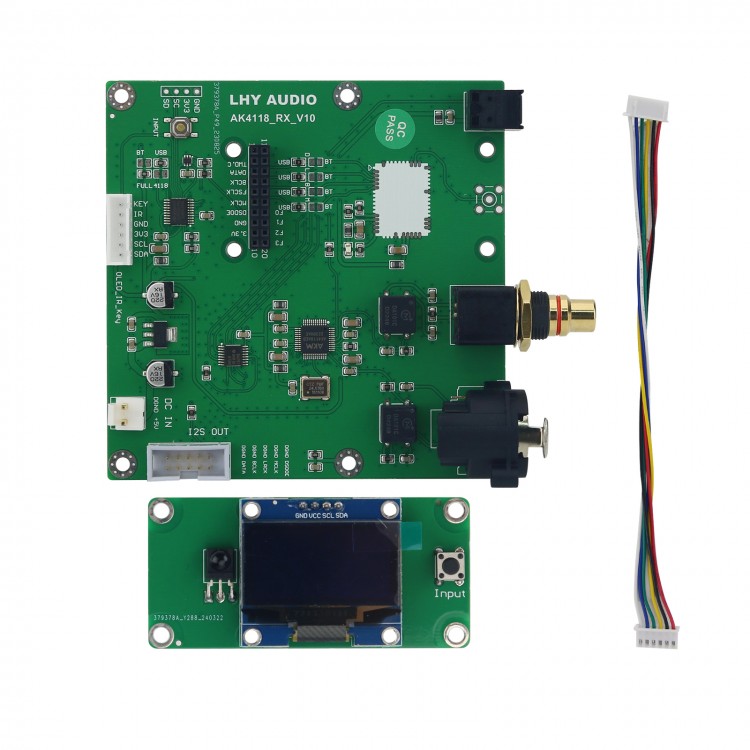

Package Included:
- 1 x Receiver Board
- 1 x Display Control Board
- 1 x Cable
