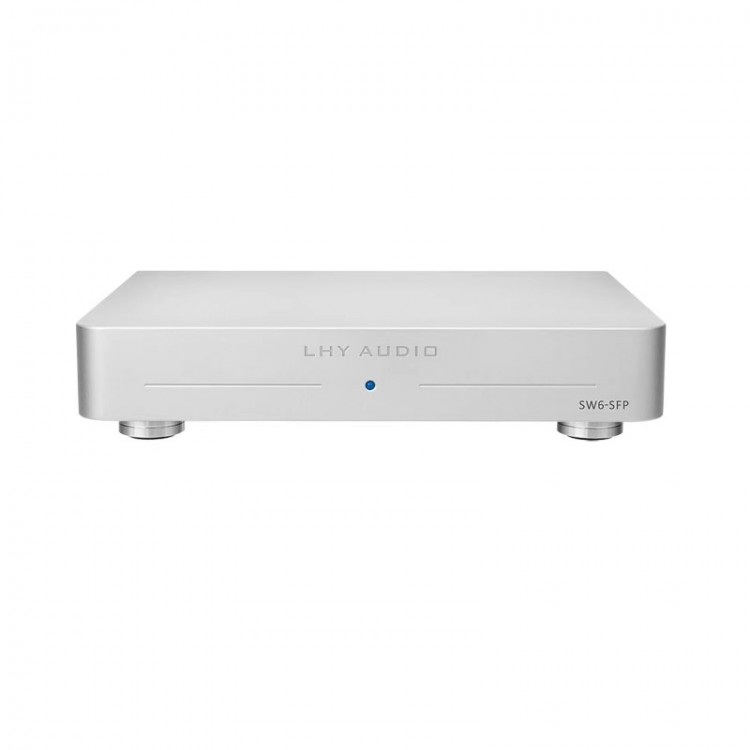

LHY Audio SW6-SFP 6-Port Hifi Switch Audio Ethernet Switch LPS Gigabit Switch for Audio (Silver)
Advantages:
uV-Level Power Supply
The SW6-SFP adopts a three-way independent LT3042 + PNP architecture to provide uV-level power to the OCXO and the mainboard. Compared to competitors using LT1963 or LT1764, it significantly reduces ripple noise.
ISOLATED Network Port with Independent Imported Transformer
All network ports of the SW6-SFP feature an isolated design. The ISOLATED port is equipped with an independent imported network transformer, enhancing isolation and greatly reducing interference.
Built-in Imported OCXO with Reference Clock Input
The SW6-SFP features a high-value imported OCXO, offering lower error, higher stability, and reduced phase noise. This enhances your streaming playback device by delivering more musical details, a more immersive live experience, and more realistic instrument performance. Additionally, if you already have a higher-grade reference clock, you can connect it to the SW6-SFP's external clock input port to further elevate its performance.
EMI AC Filtering, High-Speed Rectification Filtering & Large-Capacity Multi-Stage Filtering
Its built-in EMI AC filter effectively suppresses and eliminates AC power interference. The DC power section uses a capacitor matrix filtering circuit, ensuring a stable and clean power supply, delivering pure energy without compromise—even for complex and highly dynamic music.
Features:
Fiber Optic Isolation via SFP Connection
Two switches can be connected via SFP fiber optics, achieving optical isolation and effectively eliminating all electrical signal interference.
Highly Praised by Audiophiles
- Significant Sound Quality Improvement: The reduction of digital noise is evident, enhancing high and low-frequency clarity, soundstage depth, and overall tonal richness. When paired with a 10M reference clock, the listening experience improves even further.
- Noticeable Enhancement & Great Effect: Using three switches, especially the latest model, delivers an immediate and noticeable improvement in sound quality as soon as it is connected.
- Increased Clarity & Solid Sound Performance: The SW6-SFP with 6 ports significantly enhances overall audio performance, offering improved clarity and a more defined, structured soundstage.
- Exceptional Sound Quality & Cost-Performance Ratio: The ISOLATED and SFP ports deliver substantial audio improvements, competing impressively even against audio switches that cost 4-5 times more.
Audio HiFi Switch
The SW6-SFP is a HiFi-grade, 6-port gigabit Ethernet switch designed to enhance network performance by reducing signal noise. Errors in the network can lead to packet retransmissions and reduced efficiency. By minimizing and isolating circuit and power noise, along with a custom OCXO, the switch provides precise signals and significantly improves the sound quality of music streaming.
Premium Components
- Original transformer for Talema
- High-speed rectification filtering
- High-precision SC-cut OCXO
- CLC three-stage filtering
- Three-way independent LT3042 + PNP architecture providing uV-level power to the OCXO and mainboard
- EMI AC filtering
- Digital isolation transformer
Rich HiFi High-Performance Ports
- 1 x 10M clock input port
- 4 x RJ45 network ports
- 1 x ISOLATED network port
- 1 x SFP module port
Built-in 10M OCXO
The SW6-SFP is equipped with an imported SC-CUT OCXO, greatly improving clock accuracy and reducing jitter.
10M Clock Input Port
This switch features a 10M clock signal input. If you have a higher-level clock, you can connect it through the 10M input port and use your external clock.
RJ45 Network Ports
These interfaces support 100M/1000M adaptive link speeds. They are ideal for connecting your network audio players. They are for Roon NAA, Apple TV, and others.
ISOLATED Network Port
The specially isolated ISOLATED interface features a design with 100M/1000M adaptive link speeds, recommended for connecting your backbone network (e.g., router) and audio processing equipment.
SFP Interface
For advanced users, the SFP interface allows fiber optic single-mode/multi-mode connections, further enhancing sound quality.
Multi-Channel Independent µV-Level Power Supply
The three-way independent LT3042 + PNP architecture provides power to the OCXO and mainboard, reducing noise to the microvolt level and significantly lowering various noises and interferences on the board.
Aluminum Alloy Hollowed Enclosure
The aluminum alloy enclosure is hollowed out and separates different circuit functions, reducing interference and mechanical resonance.
Low Jitter, Stable Transmission & Significant Sound Quality Improvement
The SW6-SFP significantly reduces various noises and interferences on the board, allowing for more accurate soundstage positioning. After upgrading the switch, the audio system reveals more details, providing a more realistic live performance, more lifelike instrument expression, and a more pleasing overall sound.
Guaranteed Product Quality
Each unit undergoes rigorous testing to ensure product quality and performance. We use professional network testing instruments to check the network ports, ensuring they pass all tests. The OCXO clock is measured with a spectrum analyzer to guarantee signal purity.
Specifications:
- Port Quantity: RJ45 x 4, ISOLATED x 1, SFP interface x 1, BNC x 1
- Input Impedance: 50 Ohm/75 Ohm, 0dBm-20dBm
- CMOS Square Wave: 0.3V-3.3V; Sine Wave: 0.5-3.3V
- Port Speed: 10/100/1000M
- Regulated Power Supply: 3-channel LT3042+PNP
- Core Clock: Imported OCXO
- Enclosure Type: Full aluminum alloy machining
- Dimensions: 240mm x 175mm x 50mm (Width x Depth x Height)
- Weight: 2Kg
- Optional Voltage: 220~240VAC and 110~120VAC
- Power Consumption: 10W
- Fuse Specification: 5x20mm
Package Included:
- 1 x Hifi switch
- 1 x Power cable
Packaging Details:
- Weight: 3kg
Note:
- Optional voltages are 220~240VAC and 110~120VAC. Please specify the voltage you require when placing your order. Thank you!
